SX-EX36 is a 1080p HDMI over ethernet extender that uses H.264 compression technology to deliver HDMI, Bi-directional IR, RS232 to lengths of 120m over 100Mbps network. It supports one to one(Unitcast) / one to many (multicast) / many to many (multicast) /VLC Player
1.Can be connected through a network IP switch or point-to-point 2.Extends HDMI up to a distance of 120m over a single CAT cable 3.Supports unicast transmission over unmanaged networks 4.Supports multicast transmission for large managed networks 5.Supports up to 1080p 60Hz 6.1 x HDMI loop-out for integrating local displays 7.Supports PCM 2.0 channel audio 8.Supports IR, RS-232, Webgui, PC Tool, VLC Player control 9.HDCP 1.4 compliant with advanced EDID management 10.Supports managed 100BaseT or Gigabit network switches
Box Contents 1x SX-EX36-TX 1x SX-EX36-RX 2x Mounting ear 2x Mounting ear 1x IR emitter 1x IR emitter 1x IR receiver 1x IR receiver 1x Remote control 1x Remote control 1x 5V/1A DC Power Supply 1x 5V/1A DC Power Supply 1x 3-pin Phoenix connector 1x 3-pin Phoenix connector 1x CD User manual 1x CD User manual

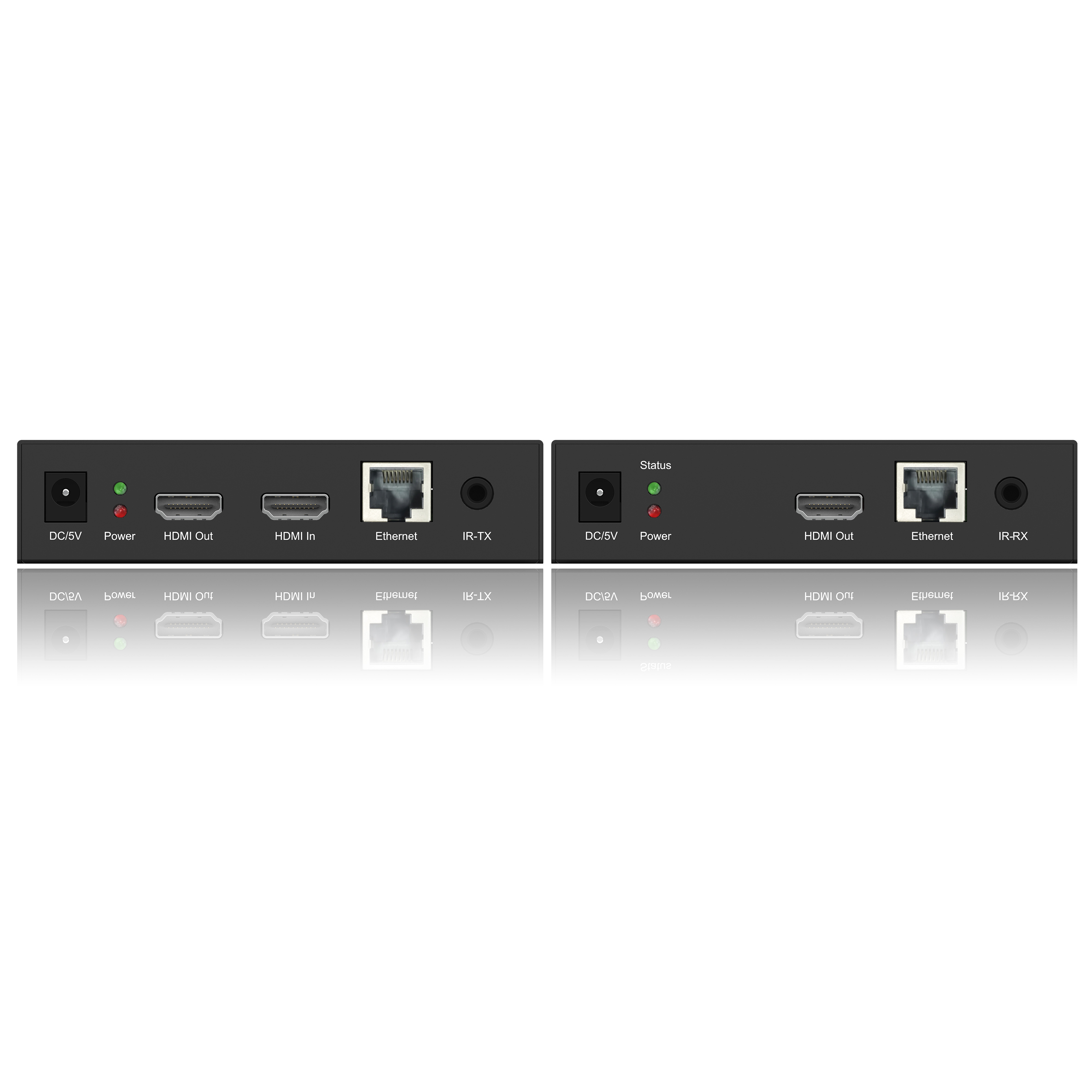

Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45
Video Output Connectors: 2 x HDMI Type A, 19-pin, female; 1 x LAN RJ45

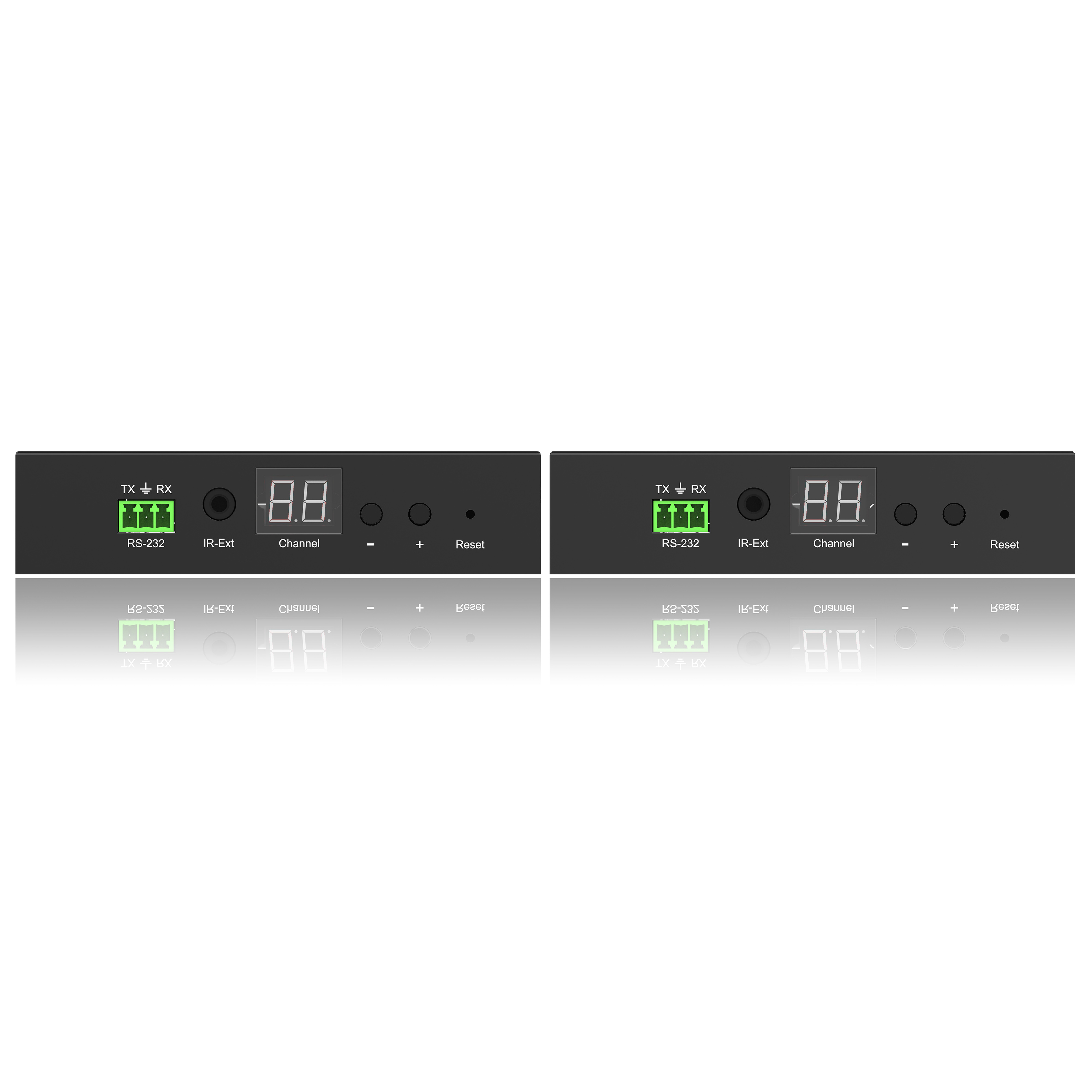

RS-232 Serial Port: 2 x 3-pin Phoenix connector
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Dimensions: 119x79.5x28mm
Shipping weight: 1.5kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 5V1A
Casing Materia: Iron
