SX-SMX46 is Seamless 4x4 HDMI Matrix with 2x2 video wall which can distributes any four sources to any of HDMI displays simultaneously with Zero delay and picture loss. It supports videowall upto 2 vertical and 2 horizontal monitors; It can display 4 pictures on the same screen and has multiple split display modes
1.4x HDMI Inputs which can be independently routed to 4 HDMI Outputs. No switching delay or picture loss during transitions 2.Support HDMI Out resolution upto 4K30HZ 4:4:4 3.Supports videowall upto 7 different modes with each monitor with 4Kresolution 4.It can display 4 pictures on the same screen and has multiple split display modes 5.Compliant HDCP 2.2 with EDID management 6.Support output downscale to 1080P/720P/2560*1440/1920*1200/1360*768 7.Control via panel button, Remote Control, RS232 Control, TCP/IP Control
8.3rd Party drivers available for major control brands Control4 9.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
Box Contents 1x SX-SMX46 2x Mounting ear 1x Remote Control 1x 12V/2A DC Power Supply

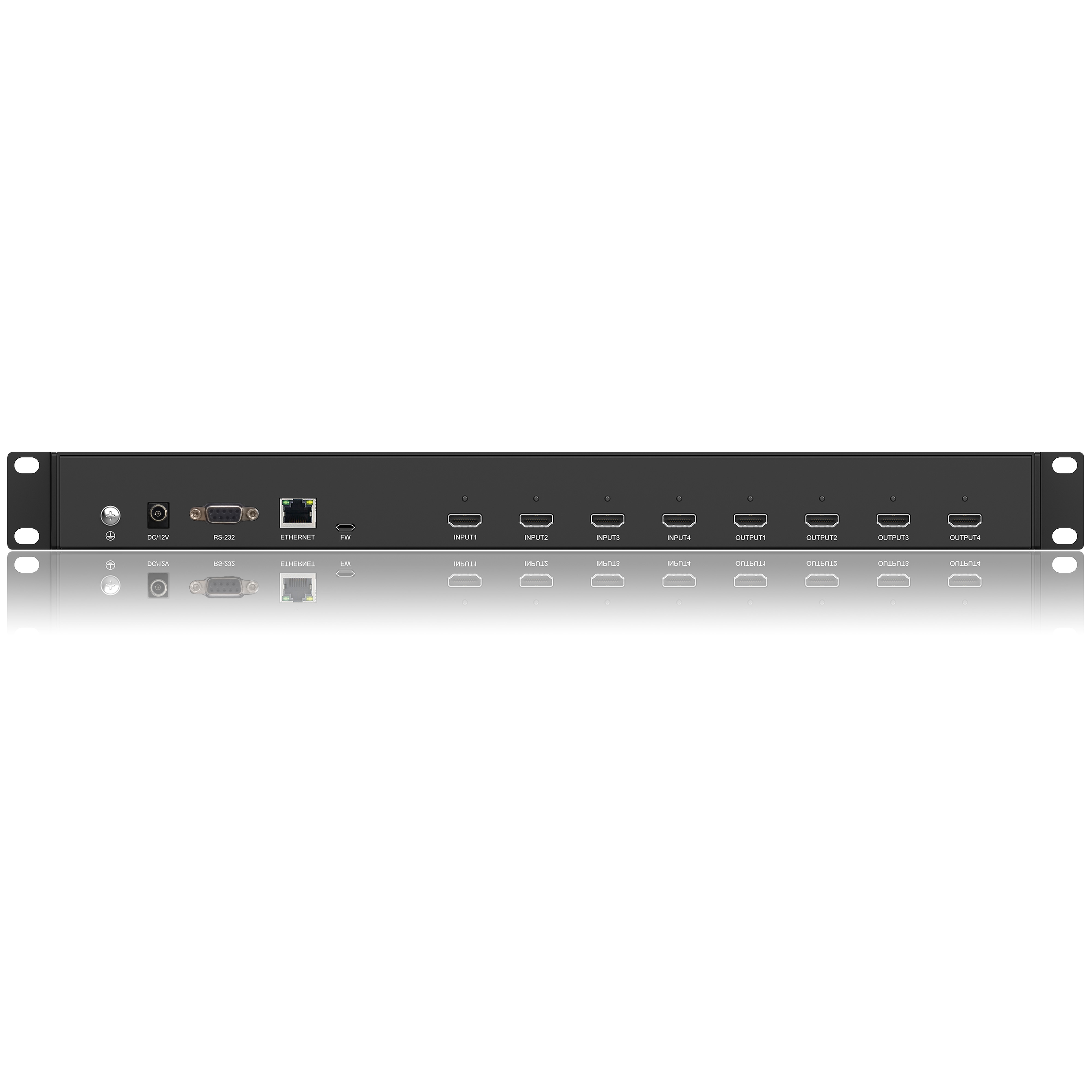

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 4 x HDMI Type A, 19-pin, female

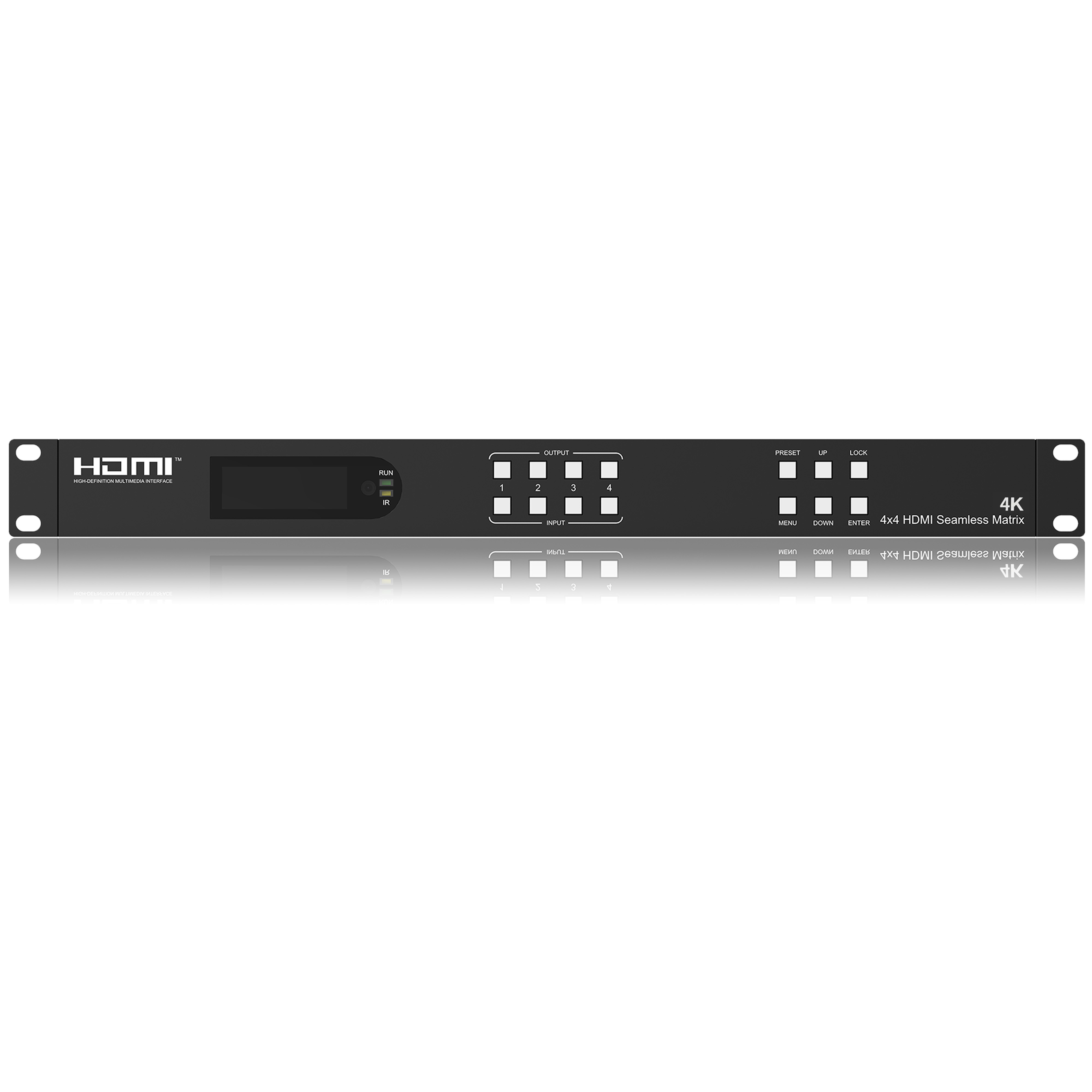

RS-232 Serial Port: 1 x DB-9 female
TCP/IP Control: 1 x RJ45, female
Dimensions: 438X205X44 mm
Shipping weight: 4kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V2A
Casing Materia: Iron
