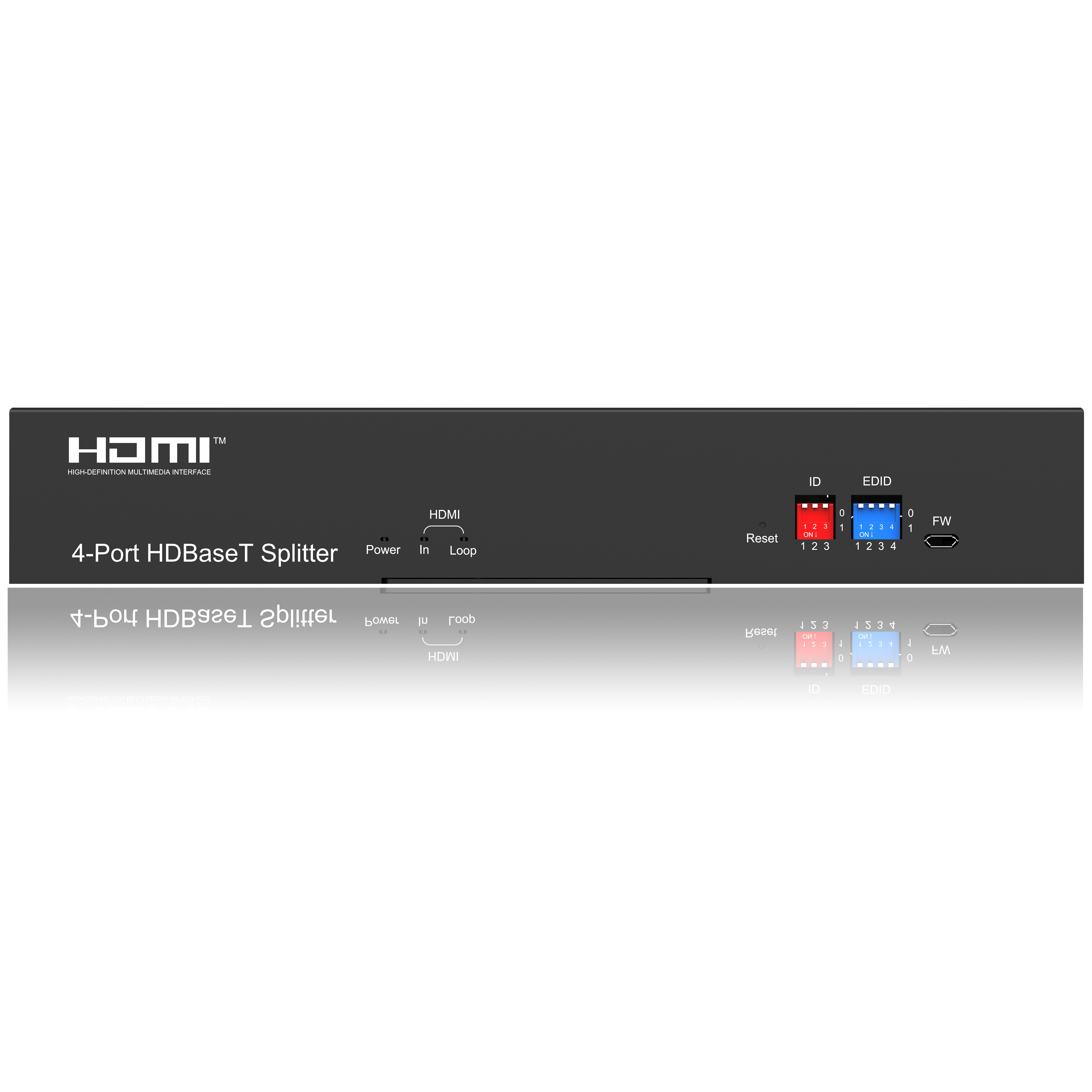

SX-SPH05 4 Ports HDMI/HDBaseT Splitter distributes a single HDMI Source to four simultaneous HDBaseT outputs. It supports18Gbps bandwidth, full HDMI 2.0 and HDCP 2.2 with video resolutions up to 4K @ 60Hz 4:4:4; HDR10 and Dobly Vision. Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling. It transmits HDMI, bi-directional IR and PoC up to lengths of 70m/230ft 1080P (40m/130ft 4K 60Hz 4:4:4) over a single CAT cable
1.Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable 2.1x HDMI Loop out & 1x RS232 Loop out for integrating local displays or cascading to multiple devices 3.Supports HDMI2.0 18Gbps,HDR10, 4k@60HZ 4:4:4 4.Support downscaler from 4K to 1080P 5.Extends HDMI 1080p up to a distance of 70m/230ft over single CAT cable 6.Extends HDMI 4K up to a distance of 40m/130ft over single CAT cable 7.Supports PoC (Power over Cable) to power compatible HDBaseT receivers 8.Supports Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
9.Supports HDCP2.2/1.4 Compliant 10.Advance EDID Management 11.Compatible with Foxun HDBaseT Receivers: SX-EX53-RX
Box Contents 1x SX-SPH05 2x 24V/2A DC Power Supply 1x IR emitter 1x IR receiver 2x Mounting ear 2x 3-pin Phoenix connector 1x CD for user manual

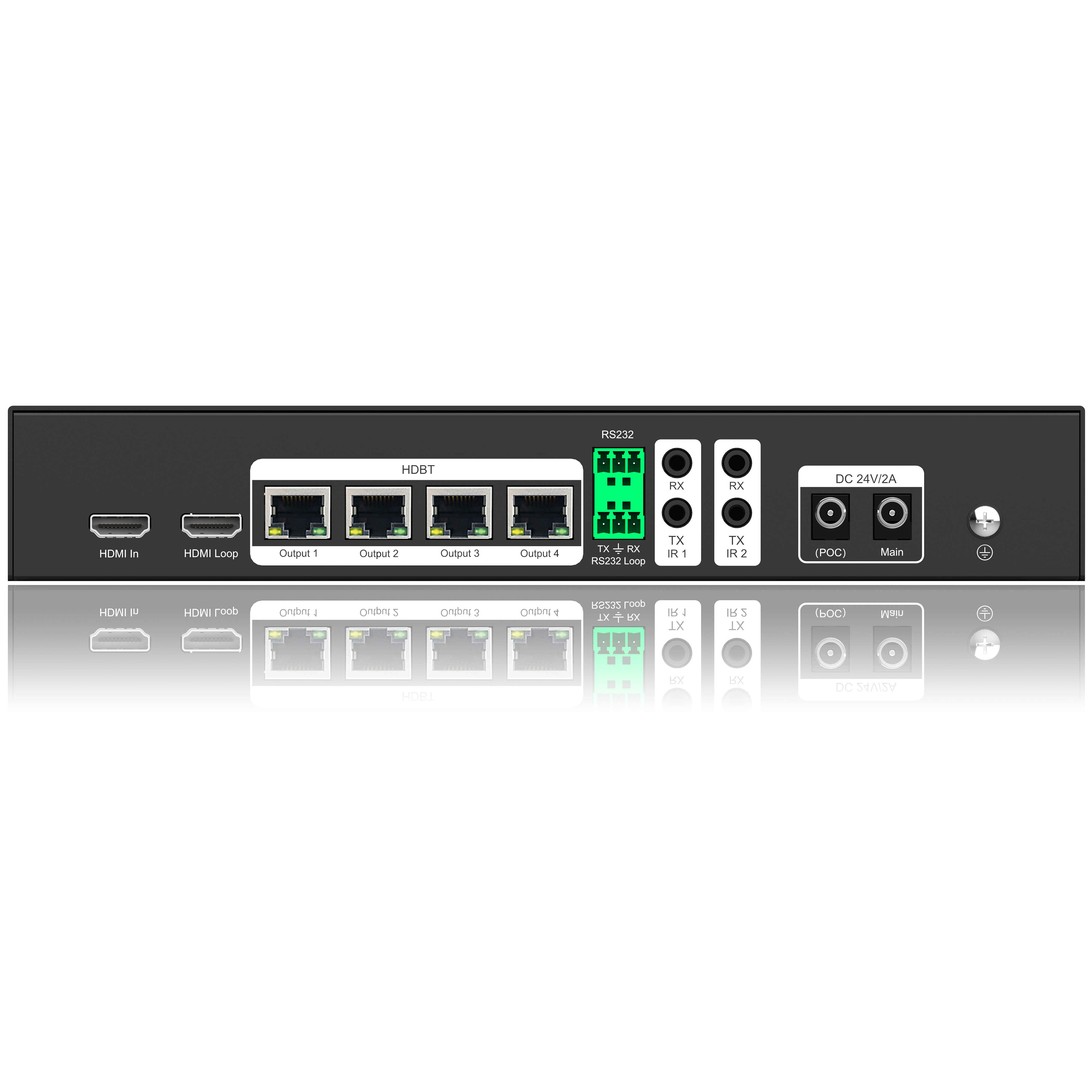

Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female ; 4 x HDBaseT™ RJ45 connector
RS-232 serial port: 2 x 3-pin Phoenix connector
IR Input ports: 2 x 3.5mm stereo jack
IR Output ports: 2 x 3.5mm mono jack
Dimensions: 270x190x44mm
Shipping weight: 2.7kg
Operating Temperature: -5 to +40℃(+23 to +104℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V2A
Casing Materia: Iron
