SX-EX57B is a 4K 18G HDMI over IP extender that uses visually lossloss compression techonlogy delivers HDMI,Bi-directional IR, RS232, USB/KVM, Audio up to lengths of 120m over 1GB network. It supports one to one(Unitcast) / one to many (multicast) / many to many (multicast) /Videowall。 It can support both video and Dante audio distribution from a single network.
1.Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension 2.Extends HDMI up to a distance of 120m over a single CAT cable 3.Supports 4K@60HZ 4:4:4 5.Input audio with SPDIF 5.1 and L/R Stereo analog Line mixed 6.Output audio with SPDIF 5.1 and L/R Stereo Analog audio extraction 7.Supports audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission 8.Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
9.HDCP 2.2 compliant with advanced EDID management 10.Support videowall with up to 8 vertical and 16 horizontal monitors 11.Supports IR, RS-232, Webgui, PC Tool control
Box Contents 1x SX-EX57B-TX 1x SX-EX57B-RX 2x Mounting ear 2x Mounting ear 2x IR Emitter 2x IR receiver 1x IR Extension 1x IR Extension 1x 12V/1A DC Power Supply 1x 12V/1A DC Power Supply 1x 3-pin Phoenix connector 1x 3-pin Phoenix connector 1x CD User Manual 1x CD User manual

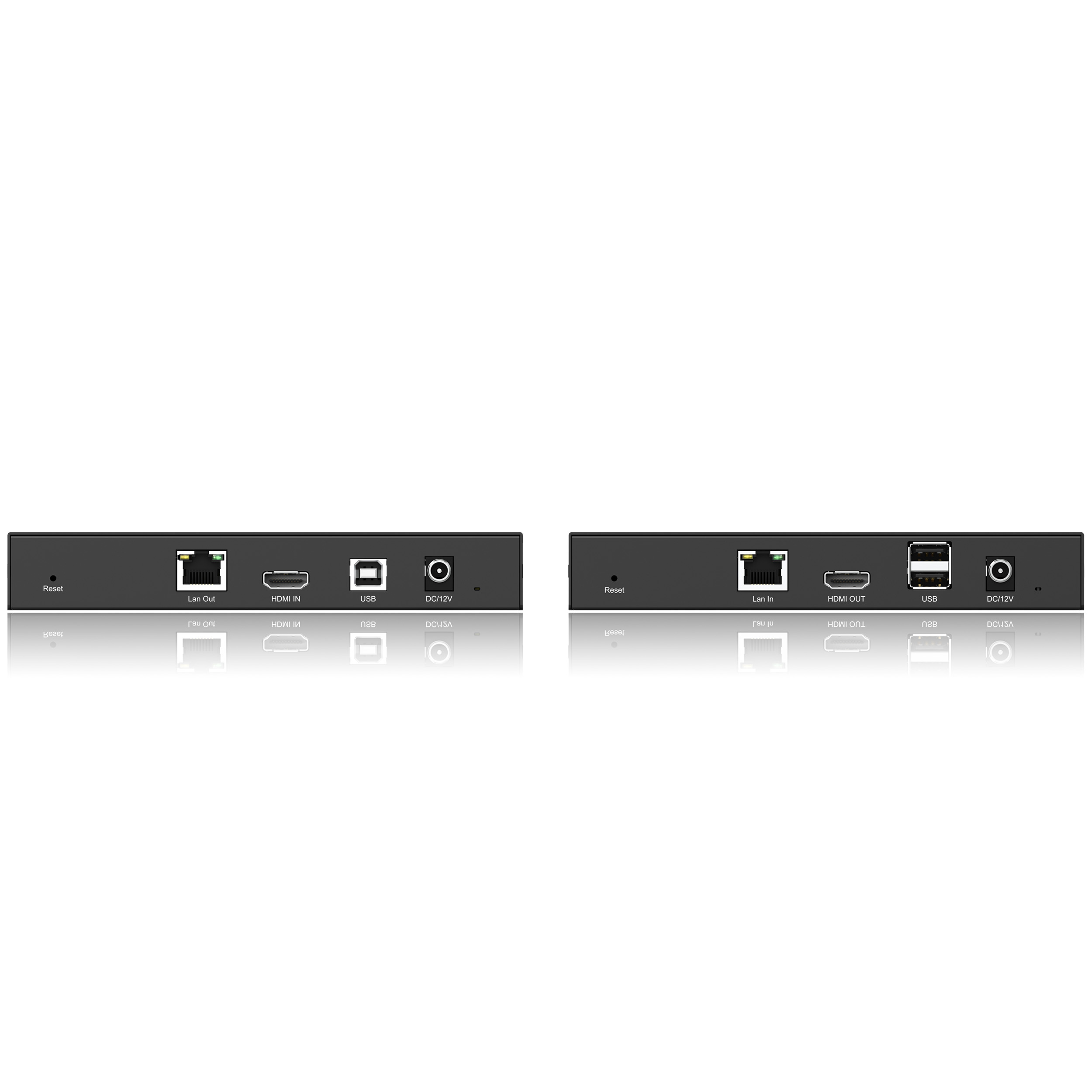

Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45
Video Output Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45

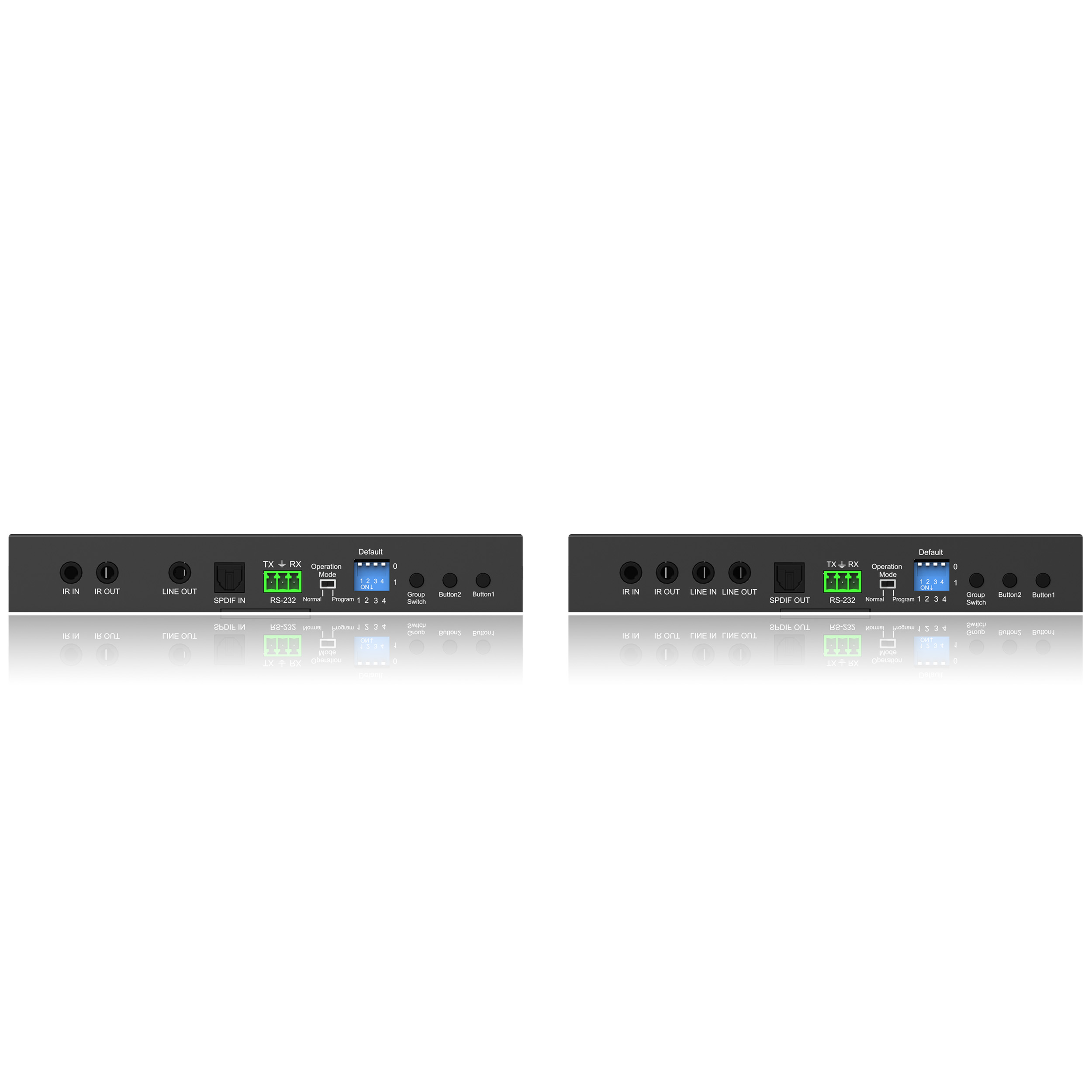

RS-232 Serial Port: 2 x 3-pin Phoenix connector
IR Input ports: 2x 3.5mm stereo jack
IR Output ports: 2x 3.5mm mono jack
USB/KVM Port: 1 x USB Type-B (Host), 2x USB Type-A
Audio Input Connectors: 1x TOSLINK; 1x 3.5mm L/R Stereo analog Line mixed
Audio Output Connectors: 1x TOSLINK;1x 3.5mm L/R Stereo analog Line mixed
Dimensions: 170x114x26mm
Operating Temperature: -5 to +35 ℃ （+23 to +95℉）
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V1A
Casing Materia: Iron
