SX-AC01 is a digital to analog audio converter (DAC) which convert either coaxial or toslink signals from a digital signal to analog stereo audio. It support HDMI ARC (Audio Return Channel) function and audio extract to digital and analog signal. It also supports SPDIF to Coaxial Bidirection Converter
1.Digital to Analog audio Converter converts either Toslink or coaxial digital to analogue stereo left / right audio output 2.Converts Toslink digital audio to coaxial and coaxial to Toslink 3.It support HDMI ARC (Audio Return Channel) function and audio extract to digital and analog signal.That means, when connected to HDMI ARC device,such as your TV with HDMI ARC port,audio will be return from TV and output to SPDIF,Coaxial,L+R RCA,3.5mm 4.Support digital audio output:DTS/Dolby-AC3/LPCM
5.Support analog audio PCM2.0,sampling rate 32-192KHZ,16~24bit 6.Support digital audio max CH5.1, 96KHZ,16~24Bb
Box Contents 1x SX-AC01 1x 5V/1A DC Power Supply 1x User manual
Audio Input Connectors: 1x Toslink; 1x Coaxial digital; 1x HDMI (ARC)

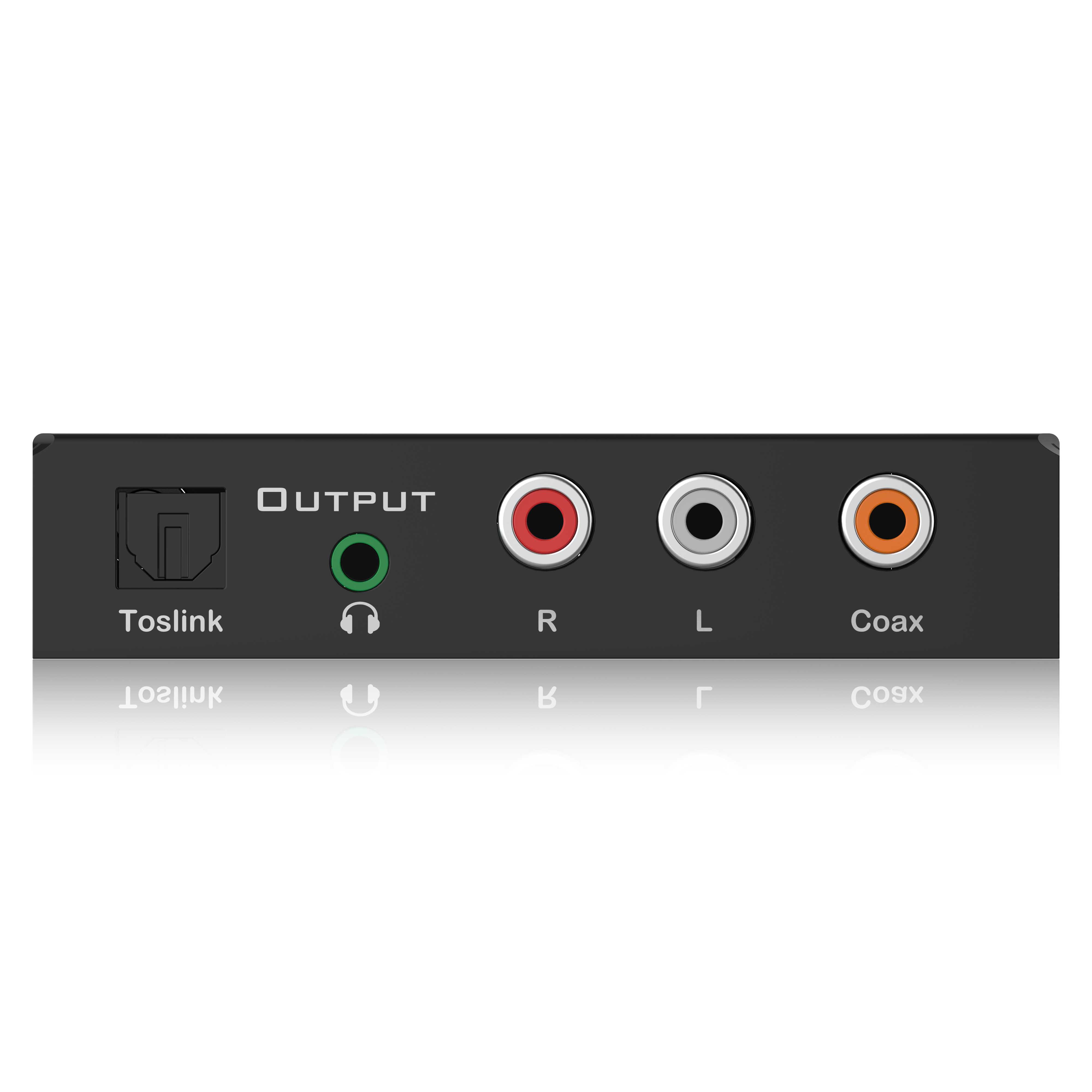

Audio Output Connectors: 1x Analogue 3.5mm stereo jack; 1x Coaxial digital ; 2 x RCA Stereo Analogue (L/R)
Dimensions: 96.2x47.6x21mm
Shipping weight: 0.3kg
Power Supply: 5V1A
Operating Temperature: -5 to +40°C (23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Casing Materia: Iron
