SX-HC01 is HDMI Audio extractor which extracts the audio signal from HDMI signal and sent to a 2-channel stereo analog (L/R) audio & digital S/PDIF audio.
1.Extracts high quality Stereo Analog audio & Digital S/PDIF (Toslink) audio from the incoming HDMI signal without losing any active audio *Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio 2.Supports HDMI Input & Output up to 4K @30Hz (YUV 4:4:4 8-bit) 3.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
4.Advanced EDID management : 2.0CH/5.1CH/By pass
Box Contents 1x SX-HC01 1x 5V/1A DC Power Supply 1x User manual

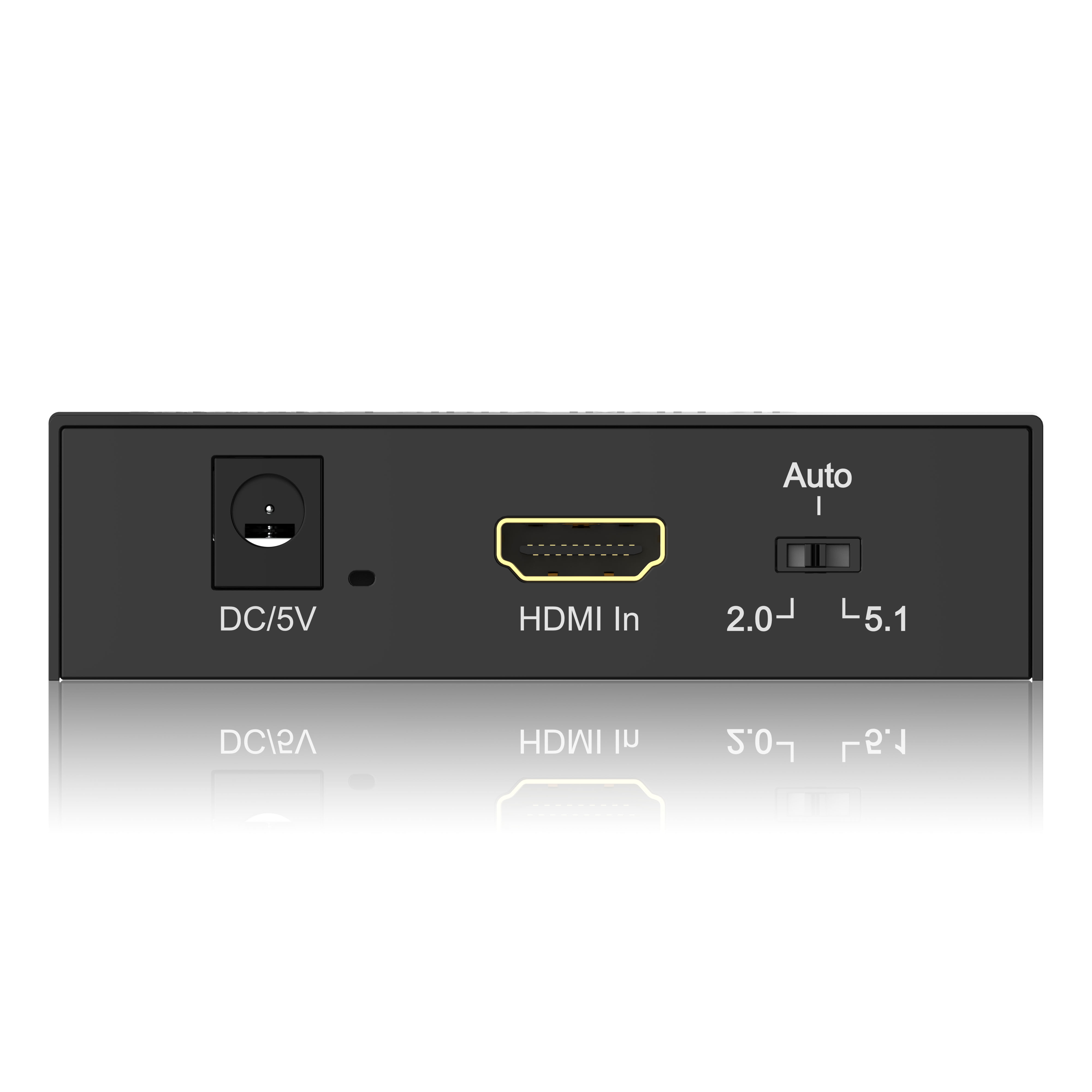

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

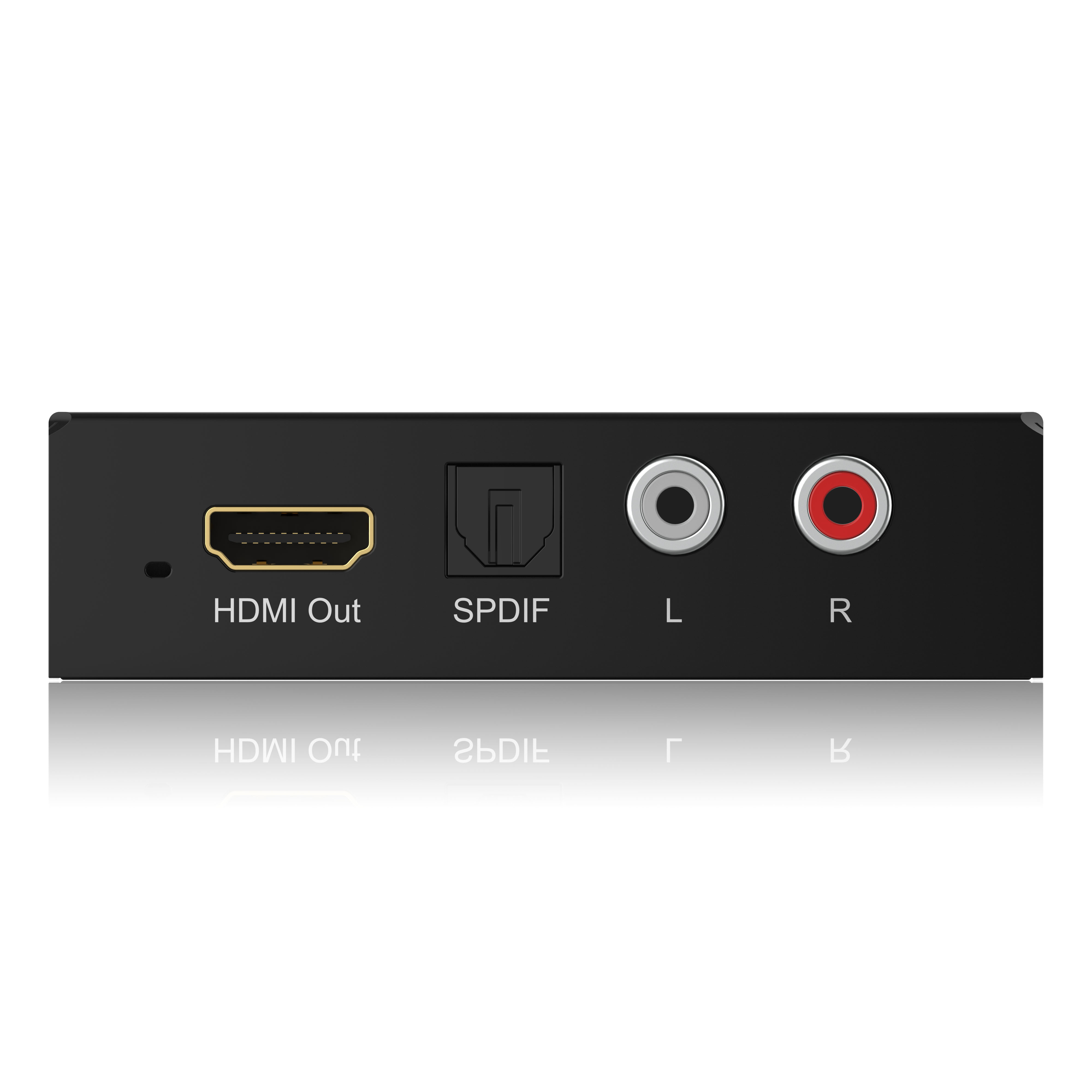

Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x SPDIF; 1x Coaxial (L/R)
Dimensions: 89.2x66.7x25mm
Shipping weight: 0.5kg
Power Supply: 5V1A
Operating Temperature: -5 to +40°C (23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Casing Materia: Iron
