1.Extracts high quality Stereo Analog audio & Digital S/PDIF (Toslink) audio from the incoming HDMI signal without losing any active audio

*Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio 2.Supports HDMI Input & Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 3.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

4.Supports CEC bypass (Consumer Electronics Control) 5.Advanced EDID management & HDCP2.2/1.4 Compliant

Box Contents 1x SX-HC03 1x 5V/1A DC Power Supply 1x User manual

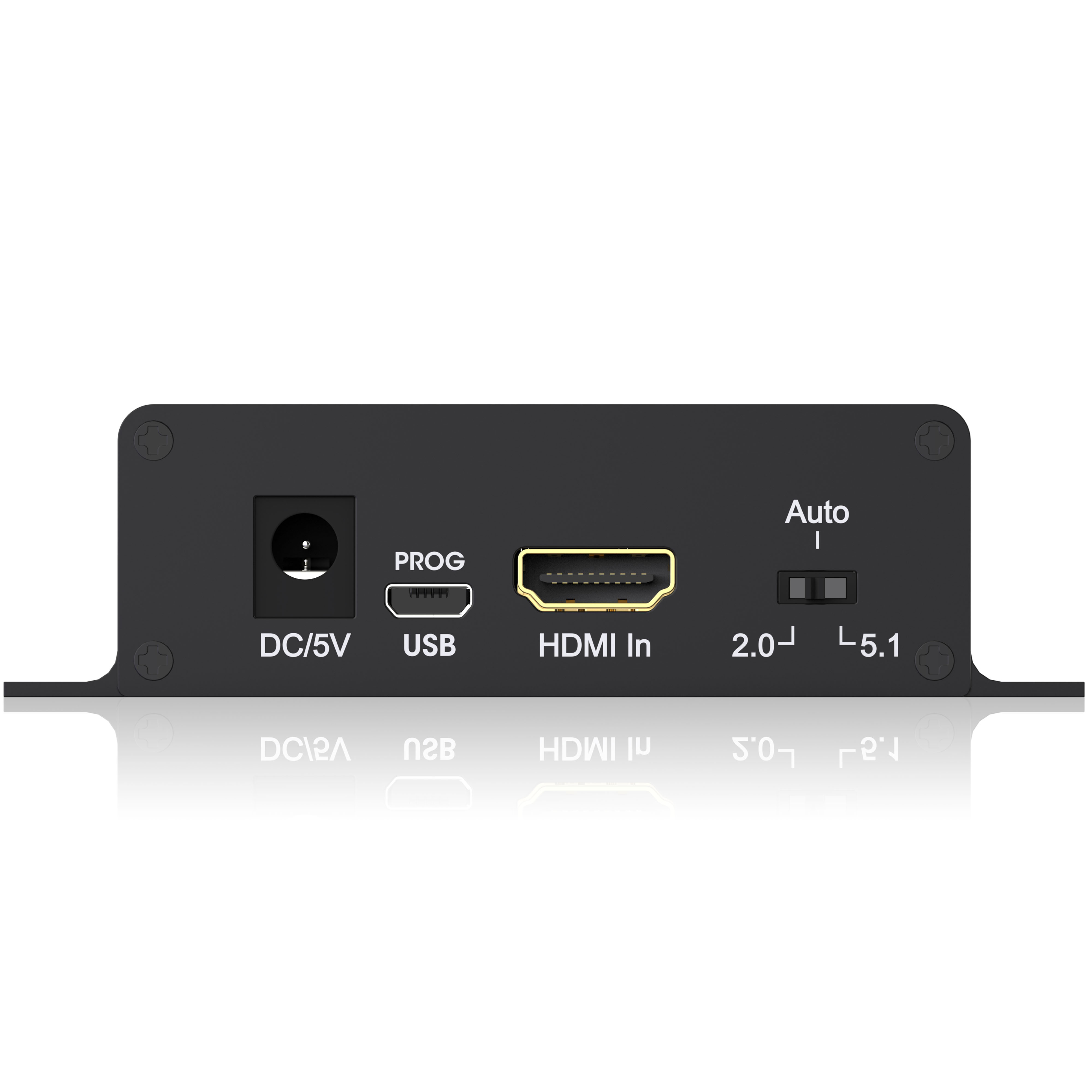

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

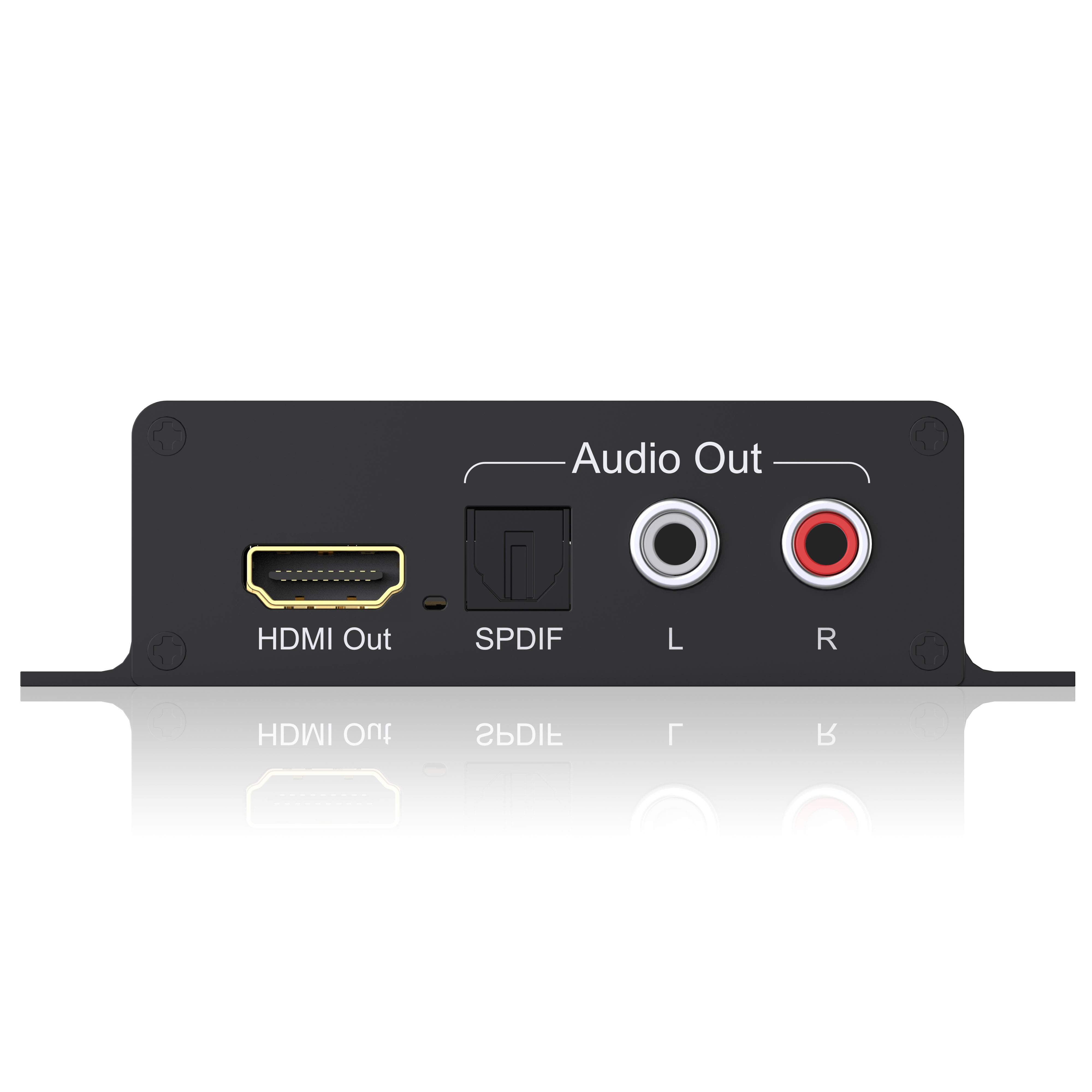

Video Output Connectors: 1 x HDMI Type A, 19-pin, female

Audio Output Connectors: 1x SPDIF; 1x Coaxial (L/R)

Dimensions: 104.4x64x28.3mm

Shipping weight: 0.5kg

Power Supply: 5V1A

Operating Temperature: -5 to +40°C (23 to +104 °F)

Operating Humidity: 5 to 90 % RH (no condensation)

Casing Materia: Iron
