SX-HC05 is HDMI Audio extractor which extracts the audio signal from HDMI signal and sent to a 2-channel stereo analog audio & digital S/PDIF audio.
1.Support one HDMI input, one HDMI output
2.Support Audio extraction,SPDIF(5.1CH)&Analog Audio PCM2.0 output 3.Support extract the digital HDMI audio signal from the HDMI input to 2 Channel analog stereo output or 5.1 channel audio output 4.Support HDMI Input & Output up to 8K @60Hz (YUV 4:2:0 10-bit), Bandwidth 40Gbps
5. HDCP2.2/1.4 compliance
6.Support CEC
Box Contents 1x SX-HC05 1x 5V/1A DC Power Supply 1x User manual

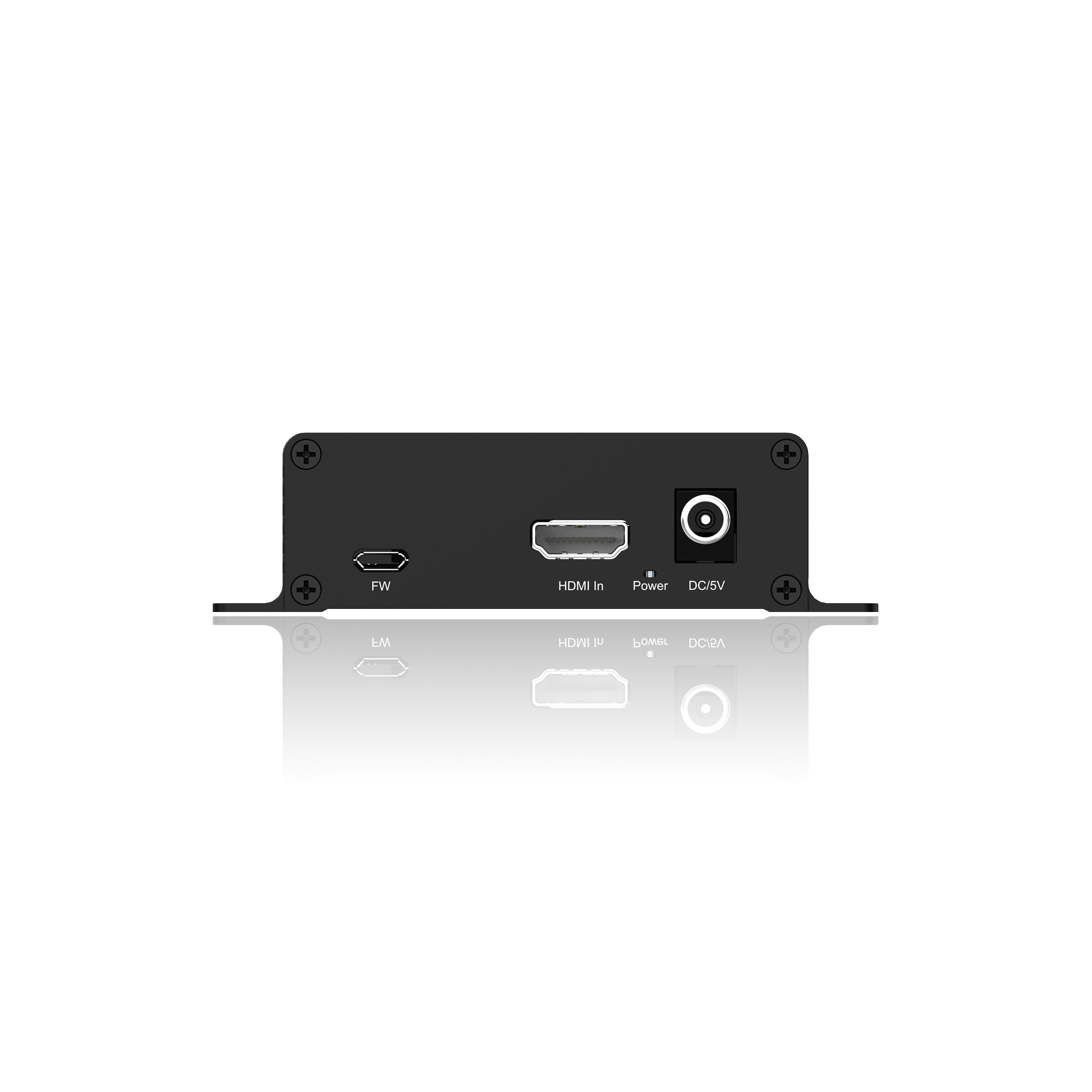

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

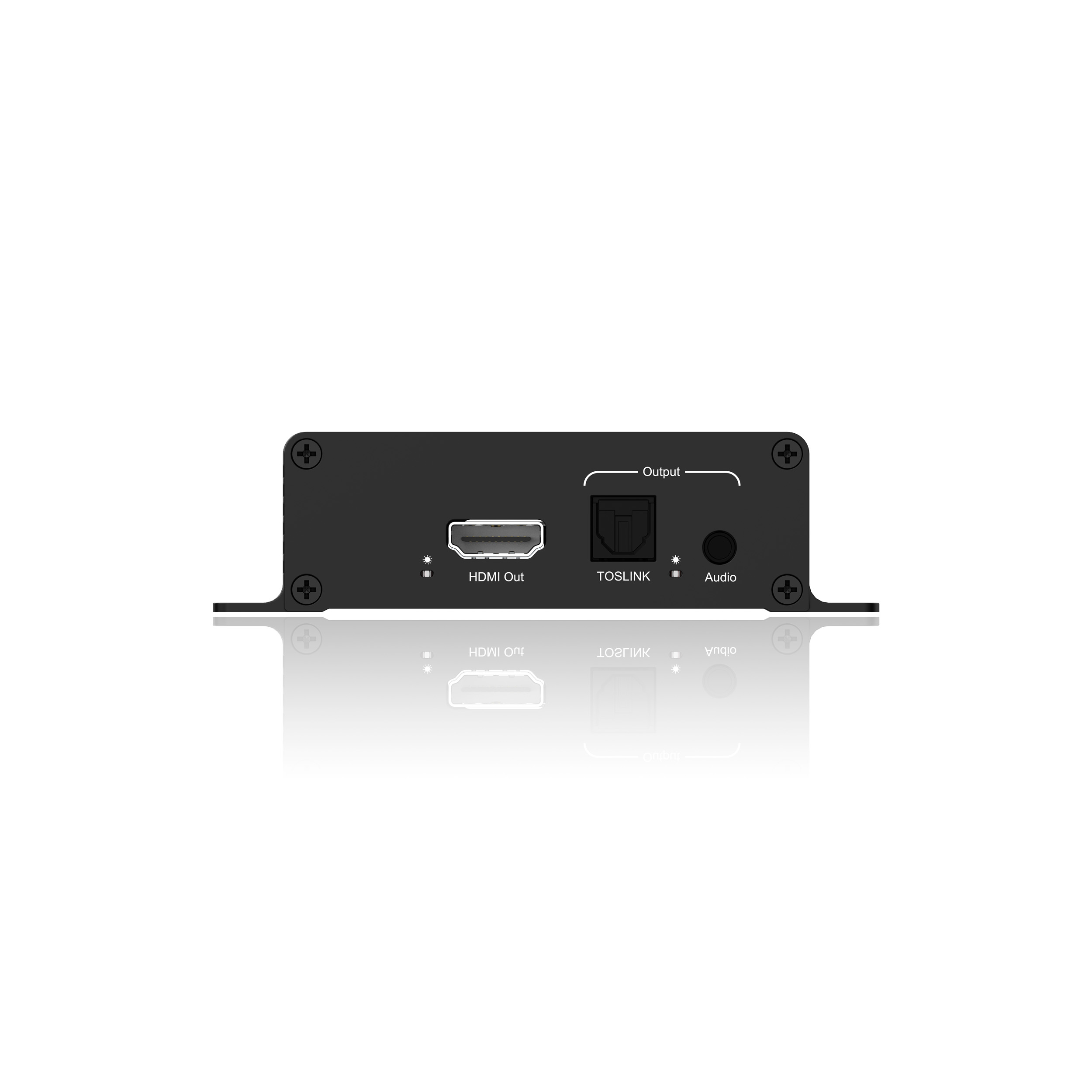

Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x SPDIF; 1x 3.5mm stereo jack
Dimensions: 104.4x86x28.3mm
Power Supply: 5V1A
Operating Temperature: -5 to +40°C (23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Casing Materia: Iron
