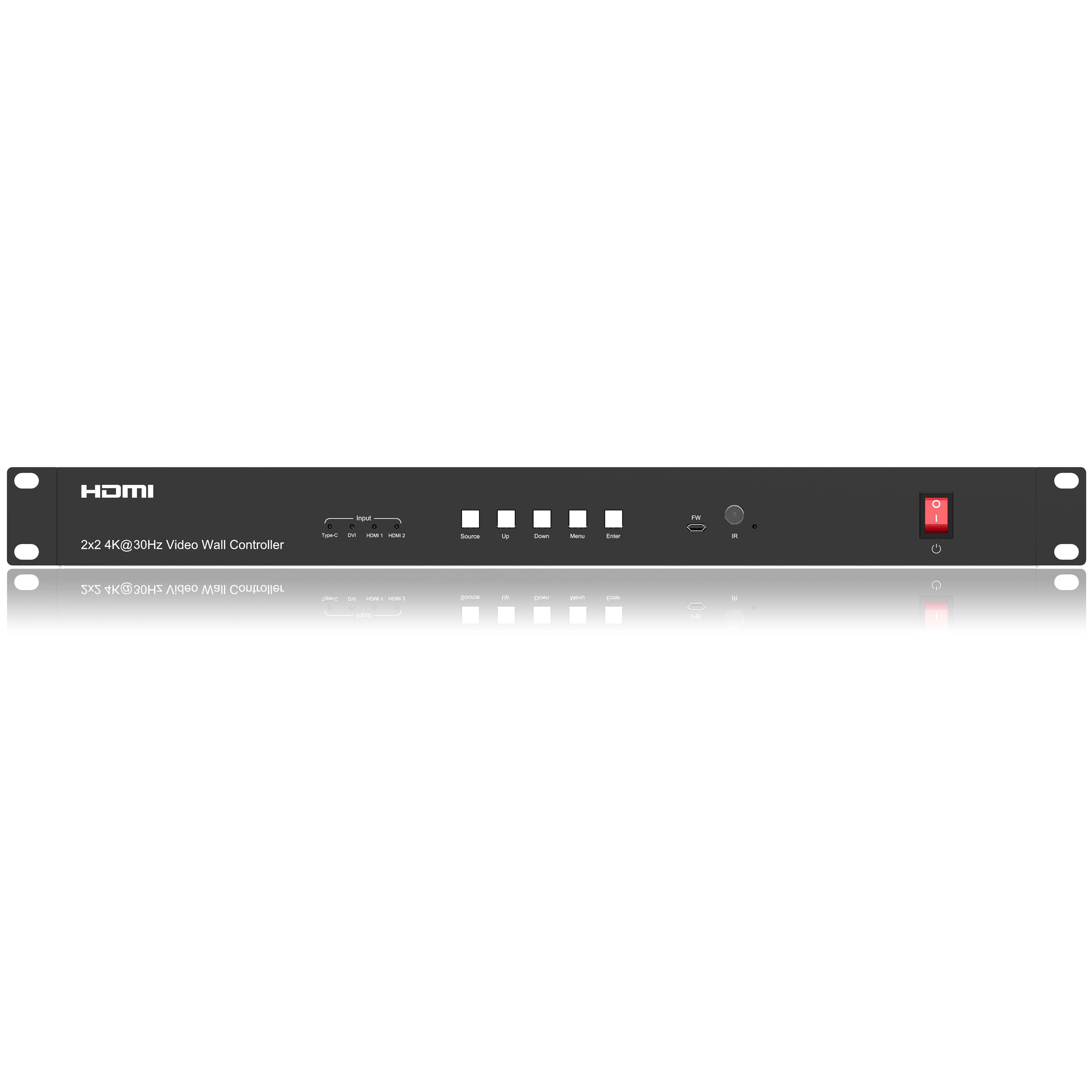

SX-VW02B is 4K videowall controller which create a 2x2 videwall from one of four sources: Type-C, DVI and 2x HDMI. Cascading up to max 10x10 videowall. It support resolution up to 4K@30HZ and Audio extraction
1.1x Type-c/DVI, 2x HDMI input to split 4x HDMI Outputs 2.Support resolution up to 4K30HZ 4:4:4 with 2 default EDID options: 4K &1080p 3.DVI Input support resolution upto 1900X1200 4.Support 4K 2x2 video wall, cascading to create 2x3,3x4 and max 10x10 video wall 5.Support HDCP2.2/1.4 compliant 6.Support panel button; IR remote; RS232 command and Web GUI to control 7.Support SPDIF and Analog audio extraction
8.Support third-party platform control via RS232 port or Lan
Box Contents 1x SX-VW02B 2x Mounting ear 1x 12V/2A DC Power Supply 1x Remote Control 1x CD User manual

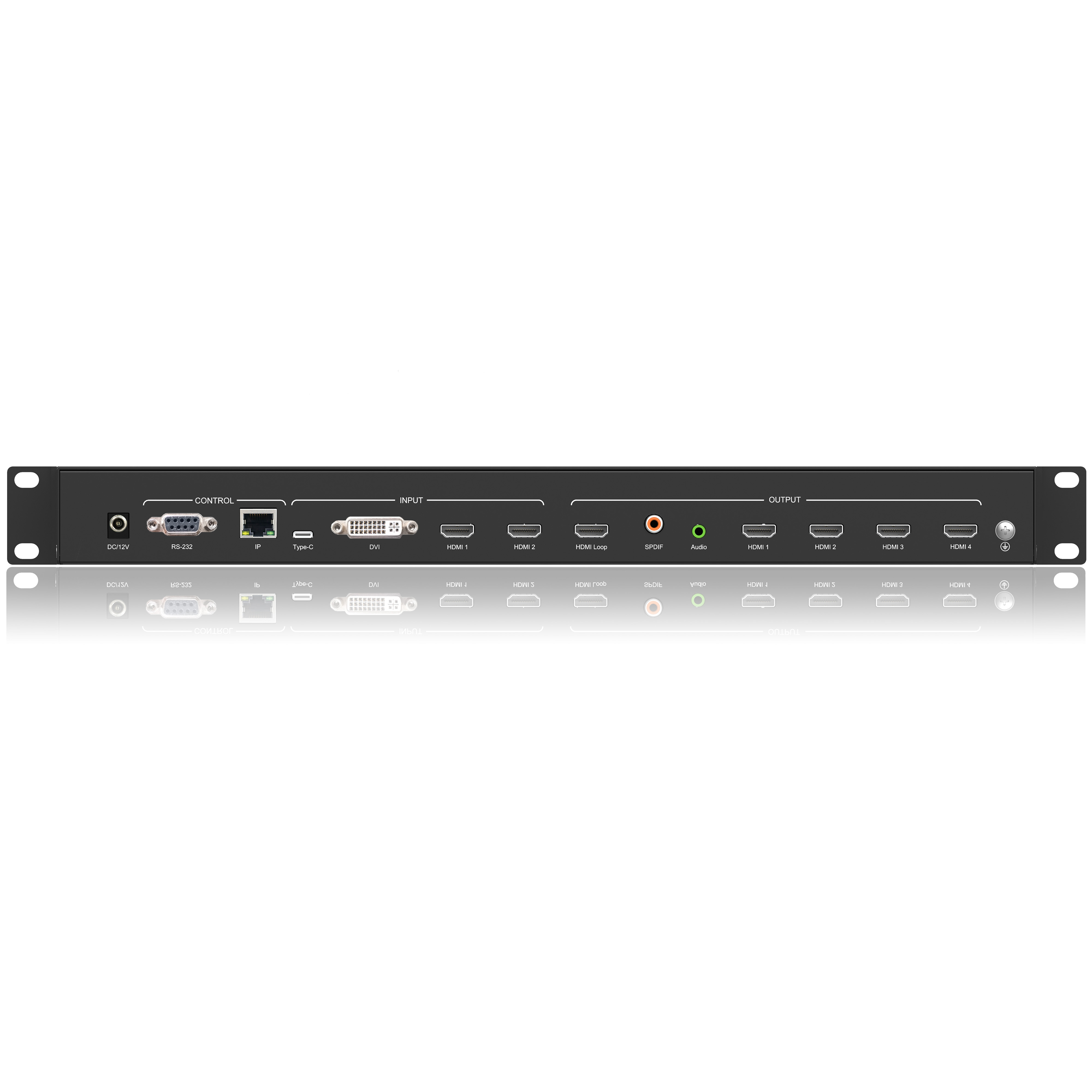

Video Input Connectors: 1x Type-c; 1x DVI, 2x HDMI Type A, 19-pin, female
Video Output Connectors: 5 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x SPDIF; 1x 3.5mm stereo jack
RS-232 serial port: 1 x DB-9 female
TCP/IP Control: 1 x RJ45, female
Dimensions: 438X190X44 mm
Shipping weight: 3.5kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 12V2A
Casing Materia: Iron
