1.1x Type-c/VGA/DP/HDMI input to split 9x HDMI Outputs 2.Support resolution up to 4K30HZ 4:4:4 with 2 default EDID options: 4K &1080p 3.Support 4K 3x3 video wall, cascading to create 3x4,4x5, 5X6,and max 10x10 video wall 4.Support HDCP2.2/1.4 compliant 5.Support panel button; IR remote; RS232 command and Web GUI to control 6.Support SPDIF and Analog audio extraction 7.Support third-party platform control via RS232 port or Lan

Box Contents 1x SX-VW03 2x Mounting ear 1x 24V/2A DC Power Suppy 1x Remote Control 1x CD user manual

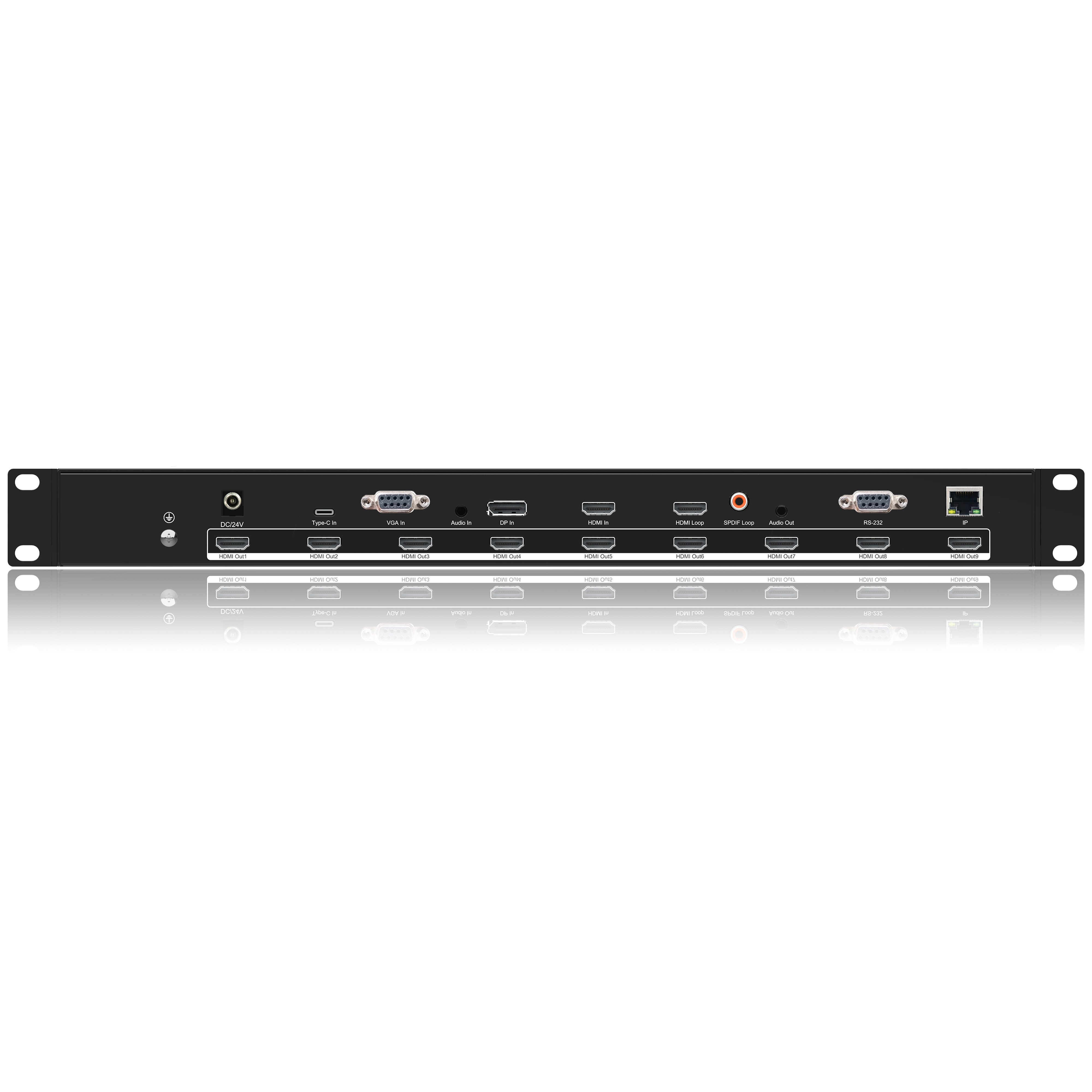

Video Input Connectors: 1 x HDMI; 1x Type-C; 1x DP; 1x VGA

Video Output Connectors: 10 x HDMI Type A, 19-pin, female

Audio Output Connectors: 1x SPDIF; 1x analogue 3.5 mm stereo jack

RS-232 serial port: 1 x DB-9 female

TCP/IP Control: 1 x RJ45, female

Dimensions: 438x 274x 44 mm

Shipping weight: 5.5kg

Operating Temperature: -5 to +40°C(23 to +104 °F)

Operating Humidity: 5 to 90%RH (No Condensation)

Power Supply: 24V2A

Casing Materia: Iron
