SX-HSD1B is a HDMI to SDI output converter which convert HDMI signals to SDI pure digital format in 1080p. Auto format detection for 3G-SDI, HD-SDI and SD-SDI. **NOTE: This is not a bi-directional converter. DO NOT use for SDI ⟶ HDMI conversion
1.Convert HDMI to SD/HD/3G-SDI 2.Distributes 1 HDMI source to 2 SD/HD/3G-SDI output simultaneously 3.Support HDMI input resolutions:1080p (50/60/59.94/30/29.97/25/24/23.98Hz),1080i (60/59.94/50Hz), 720p (60/59.94/50Hz), 480i (60/59.94HZ) 4.Work with SDI to HDMI converter to cascade many layers
5.Support transmission distance up to 100m over RG59 cable
Box Contents 1x SX-HSD1B 1x 5V/1A DC Power Supply 1x User manual

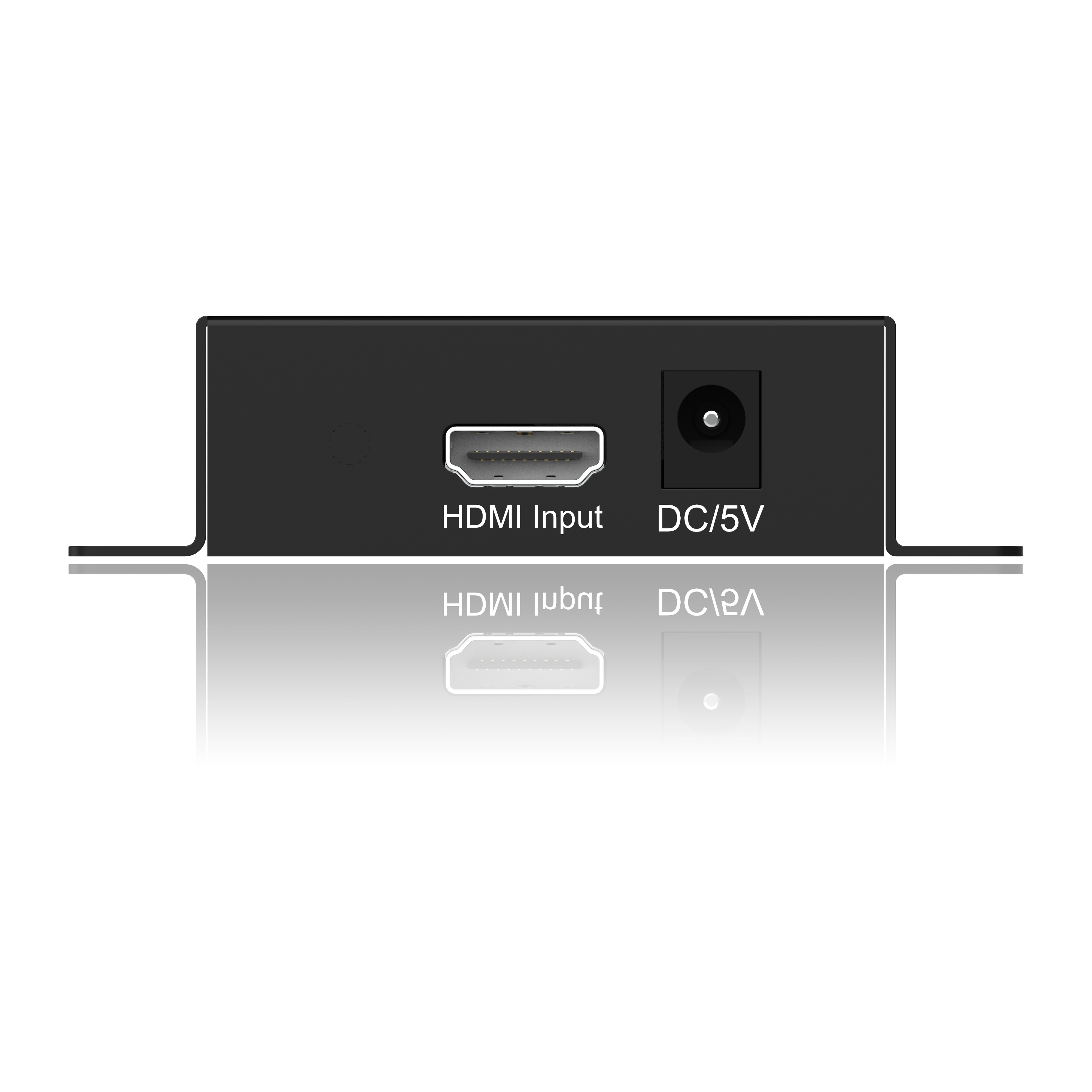

Video Input Connectors: 1x HDMI (Standard Type A connector)

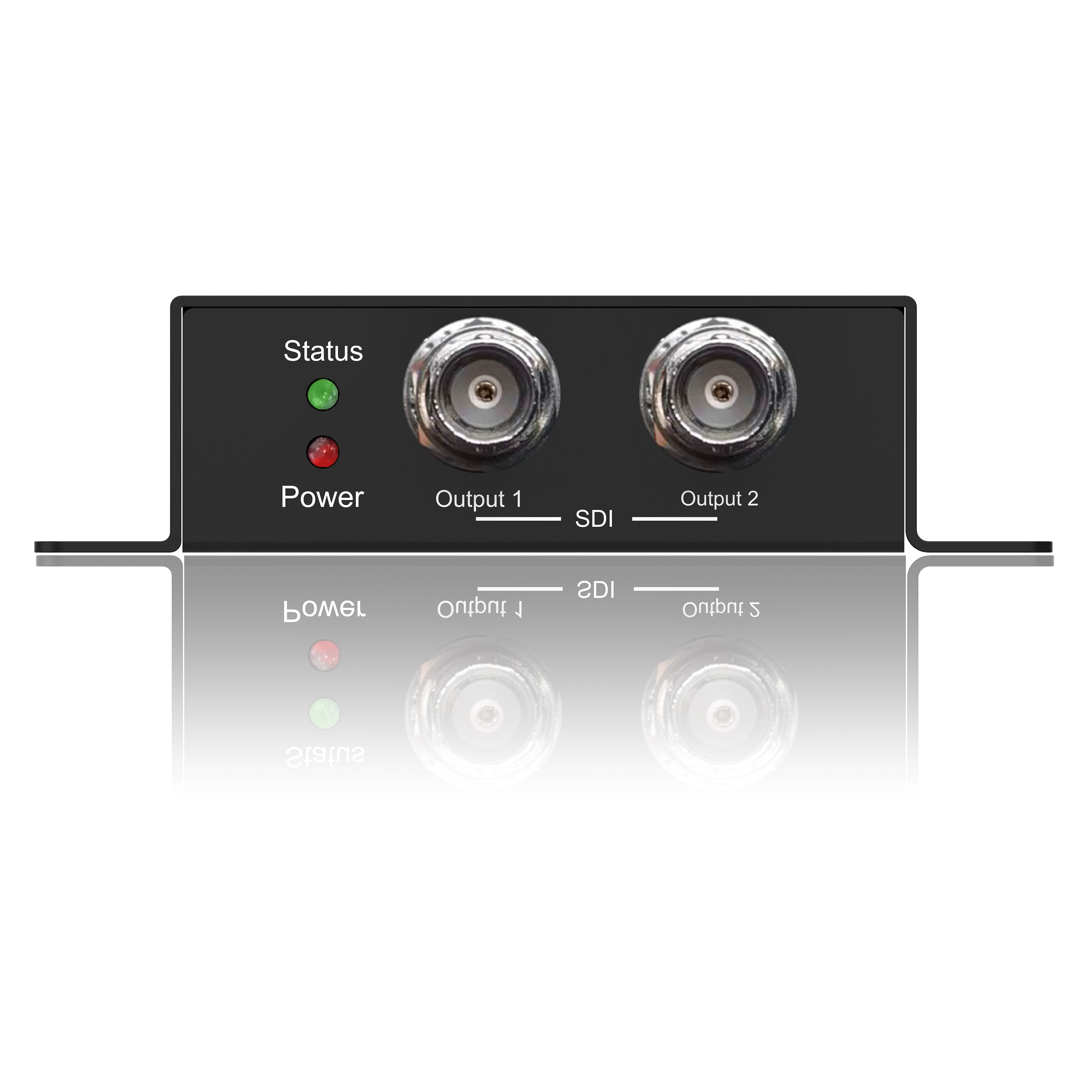

Video Output Connectors: 2x SDI(BNC)
Dimensions: 95x95x29mm
Shipping weight: 0.6kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Power Supply: 5V1A
Casing Materia: Iron
