SX-SDH1B is a SDI to HDMI output converter which convert pure digital SDI signals to HDMI in 1080p. Auto format detection for 3G-SDI, HD-SDI and SD-SDI. **NOTE: This is not a bi-directional converter. DO NOT use for HDMI ⟶ SDI conversion
1.Convert SD/HD/3G-SDI to HDMI 2.Distribute 1 SD/HD/3G SDI to 1 HDMI plus 1 looping SDI output simultaneously 3.Support SDI input resolutions:1080p (50/60/59.94/30/29.97/25/24/23.98Hz),1080i (60/59.94/50Hz), 720p (60/59.94/50Hz), 576i (50Hz), 480i (60/59.94Hz) 4.Work with HDMI to SDI converter to cascade many layers
5.Support transmission distance up to 100m over RG59 cable
Box Contents 1x SX-SDH1B 1x 5V/1A DC Power Supply 1x User manual

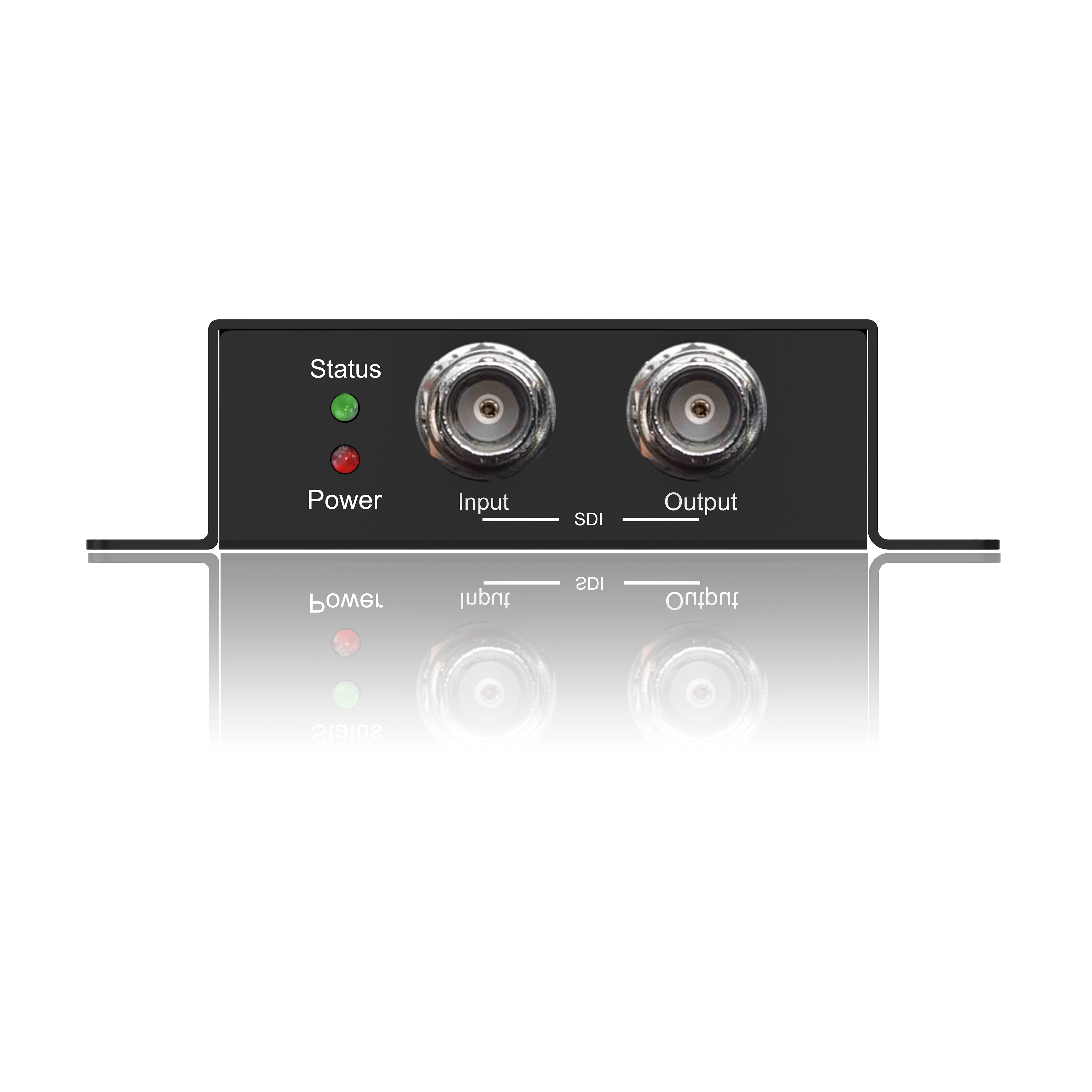

Video Input Connectors: 1x SDI(BNC)

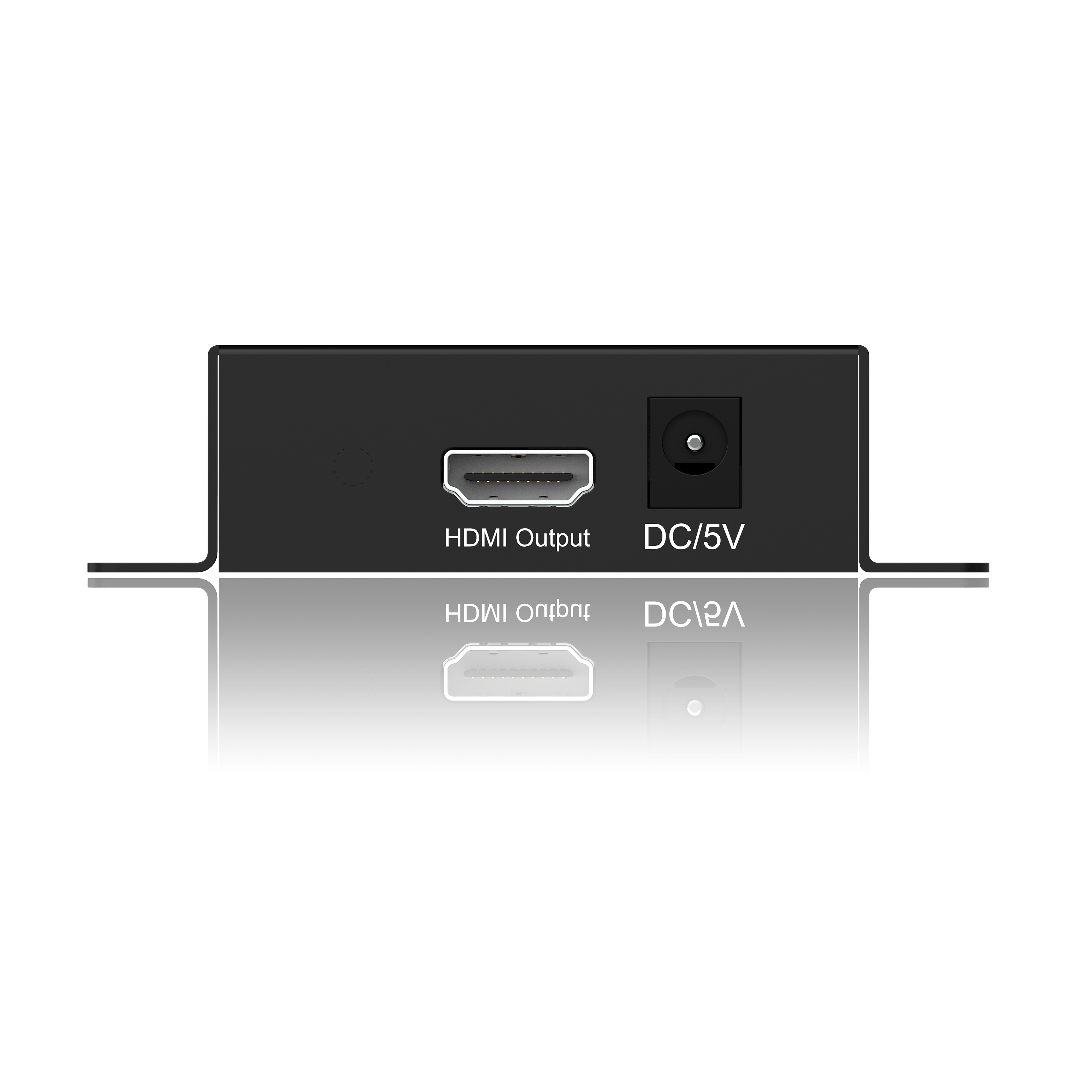

Video Output Connectors: 1x SDI(BNC) , 1x HDMI ( Standard Type A connector )
Dimensions: 95x95x29mm
Shipping weight: 0.6kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Power Supply: 5V1A
Casing Materia: Iron
