SX-TVH2-5MP is an analog high-definition interface HD-TVI to HDMI/CVBS/VGA output converter and has a loop output. The input end has a built-in equalizer and can complete the long-distance extension function. And the product is compatible with AHD analog signal input
1.Convert TVI/AHD to HDMI/CVBS/VGA With 1 looping TVI/AHD out 2.HDMI/VGA output support resolution upto1080p 3.Composite video output support NTSC, PAL 4.Support transmission distance upto 300m over coaxial Cable 5.Support Multi-Level Cascading 6.Built-in ESD industrial-grade protection circuit, which can effectively prevent static
Box Contents 1x SX-TVH2-5MP 2x Mounting ear 1x User manual 1x 12V/1A DC Power Supply

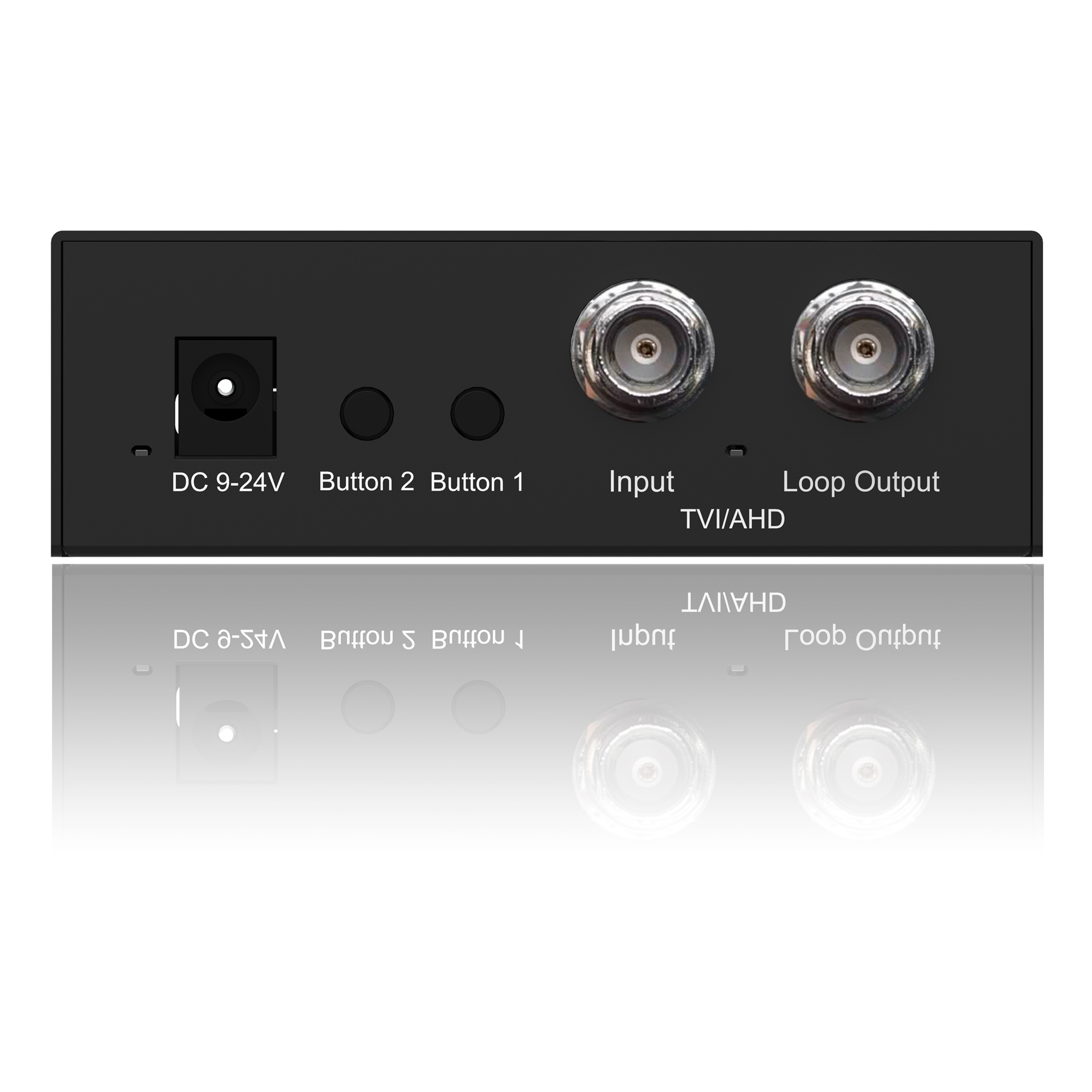

Video Input Connectors: 1x TVI/AHD

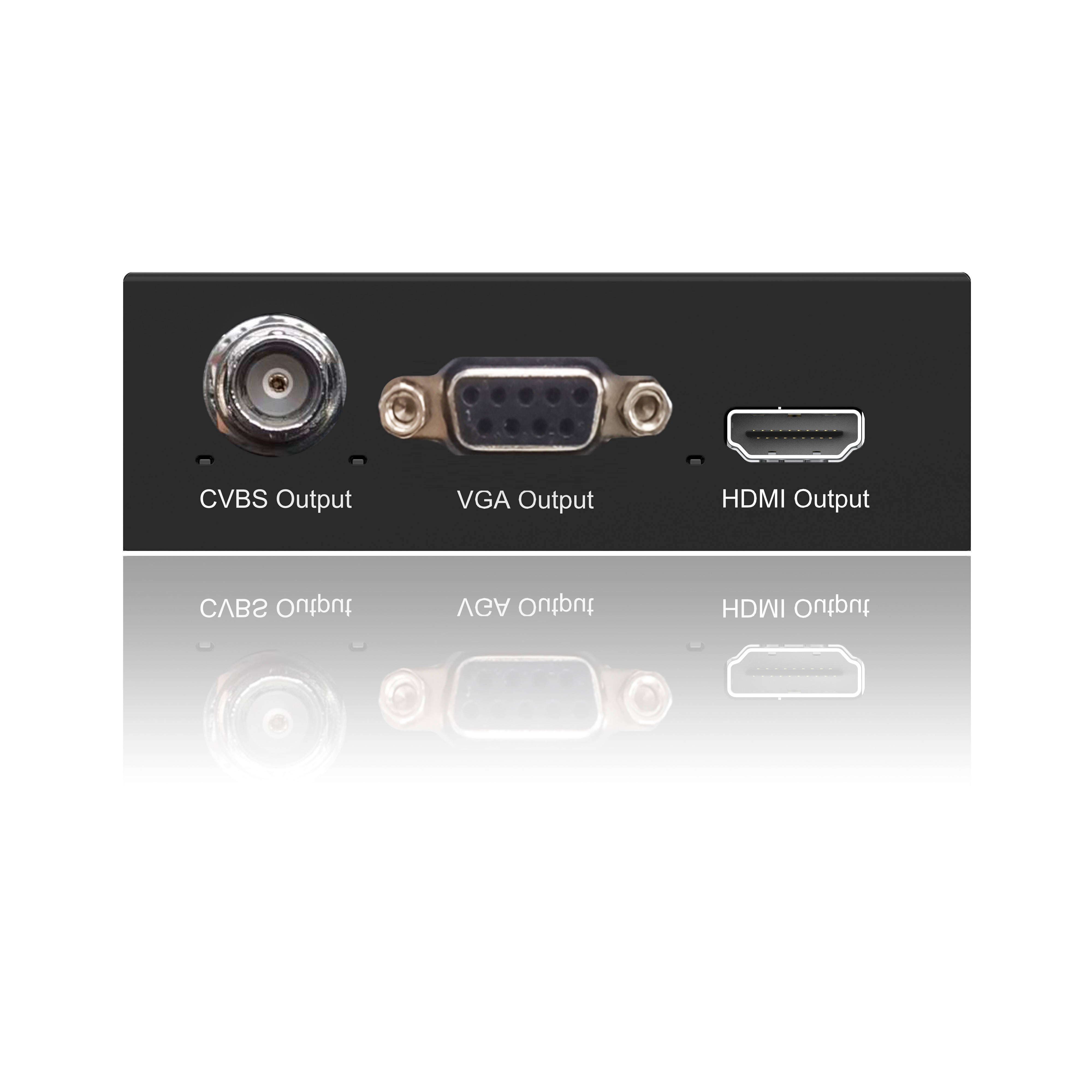

Video Output Connectors: 1x TVI/AHD Loop output; 1x HDMI ; 1xCVBS output, 1xVGA output
Dimensions: 121 x 94.2x 31 mm
Shipping weight: 0.65kg
Operating Temperature: -10 to +45℃(14 to +113℉)
Power Supply: 12V1A
Casing Materia: Iron
