SX-SDH6 is a 12G SDI to HDMI output converter which convert pure digital 12G/6G/3G- SDI signals to HDMI in 4K@60 4:2:2. Auto format detection for 12G-SDI, HD-SDI and SD-SDI. **NOTE: This is not a bi-directional converter. DO NOT use for HDMI ⟶ SDI conversion
1.Convert 12G/6G/3G-SDI to HDMI 2.SDI input resolution up to 4K@60Hz YUV 4:2:2 3.HDMI output resoution up to 4K@60Hz YUV 4:2:2 4.Bandwidth up to 12Gbps
5.Support long SDI cable runs up to 80m for 12G 4K@60Hz and 6G 4K@30Hz,120m 3G 1080P
6.Support HDCP2.2/1.4
7.Support downscaler
8.Support PCM2.0 audio format
Box Contents 1x SX-SDH6 1x 12V/1A DC Power Supply 1x User manual

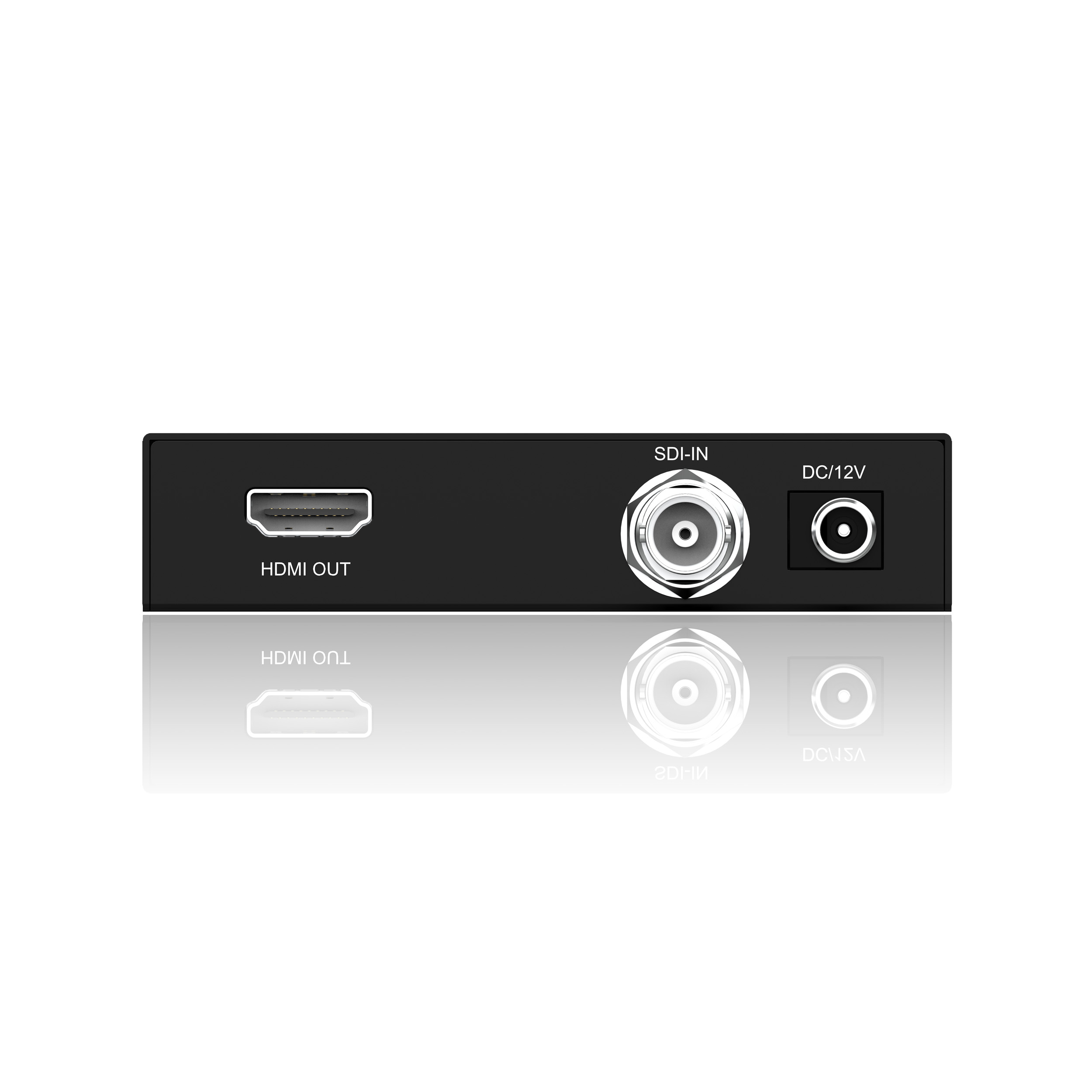

Video Input Connectors: 1x SDI(BNC)
Video Output Connectors: 1x HDMI ( Standard Type A connector )
Dimensions: 96.8x80x21.4mm
Shipping weight: 0.6kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Power Supply: 12V1A
Casing Materia: Iron
