SX-EF04 HDMI over Fiber Extender transmits HDMI, RS232 upto 300m 4K@60HZ 4:4:4 over 10G multi-mode and 60KM 4K@60HZ 4:4:4 over 10G single mode optical fiber infrastructures using OSP SFP+ units. Zero latency for application of Hospital, Airplane ect.
1.Extends HDMI 4K@60HZ 4:4:4 upto 300m over Multi mode fiber infrastructures 2.Extender HDMI 4K@60HZ 4:4:4 upto 60KM over single model fiber infrastructures 3.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 4.Bi-directional RS232 pass through 5.HDCP 2.2 compliant with automatic EDID management 6.Zero latency
Box Contents 1x EF04-TX 1x EF04-RX 2x 12V/1A DC Power Supply 2x 3-pin Phoenix connector 1x User Manual

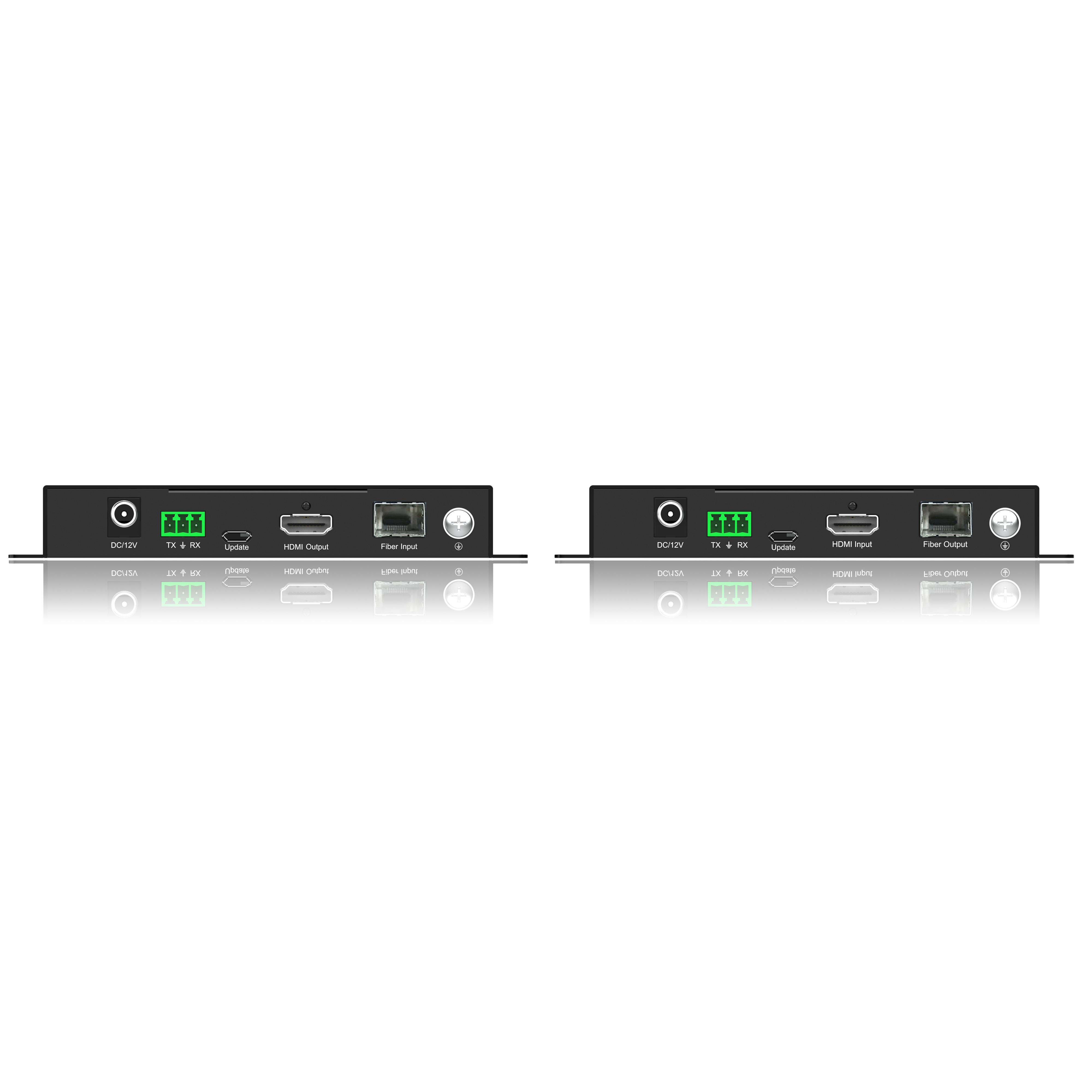

Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x Fiber connector
Video Output Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x Fiber connector
RS-232 serial port: 2 x 3-pin Phoenix connector
FW update Port: 1x Micro USB
Dimensions: 96x100x21mm
Shipping weight: 1.2kg
Operating Temperature: -5 to +40℃(+23 to +95℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V1A
Casing Materia: Iron
