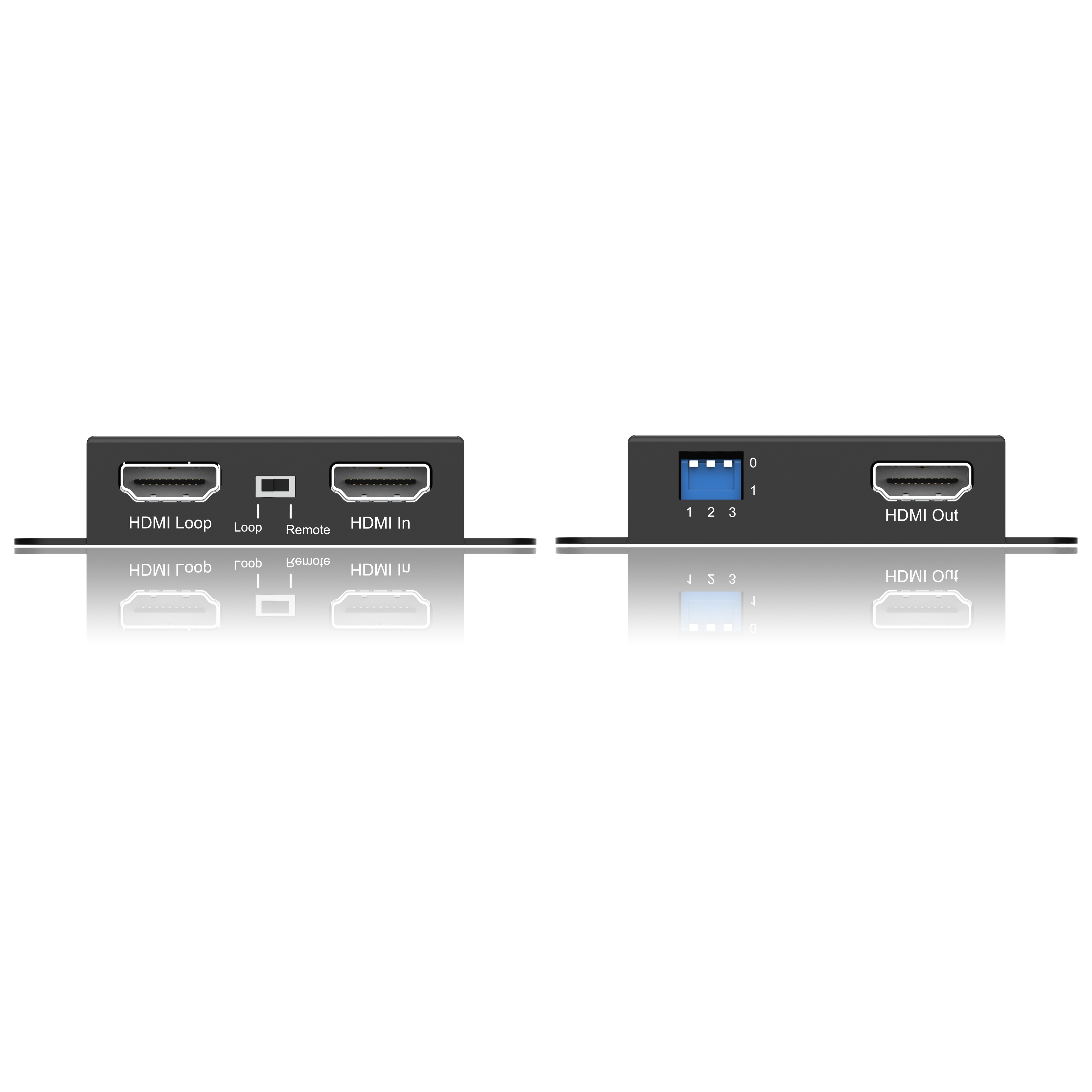

1.1x HDMI Loop Out for integrating local displays 2.Extends 1080p video upto 50m/164ft 3.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio 4.One-way IR pass-through, RX one-way infrared transmission to TX 5.Supports PoC (Receiver powered by Transmitter) 6.Supports Smart EDID management

Box Contents 1x SX-EX13-TX 1x SX-EX13-RX 1x 12V/1A DC Power Supply 1x IR emitter 1x IR receiver 1x User Manual

Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

Video Output Connectors: 2 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

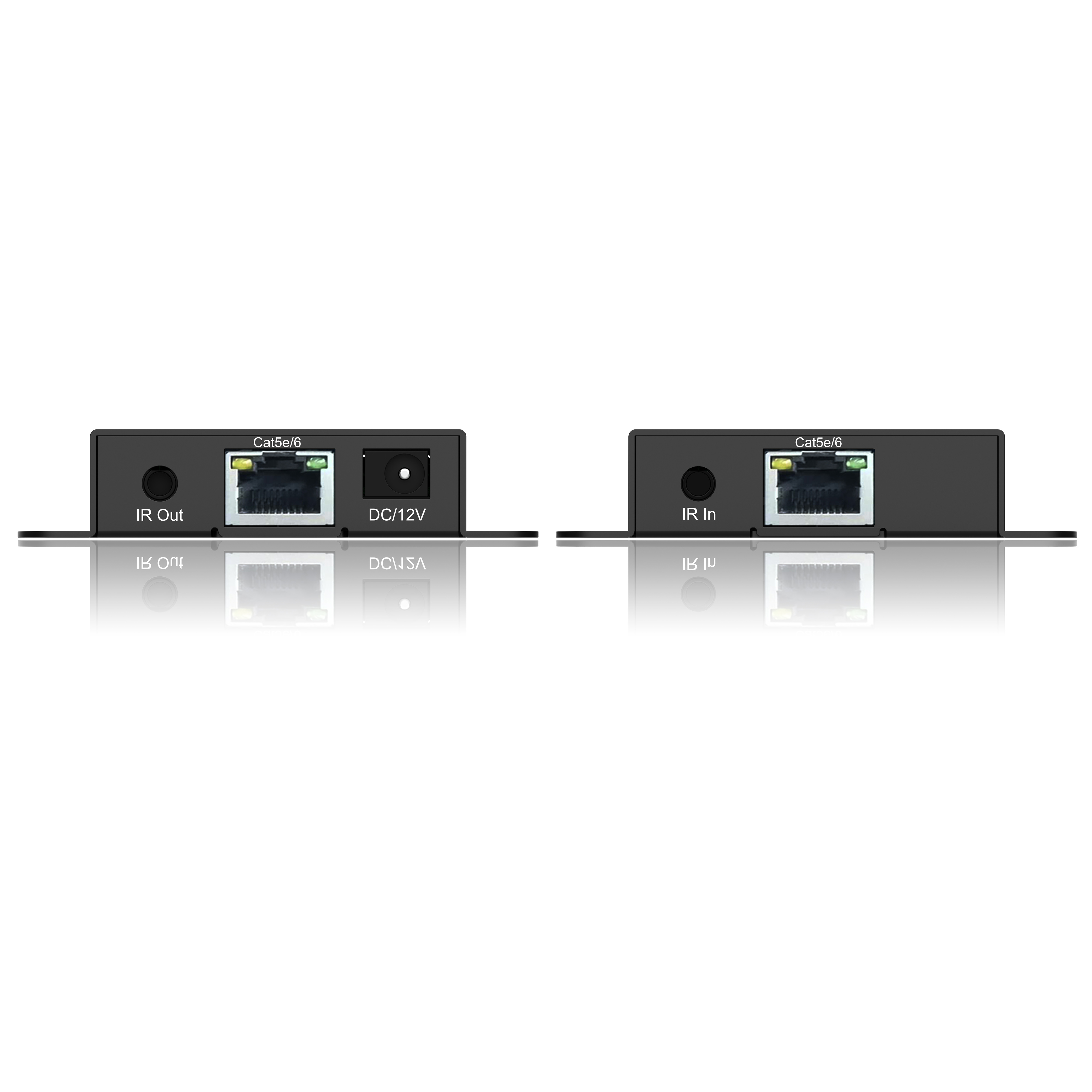

IR Input ports: 1 x 3.5mm stereo jack

IR Output ports: 1 x 3.5mm mono jack

Dimensions: 79.3x68x16.5mm

Shipping weight: 0.6kg

Operating Temperature: -5 to +35℃(+23 to +95℉)

Operating Humidity: 5 to 90 % RH (no condensation)

Power Supply: 12V1A

Casing Materia: Iron
