SX-EX33 HDBaseT/HDMI Extender transmits the HDMI , Bi-directional IR, RS232, POC, CEC upto 70m/230ft 1080P (40m/130ft 4K@60HZ 4:2:0) over a single Cat5e/6 cable using uncompressed HDBaseT techonlogy. It is built on State-of-the-art embedded chipset with ESD protection inside and has been passed thousands of hours of tests under different and sophisticated applications which include security systems, outdoor advertising screens, broadcasting stations, and public theaters etc.
1.Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency 2.Extends HDMI 1080p up to a distance of 70m/230ft over a single CAT cable 3.Extends 4K UHD video up to 40m/130ft 4K@60HZ 4:2:0 4.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 5.Bi-directional IR, RS232, CEC pass-through 6.Supports PoC (Receiver powered by Transmitter) 7.HDCP 2.2 compliant with smart EDID management
Box Contents 1x SX-EX33-TX 1x SX-EX33-RX 1x 12V/2A DC Power Supply 2x IR Emitter 2x IR Receiver 2x 3-pin Phoenix connector 1x User Manual

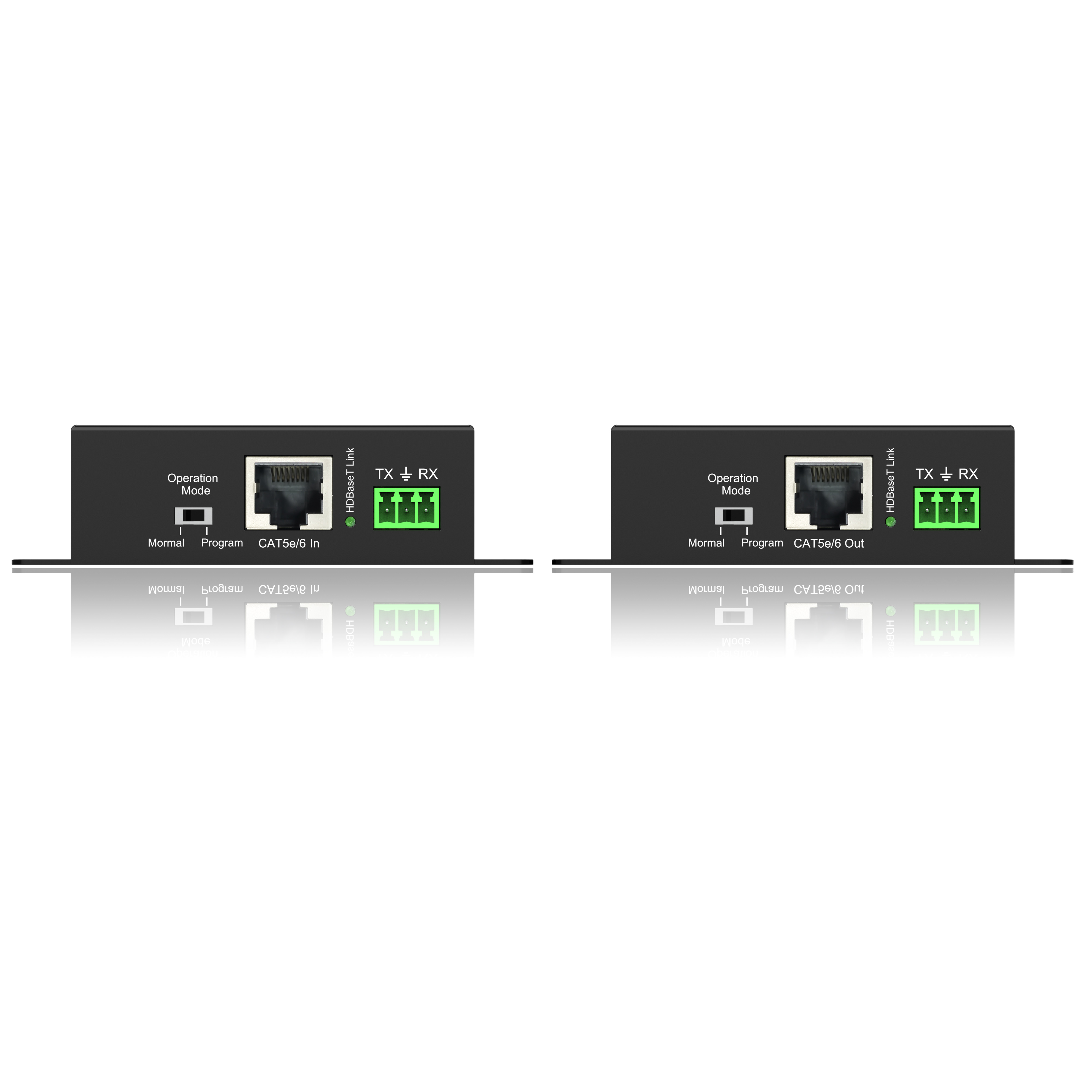

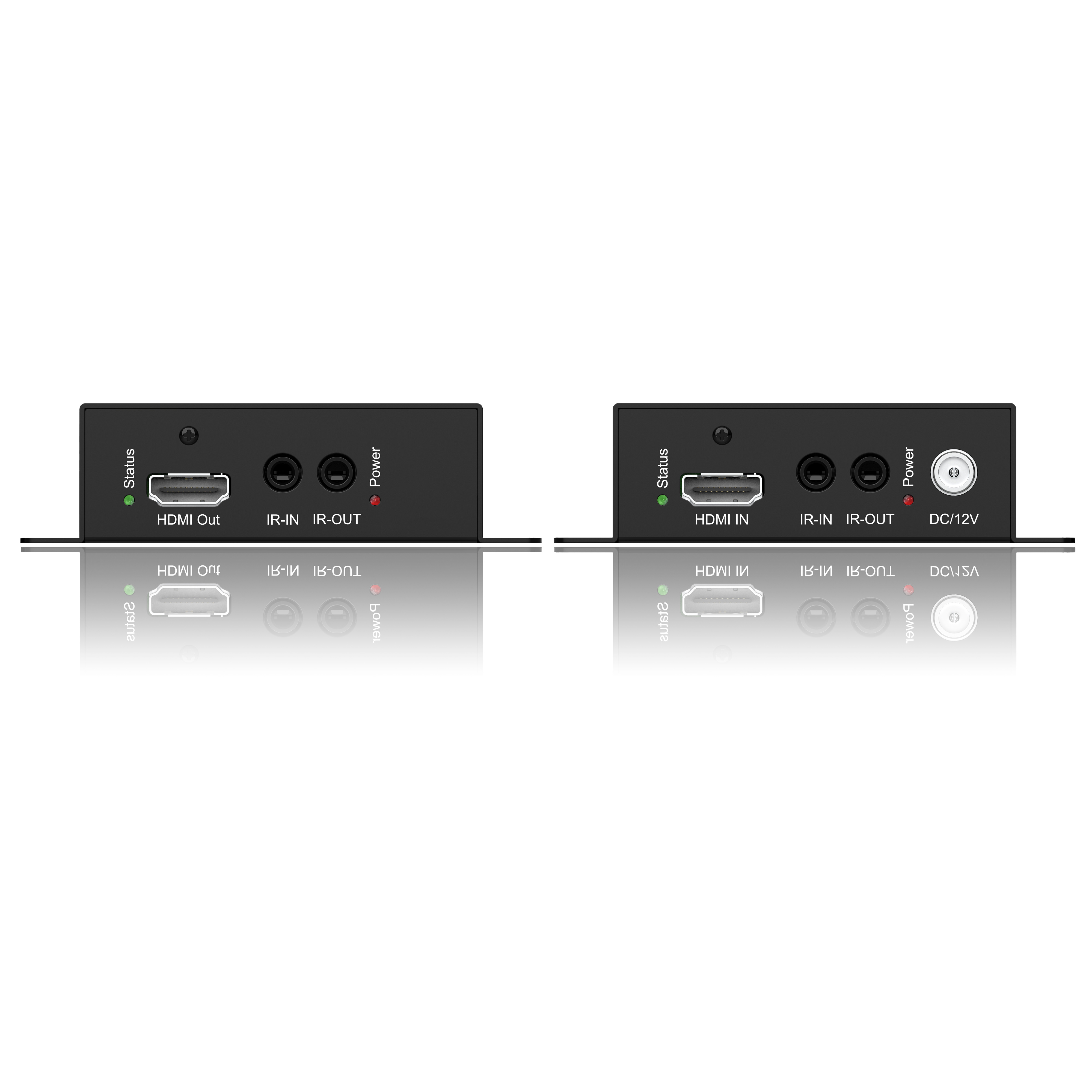

Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDMI Type A, 19-pin, female; 1 x HDBaseT™ RJ45 connector
RS-232 serial port: 2 x 3-pin Phoenix connector
IR Input ports: 2 x 3.5mm stereo jack
IR Output ports: 2 x 3.5mm mono jack
Dimensions: 105×71×25mm
Shipping weight: 1kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V2A
Casing Materia: Iron
