1.Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency 2.1x HDMI Loop out for integrating local displays or cascading to multiple devices 3.4x USB Type-A use in USB Headsets, Cameras, MIC, Keyboards, etc 4.1x USB Type-B use in PC, Printer ect 5.Extends HDMI 1080p up to a distance of 150m/500ft over a single CAT cable 6.Extends 4K UHD video up to100m/330ft 4K@60HZ 4:4:4 7.Support SPDIF and 3.5mm audio extractor 8.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 9.Bi-directional IR, RS232 pass-through

10.Supports bi-directional PoC (Receiver powered by Transmitter or Transmitter powered by Receiver) 11.HDCP 2.2 compliant with smart EDID management

Box Contents 1x SX-EX55-TX 1x SX-EX55-RX 1x 24V/1A DC Power Supply 1x IR emitter 1x IR receiver 2x 3-pin Phoenix connector 1x User Manual

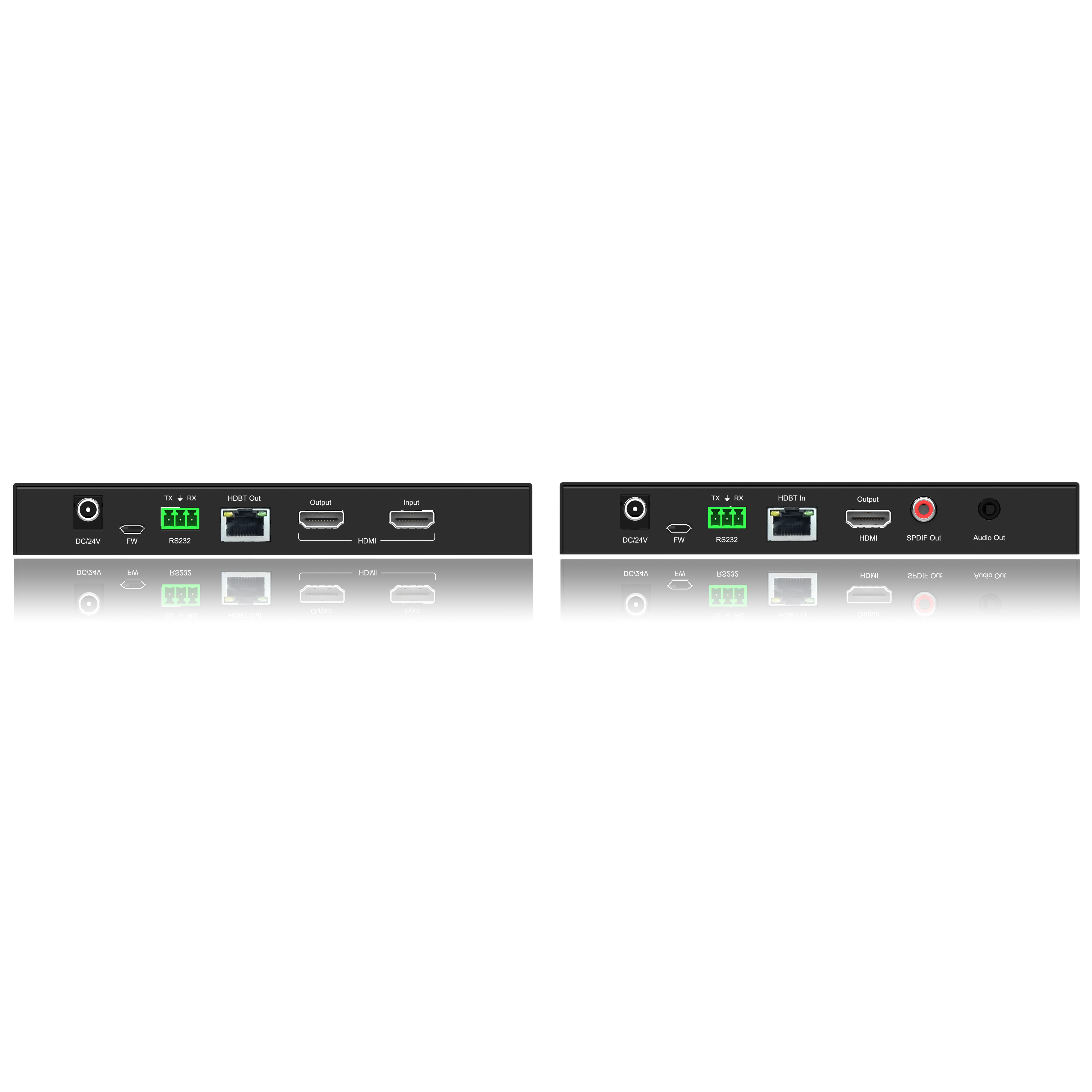

Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x HDBaseT™ RJ45 connector

Video Output Connectors: 2 x HDMI Type A, 19-pin, female; 1 x HDBaseT™ RJ45 connector

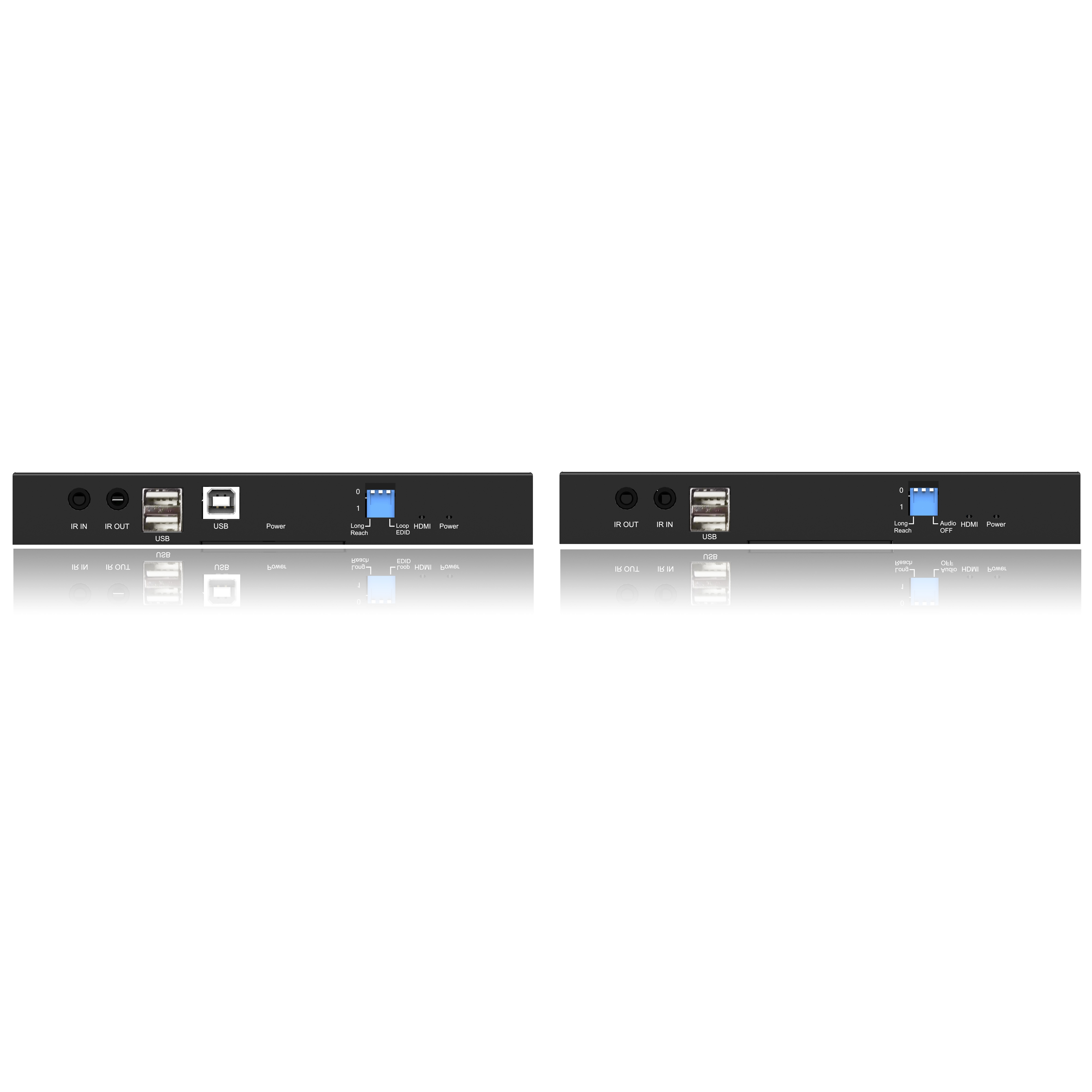

USB/KVM Port: 1 x USB Type-B (Host), 4x USB Type-A

Audio Output Connectors: 1 x Analogue 3.5mm stereo jack ; 1x SPDIF

RS-232 serial port: 2 x 3-pin Phoenix connector

IR Input ports: 2 x 3.5mm stereo jack

IR Output ports: 2 x 3.5mm mono jack

Dimensions: 172.4×113.2×24mm

Shipping weight: 2kg

Operating Temperature: -5 to +40°C (23 to +104 °F)

Operating Humidity: 5 to 90 % RH (no condensation)

Power Supply: 24V1A

Casing Materia: Iron

FW update Port: 1x Micro USB
