1.Extends 4K UHD video up to 70m/230ft 4K@60HZ 4:4:4 2.1x HDMI Loop out  for integrating local displays 3.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 4.One-way IR pass-through 5.Supports PoC (Receiver powered by Transmitter) 6.HDCP 2.2 compliant with smart EDID management

Box Contents 1x SX-EX63-TX 1x SX-EX63-RX 1x 12V/1A DC Power Supply 1x IR emitter 1x IR receiver 1x User Manual

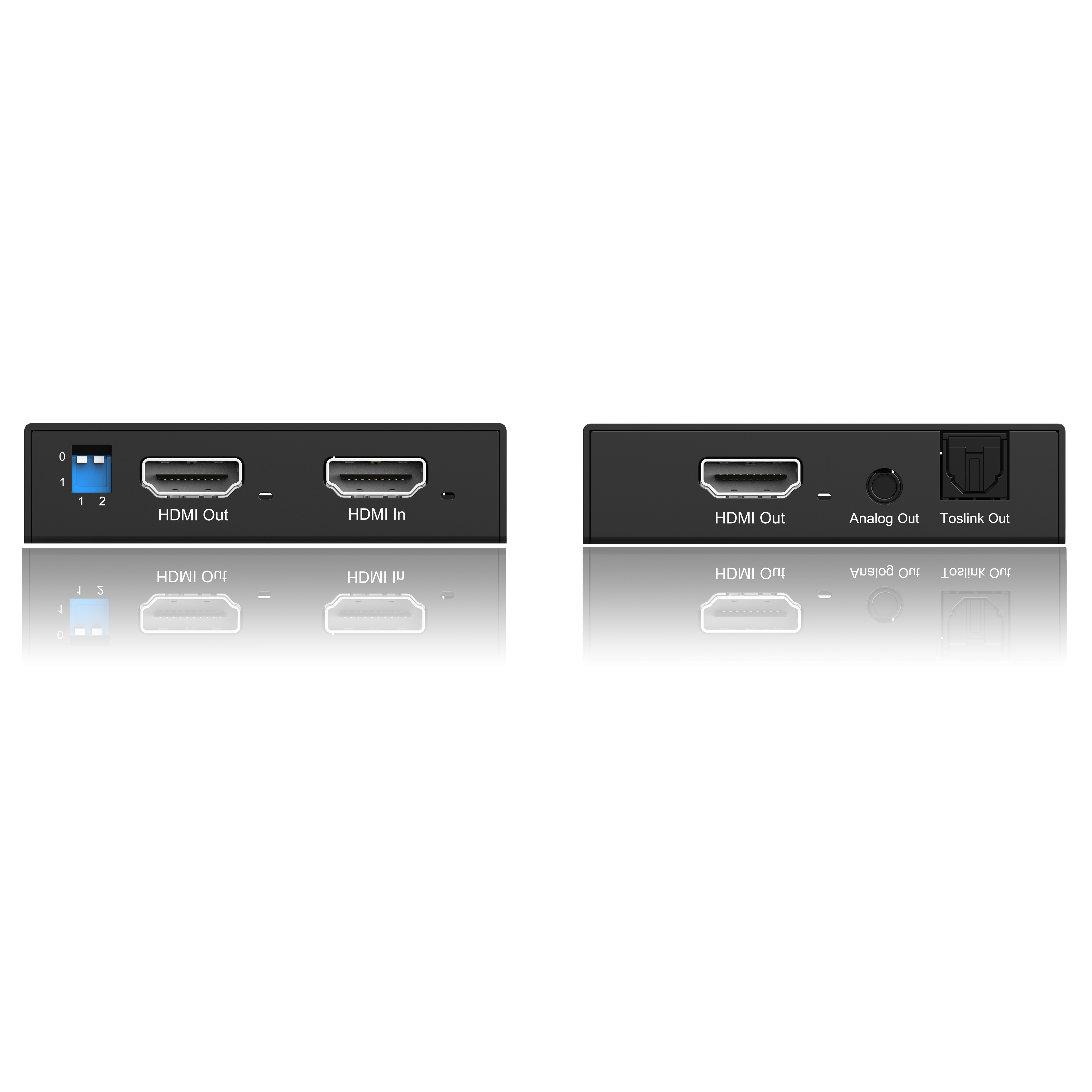

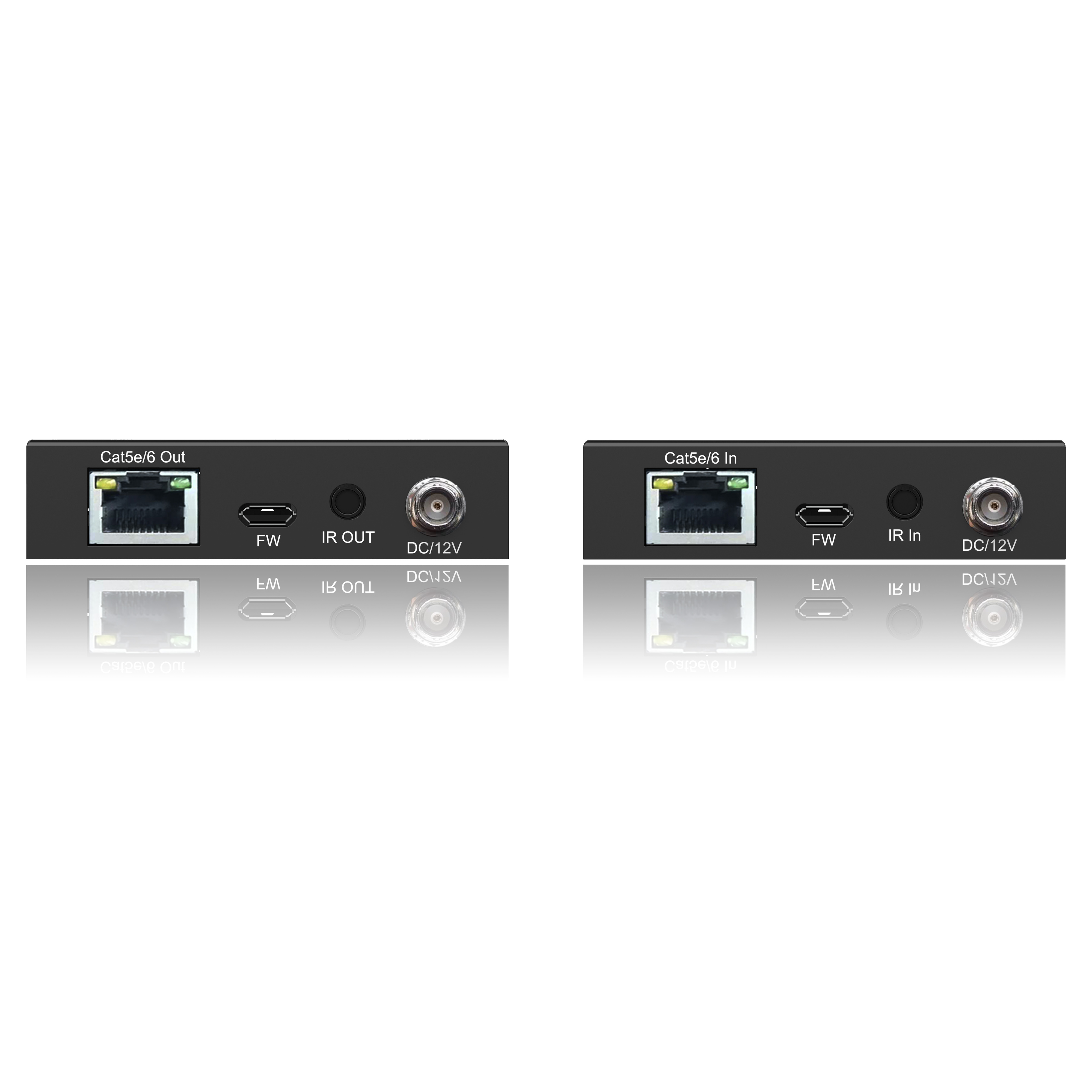

Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

Video Output Connectors: 2 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

IR Input ports: 1 x 3.5mm stereo jack

IR Output ports: 1 x 3.5mm mono jack

Audio Output Connectors: 1 x Analogue 3.5mm stereo jack

Dimensions: 75.8×72.2 × 18 mm

Shipping weight: 0.7kg

Operating Temperature: -5 to +40℃(+23 to +104℉)

Operating Humidity: 5 to 90 % RH (no condensation)

Power Supply: 12V1A

Casing Materia: Iron
