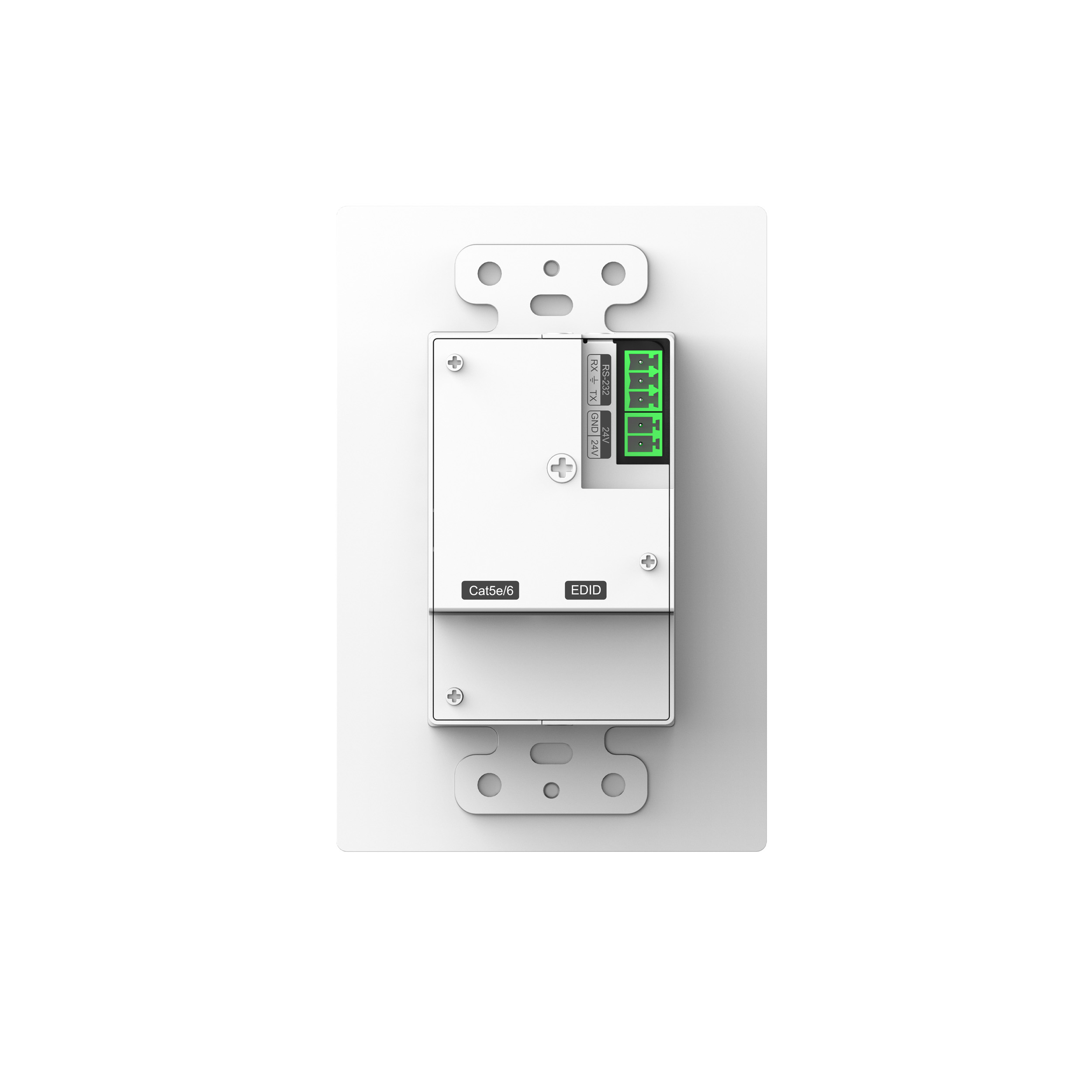

The SX-EW63 HDMI2.0 and USB-C 70M Extender Wall Plate kit is a 2x1 switcher and transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate opening with white wall plates and faceplates. Supports video resolutions up to 4K2K@50/60Hz 4:4:4. The RJ45 output can extend video transmission at distances up to 229ft or 70m. The wall-plate transmitter is remotely powered by the receiver via POC technology.
You can switch HDMI signal or USB-C on this wallplate transmitter, the USB-C support power charging 60W(Max).
1. Transmitter in North American Standard Wallplate to Box Kit

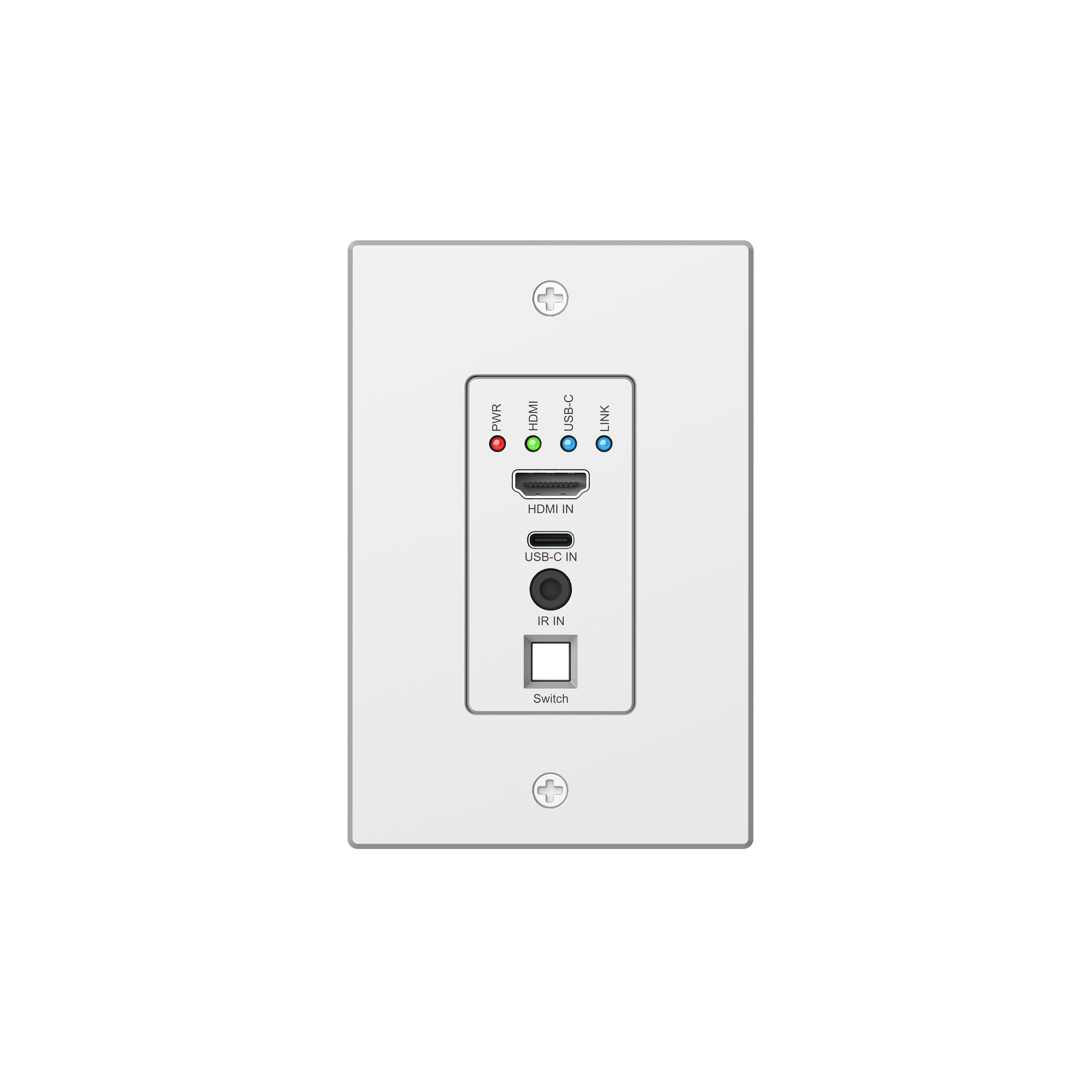

2.Support HDMI and USB-C in, Switch by the switch botton on the faceplate
3.Transmit up to 70m(230ft) under 4K@60HZ YUV 4:4:4 over single Cat5e/6 cable
4.Type-C input (USB3.0) support 4K@60HZ, PD power charging 60W Max
5.Support EDID management,HDR10,RS232 passthrough, One-Way IR
6.Support POC (Power over Cable)
7. Support S/PDIF and PCM2.0 analogo audio extraction at Receiver
8. Support Dolby True HD,PCM and DTS-HD master audio 7.1CH
9. HDCP2.2/HDCP1.4 compliant
10. Support Auto detect and switch
Box Contents
1x SX-EW63 + Receiver
1x User manual
1x IR TX cable
2x 24V/5A Power Supply
1x Aluminium Front Panel
Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector; 1x USB-C
Video Output Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
RS-232 serial port: 2 x 3pin Phoenix connector
Audio Output Connectors: 1 x Analogue 3.5mm stereo jack ; 1x SPDIF
Dimensions: 106x46x60mm(Transimitter)
110x68x13mm(Reciever)
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V5A
Casing Materia: Aluminium(Tx); Iron (RX)
