This SX-EW53 Extender allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz HDR 10 over a HDBaseT link and upto 40M ! The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs.

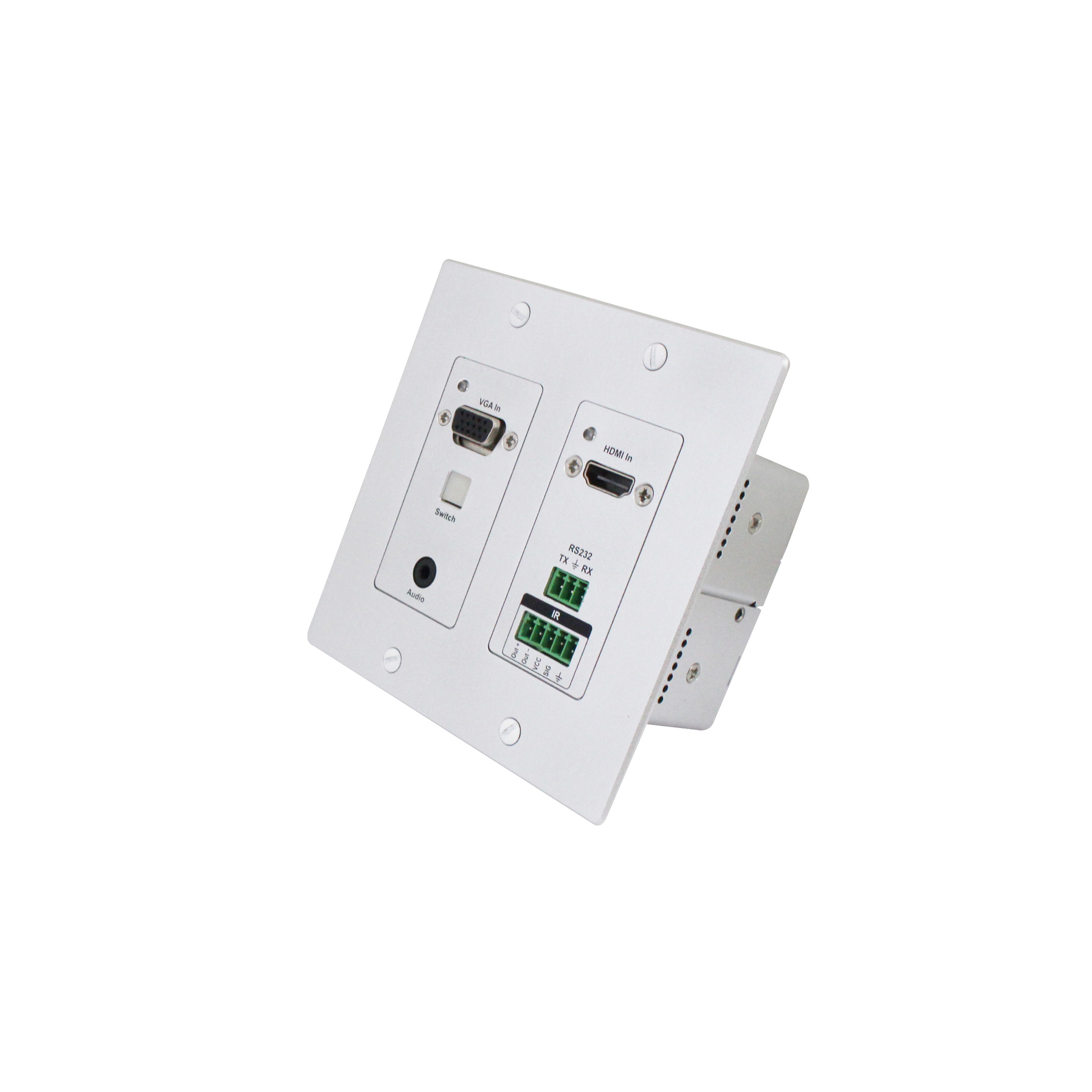

1.Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency 2.Transmitter in North American Standard Wallplate 3.Bandwidth upto 18Gbps,Resolution upto 4K@60HZ Yuv 4:4:4; VGA resolution reach upto 1920*1200 4.Extends HDMI 1080p up to a distance of 70m/230ft over a single CAT cable 5.Extends 4K UHD video up to 40m/130ft 4K@60HZ 4:4:4 6.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 7.Bi-directional IR, RS232 pass-through 8.Supports bi-directional PoC (Receiver powered by Transmitter or Transmitter powered by Receiver)
9.Support VGA and HDMI In, Switch by the switch button on the face plate
10.Supports Analog Audio embedded on Receiver
11.HDCP2.2/HDCP1.4 compliant
Box contents 1x SX-EW53 1x IR emitter 1x IR receiver 4x Phoenix connector
1x User Manual
Video Input Connectors: 1 x HDMI Type A, 19-pin, female ; 1x VGA DB-9 female; 1 x HDBaseT™ RJ45 connector
Audio input port: 1x3.5mm mono jack
RS-232 serial port: 2x 3-pin Phoenix connector
IR Input ports: 1x 5-pin phoenix connector
Dimensions: 116×115.5×49.20mm
Operating Temperature: -10 to +45℃(14 to +113℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V1A
Casing Materia: Iron
FW update Port: 1x Micro USB
