The SX-EW55 is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat 5e/6.

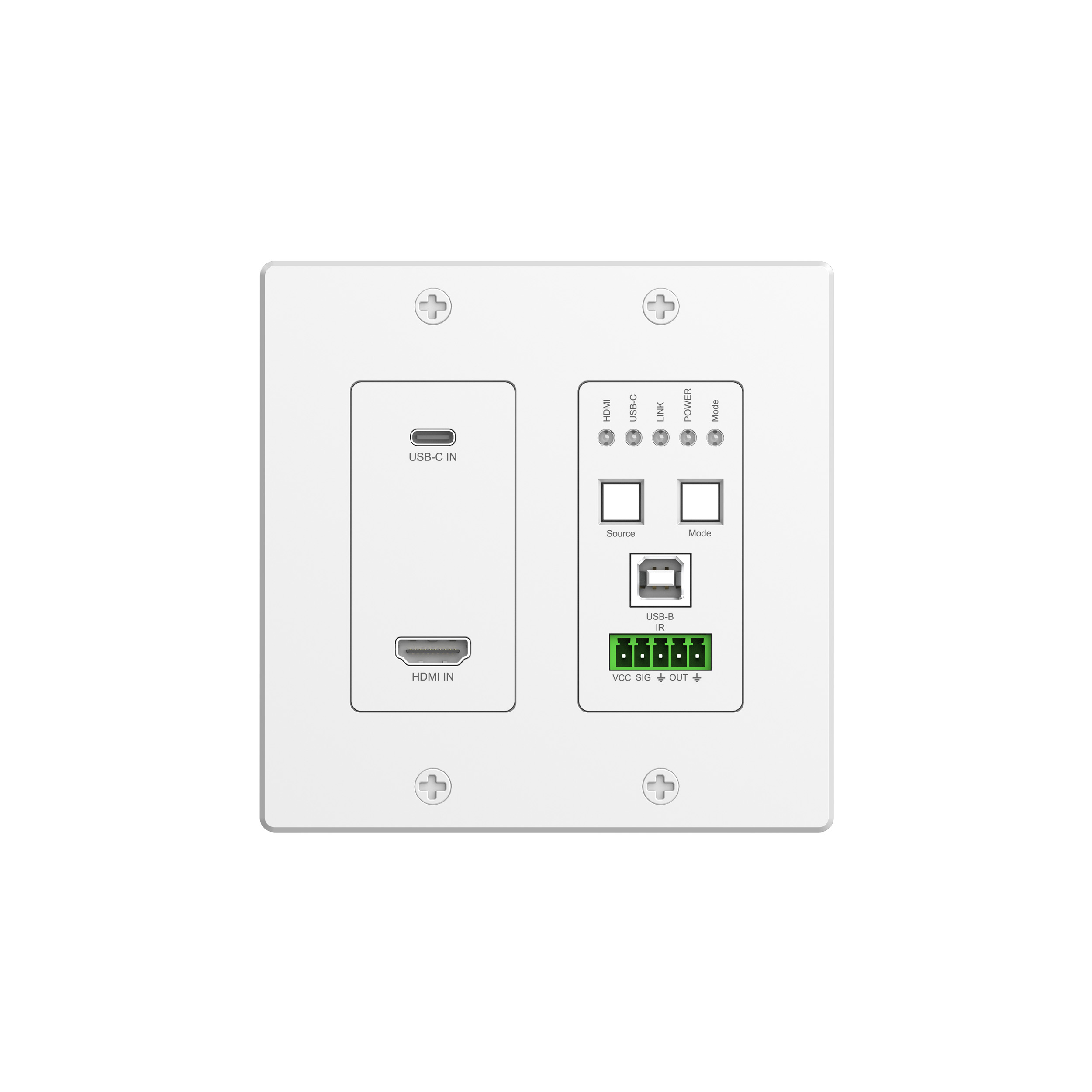

It's a wallplate switcher for USB-C and HDMI video, and an HDBaseT transmitter for video and USB over distances up to 100m 4K@60hz 444, 150m 1080P.
It also support KVM and audio extraction. And the USB-C support power charging 65W(Max). It also supports KVM and audio extraction
1.Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency 2.1x USB-C input resolution upto 4K@60HZ 4:4:4 and PD power charging 65W Max
3. 4x USB Type-A use in USB Headsets, Cameras, MIC, Keyboards, etc 4.1x USB Type-B use in PC, Printer ect 5.Extends HDMI 1080p up to a distance of 150m/500ft over a single CAT cable 6.Extends 4K UHD video up to100m/330ft 4K@60HZ 4:4:4 7.Support SPDIF and 3.5mm audio extractor 8.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX) 9.Bi-directional IR, RS232 pass-through
10.Supports bi-directional PoC (Receiver powered by Transmitter or Transmitter powered by Receiver) 11.HDCP 2.2 compliant with smart EDID management
Box Contents 1x SX-EW55 1x 24V/1A DC Power Supply 1x IR emitter 1x IR receiver 4x Phoenix connector 1x User Manual
Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1x USB-C;1 x HDBaseT™ RJ45 connector
Video Output Connectors: 2 x HDMI Type A, 19-pin, female; 1 x HDBaseT™ RJ45 connector
USB/KVM Port: 1 x USB Type-B (Host), 2x USB Type-A
Audio Output Connectors: 1 x Analogue 3.5mm stereo jack ; 1x SPDIF
RS-232 serial port: 2 x 3-pin Phoenix connector
IR Input ports: 2 x 3.5mm stereo jack
IR Output ports: 2 x 3.5mm mono jack
Dimensions: 115x91x48mm(Transmitter)
72.4×113.2×24mm (Receiver)
Operating Temperature: -5 to +40°C (23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V1A
Casing Materia: Iron
FW update Port: 1x Micro USB
