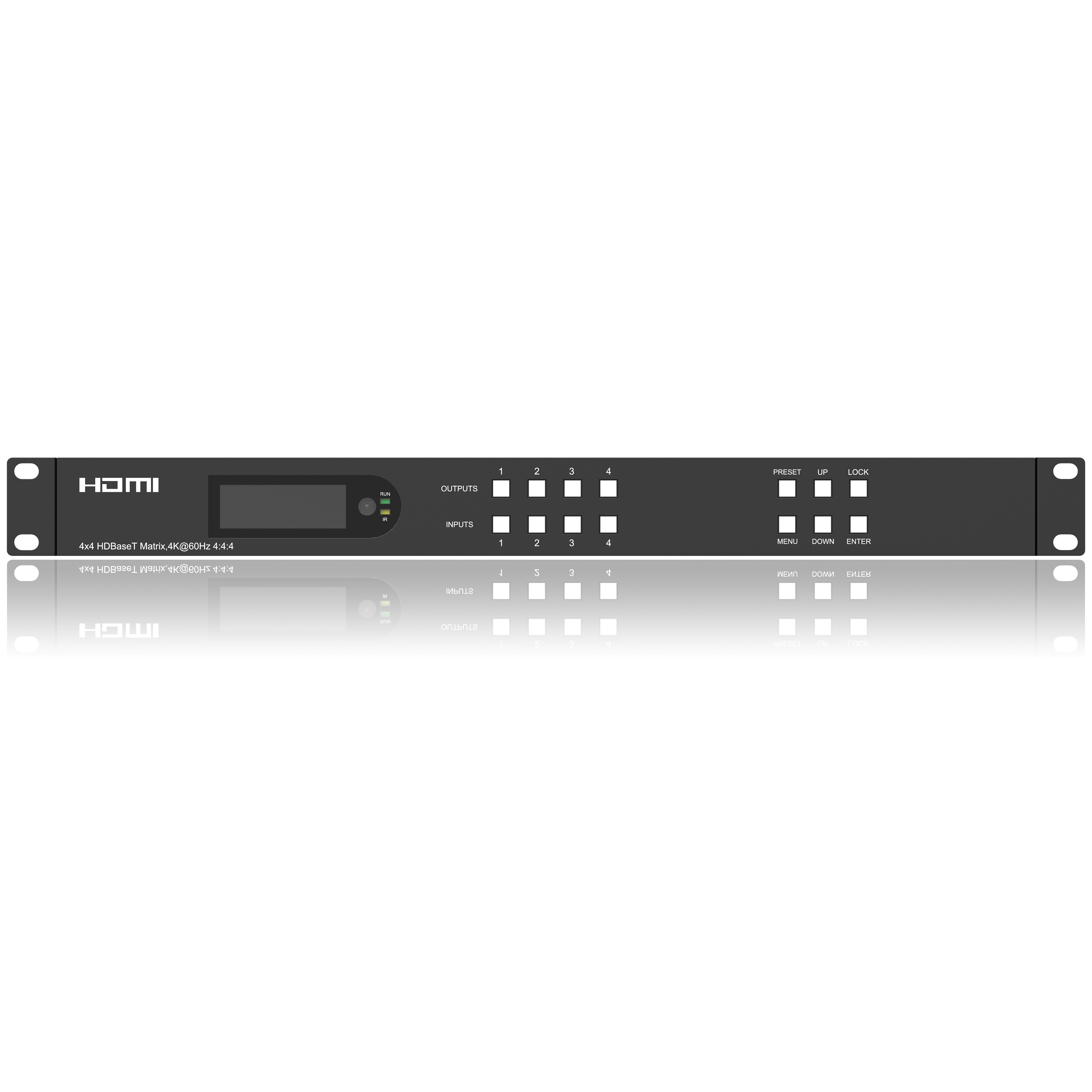

SX-MX07C is HDMI/HDBaseT Matrix 4x4 to deliver HDMI,Bi-directional IR, RS232 and POC via 4 HDBT receivers up to lengths of 70m(1080P) 40m(4K@40HZ 4:4:4) over a single CAT cable. This HDBT Matrix also can independently distribute any of four sources to any of four HDMI displays. It also supports audio out, EDID management and 3rd Party drivers available for major control brands: Control4
1.Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable 2.4 x HDMI inputs which can be independently routed to 4 x HDMI & HDBaseT outputs 3.Extends 4K 60Hz 4:4:4 UHD video up to 40m 4.Extends HDMI 1080p video up to 70m 5.Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats: - 1080p 60Hz (for screens that do not support 4K) - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4) 6.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions 7.Analog 3.5mm audio input can be embedded onto any combination of HDMI inputs concurrently 8.Supports bi-directional IR on all HDBaseT outputs
9.Supports analog (L/R) audio out and S/PDIF digital outputs 10.Control via front panel, IR, RS-232 and TCP/IP, PC Tool Control 11.Supports PoC (Power over Cable) to power supplied HDBaseT receivers 12. 3rd Party drivers available for all major control brands Control 4 13.1U Design for 19" rack mount integration - mounting kit included 14.Advanced EDID management & HDCP 2.2 compliant 15.Compatible with Foxun HDBaseT Receivers: SX-EX53-RX
Box Contents 1x SX-MX07C 1x 24V/4A DC Power Supply 5x IR emitter 5x IR receiver 2x Mounting ear 1x Remote control

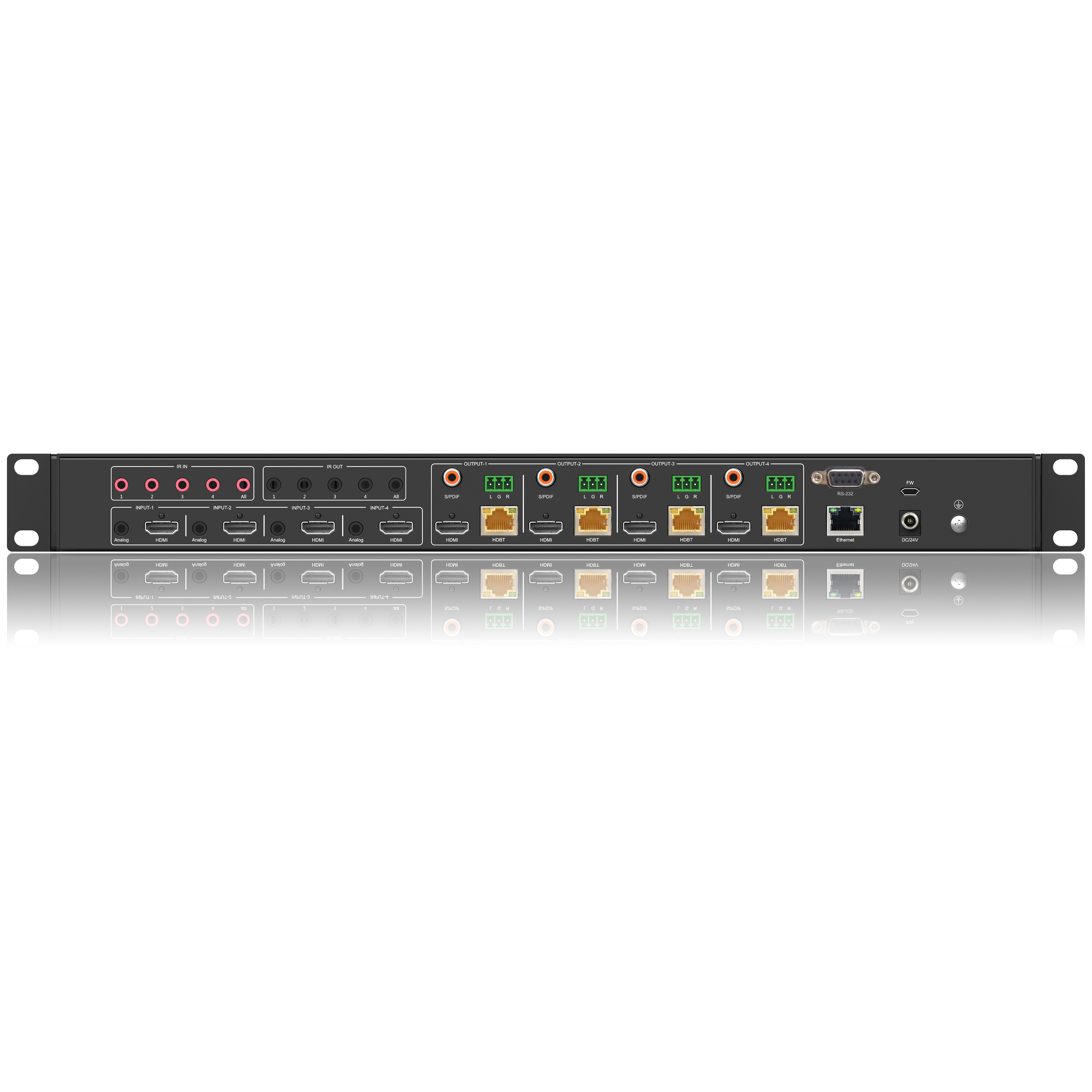

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
IR Input ports: 4 x 3.5mm stereo jack
IR Output ports: 4 x 3.5mm stereo jack
Audio Output Connectors: 4 x SPDIF; 4 x 3-pin Phoenix connector (L/R)
Audio Input Connectors: 4 x 3.5mm stereo jack
RS-232 Serial Port: 1 x DB-9 female
TCP/IP Control: 1 x RJ45, female
FW update Port: 1x Micro USB
Dimensions: 438 x 394 x 44 mm
Shipping weight(kit): 4kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 24V4A
Casing Materia: Iron
