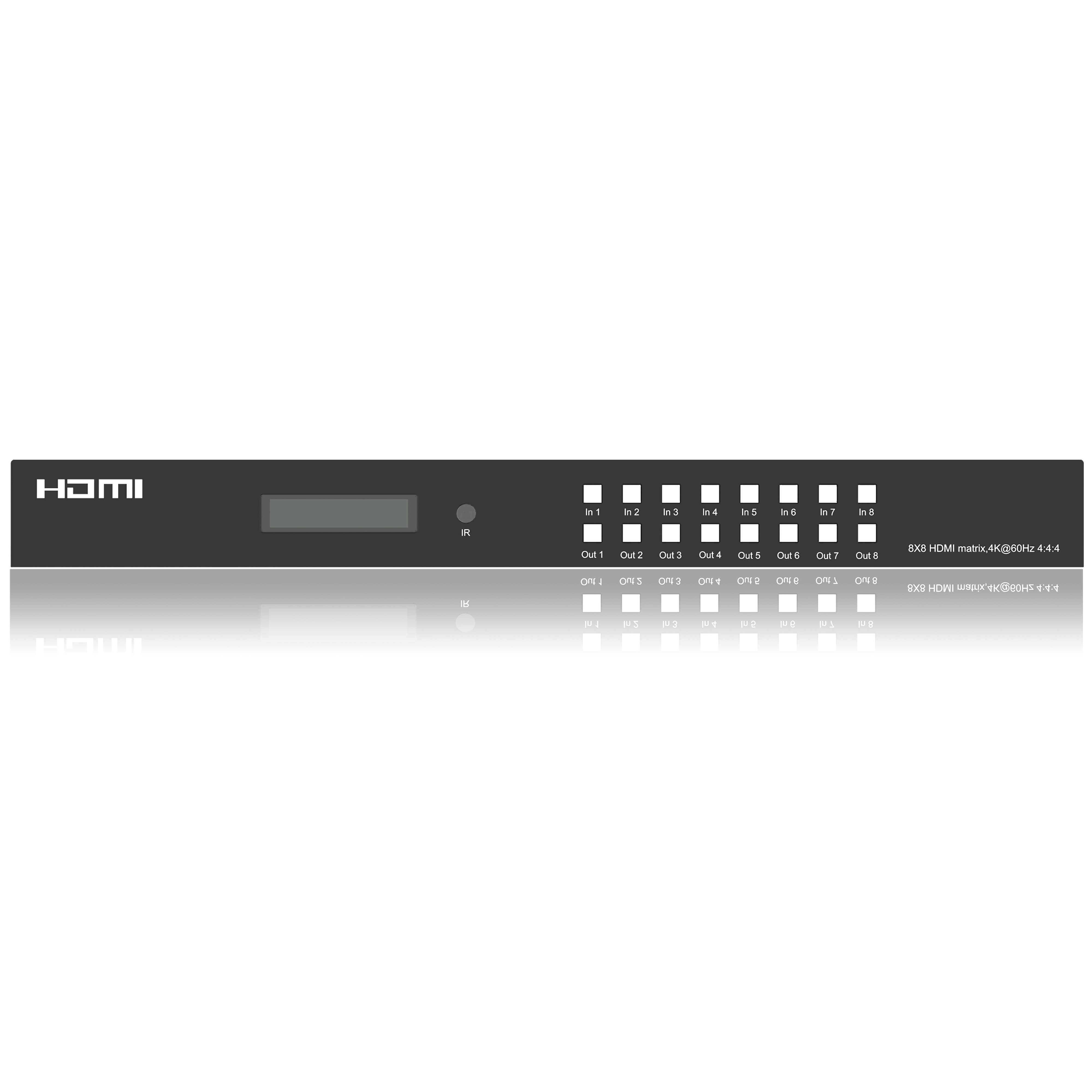

SX-MX11B is HDMI Matrix 8x8 to connect up to eight HDMI Sources and independently route and distribute any source to any of the eight TVs. This HDMI matrix transmits all HDMI resolutions up to 4K 60Hz 4:4:4 with HDCP2.2/HDR. It also supports audio out, EDID management and 3rd Party drivers available for major control brands: Control4
1.8 x HDMI inputs which can be independently routed to 8 x HDMI outputs 2.Supports HDMI 2.0 Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 3.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions 4.Audio extraction to S/PDIF Coaxial audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays 5.Control via Push buttons, IR remote, RS-232 control, IP control, Web GUI 6.3rd Party drivers available for major control brands Control4
7.Advanced EDID management & HDCP 2.2 compliant
Box Contents 1x SX-MX11B 2x Mounting ear 1x IR extention 1x Remote control 1x 12V/3A DC Power Supply 1x CD user manual

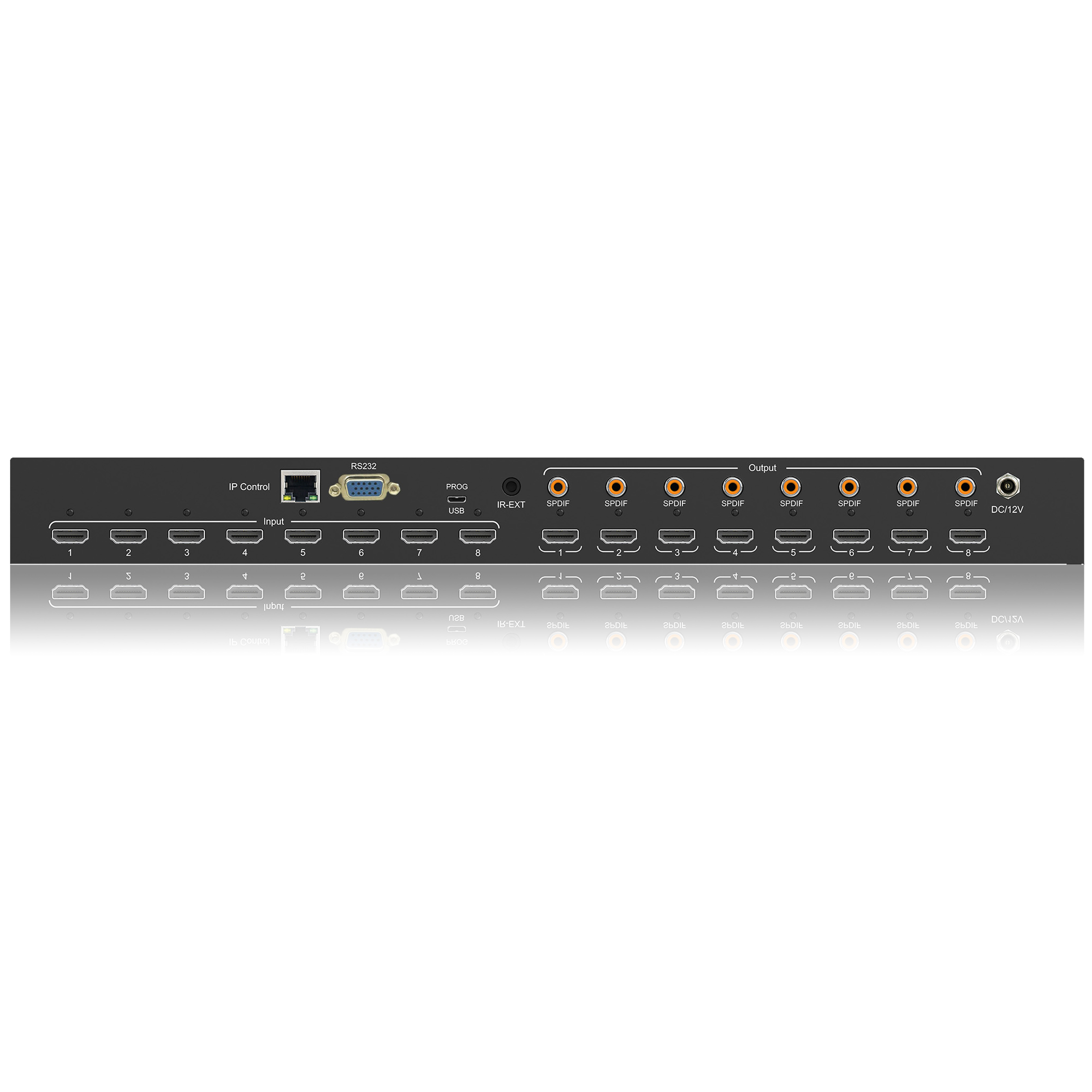

Video Input Connectors: 8 x HDMI Type A, 19-pin, female
Video Output Connectors: 8 x HDMI Type A, 19-pin, female
IR extension: 1 x 3.5mm stereo jack
Audio Output Connectors: 8x SPDIF
RS-232 Serial Port: 1 x DB-9 female
TCP/IP Control: 1 x RJ45, female
Dimensions: 440X220X44.5mm
Shipping weight: 4kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 12V3A
Casing Materia: Iron
