SX-MX15 is 4K HDMI Matrix 4x2 which connect upto four HDMI sources and independently distribute any source to any of the two HDMI displays with ARC It transmits all HDMI resolutions up to 4K 60Hz 4:4:4 with HDCP2.2/HDR. The 4x2 HDMI matrix also supports audio out, EDID management

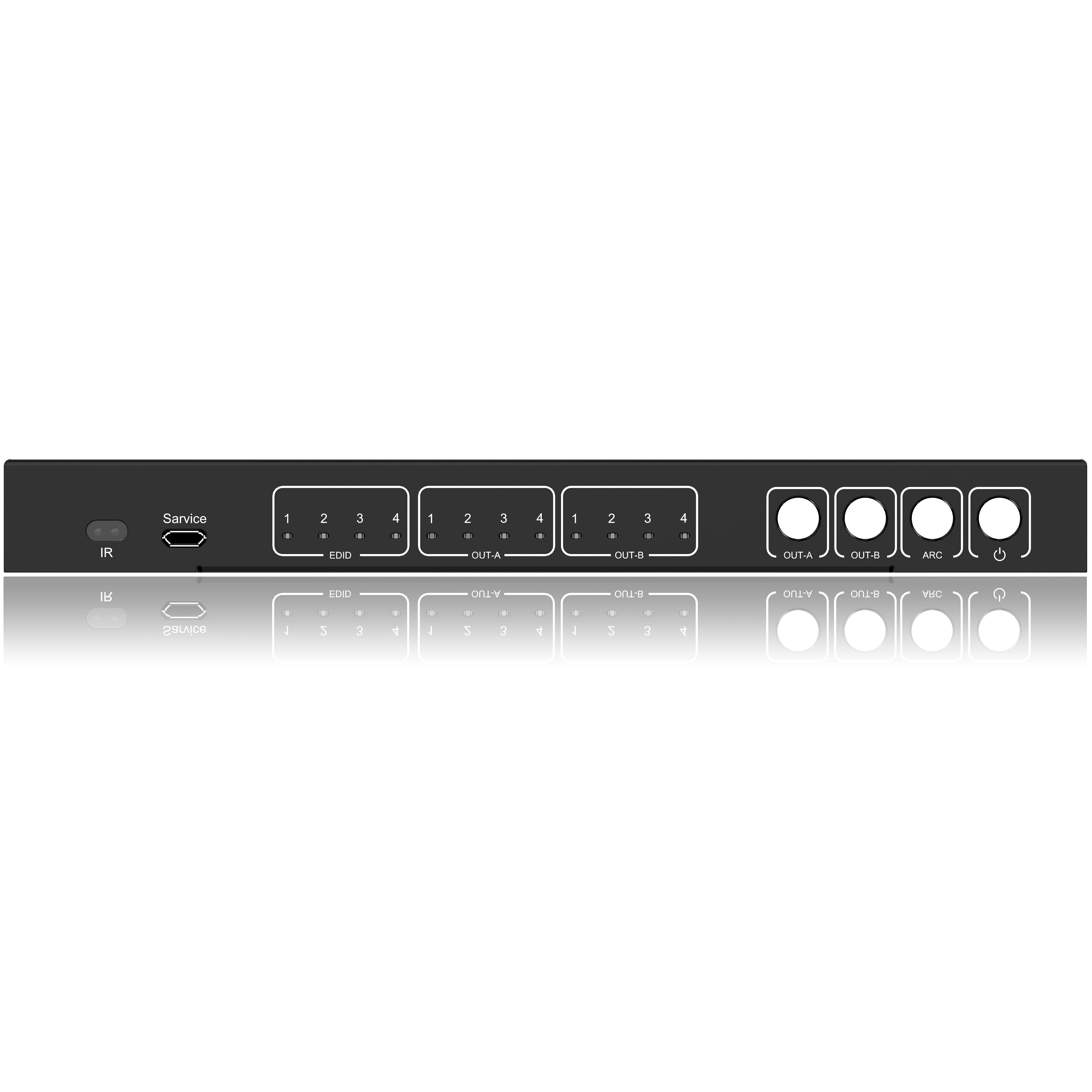

1.4 x HDMI inputs which can be independently routed to 2 x HDMI outputs 2.Supports HDMI 2.0 Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 3.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions 4.Support one SPDIF & one 3.5mm L/R port audio output for each HDMI Output to take advantage of speaker systems instead of built-in speakers on displays. Support LPCM/Dolby/DTS 5.1 channel 5.Control via Push buttons, IR remote,Web GUI
6.Advanced EDID management & HDCP 2.2 compliant 7.Support CEC and ARC 8.Support downscaler from 4K to 1080P
Box Contents 1x SX-MX15 2x Mounting ear 1x User manual 1x Remote control 1x 5V/1A DC Power Supply

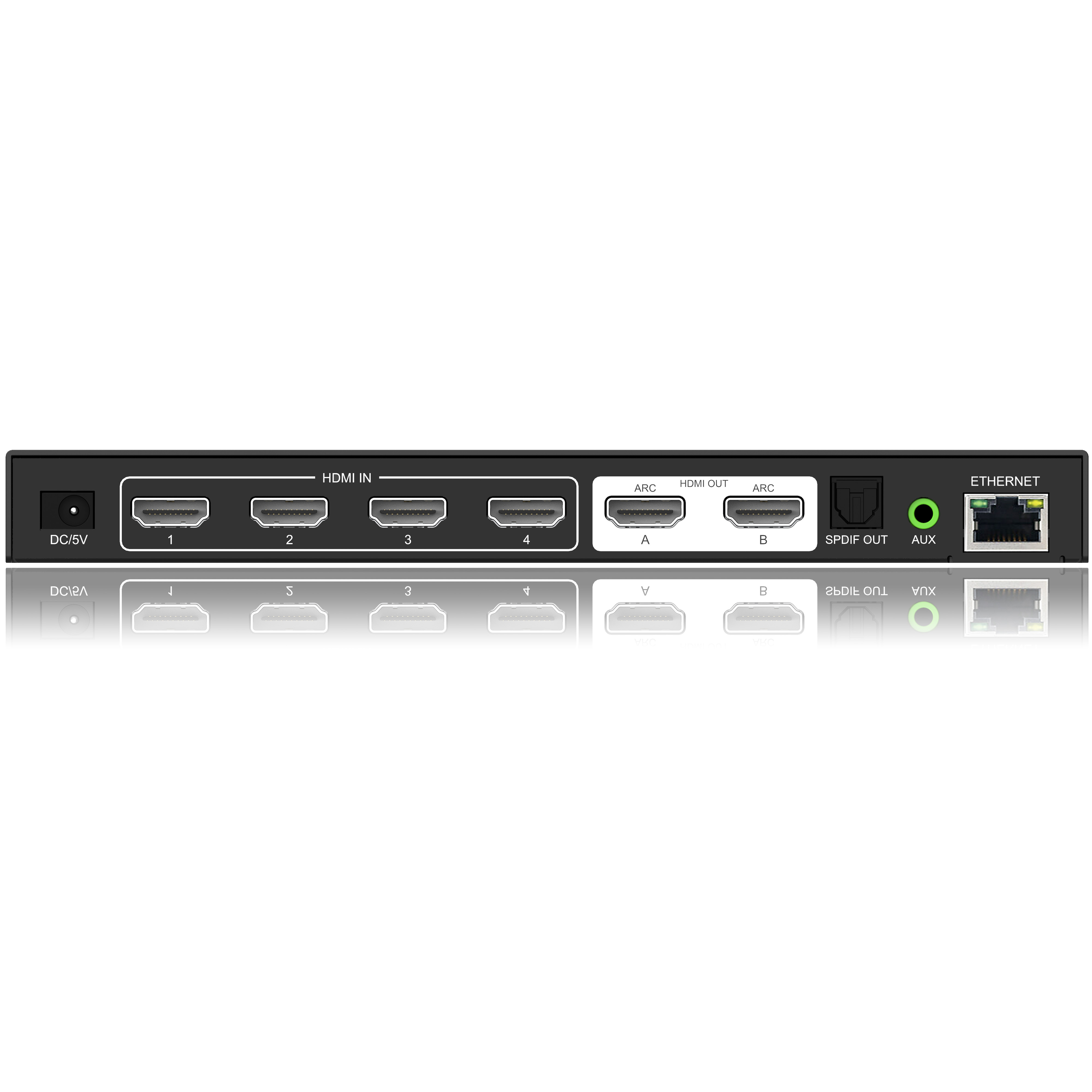

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x SPDIF ; 1x analogue 3.5mm stereo jack
FW update Port: Port 1x Micro USB
TCP/IP Control: 1 x RJ45, female
Dimensions: 210X104.3X20.8mm
Shipping weight: 1kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 5V1A
Casing Materia: Iron
