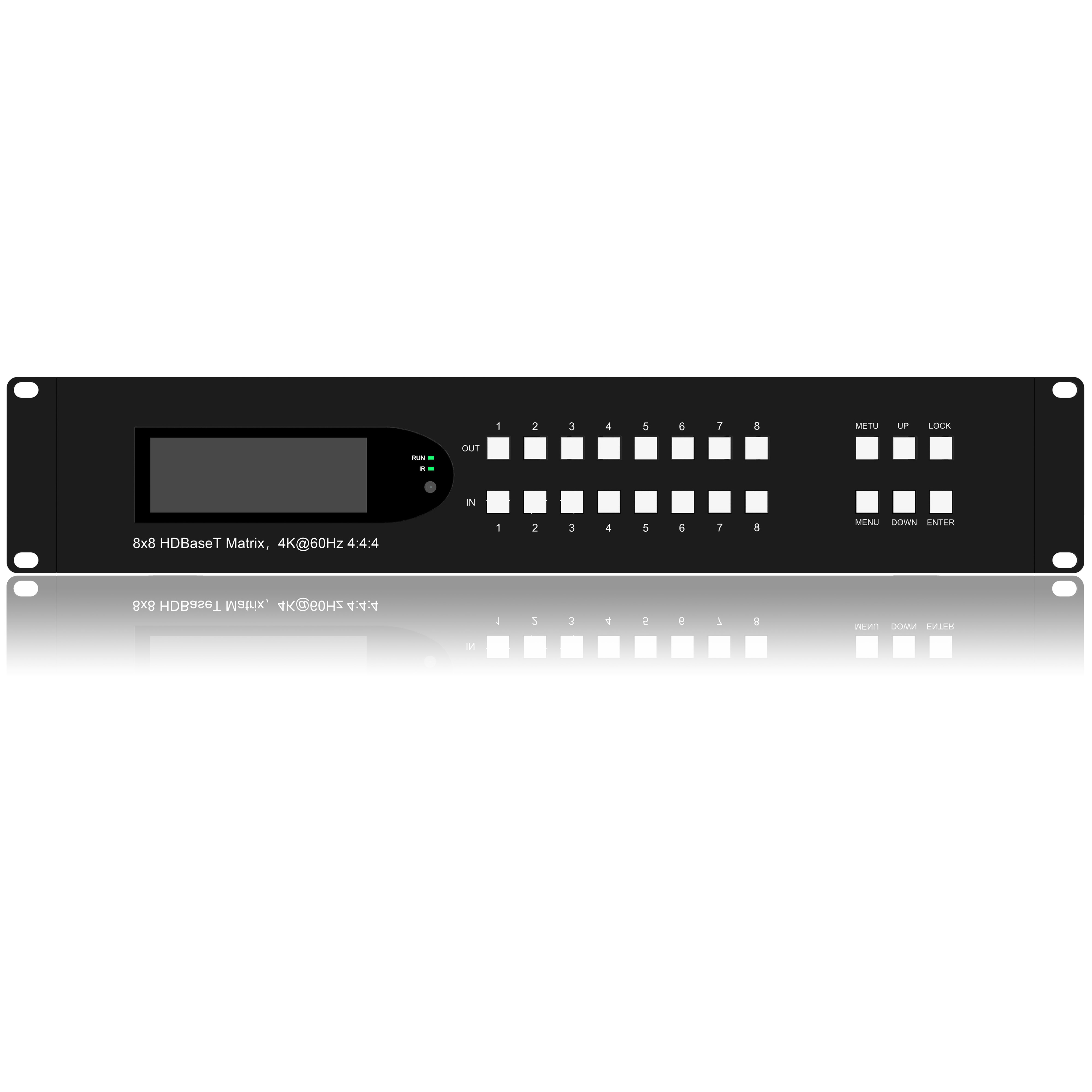

SX-MX12B is HDMI/HDBaseT Matrix 8x8 to deliver HDMI,Bi-directional IR, RS232 and POC via 8 HDBT receivers up to lengths of 70m(1080P) 40m(4K@40HZ 4:4:4) over a single CAT cable. This HDBT Matrix also can independently distribute any of eight sources to any of eight HDMI displays. It also supports audio out, EDID management and 3rd Party drivers available for major control brands: Control4
1.Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable 2.8 x HDMI inputs which can be independently routed to 8 x HDMI & HDBaseT outputs 3.Extends 4K 60Hz 4:4:4 UHD video up to 40m 4.Extends HDMI 1080p video up to 70m 5.Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats: - 1080p 60Hz (for screens that do not support 4K) - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4) ６.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions 7.Supports analog 3.5mm audio out and S/PDIF digital outputs 8.Supports bi-directional IR and RS-232 on all HDBaseT outputs 9.Control via front panel, IR, RS-232 and TCP/IP, PC Tool Control
10.Supports PoC (Power over Cable) to power supplied HDBaseT receivers 11.3rd Party drivers available for all major control brands Control 4 12.2U Design for 19" rack mount integration - mounting kit included 13.Advanced EDID management & HDCP 2.2 compliant 14.Compatible with Foxun HDBaseT Receivers: SX-EX53-RX
Box Contents 1x SX-MX12B 1x 24V/4.5A DC Power Supply 2x Mounting ear 17x IR emmitter 17x IR receiver 10x 3-pin Phoenix connector 1x Remote control 1x CD for user manual
Video Input Connectors: 8 x HDMI Type A, 19-pin, female
Video Output Connectors: 8 x HDMI Type A, 19-pin, female; 8 x HDBaseT™ RJ45 connector
IR Input ports: 9 x 3.5mm stereo jack
IR Output ports: 9 x 3.5mm mono jack
Audio Output Connectors: 8 x 3.5mm stereo jack; 8x SPDIF
Audio Input Connectors: 4 x 3.5mm stereo jack
RS-232 Serial Port: 2 x 3-pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
Dimensions: 438 x 394 x 88 mm
Shipping weight: 12kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V4.5A
Casing Materia: Iron
