SX-MX17 is 4K HDMI Matrix 4x4 to connect upto four HDMI sources and independently distribute any source to any of four HDMI displays. It transmits all HDMI resolutions up to 4K 60Hz 4:4:4 with HDCP2.2/HDR. The 4x4 HDMI matrix also supports audio out, EDID management
1.4 x HDMI inputs which can be independently routed to 4 x HDMI outputs 2.Supports HDMI 2.0 Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 3.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions 4.Audio extraction to S/PDIF Coaxial audio and L/R audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays 5.Control via Push buttons, IR remote, RS-232 control, IP control, Web GUI 6. A 4K video source device can simultaneously display 4K content to 4K monitor and 1080p content to 1080p via downscaling
7.Advanced EDID management & HDCP 2.2 compliant
Box Contents 1x SX-MX17 2x Mounting ear 1x IR receiver 1x Remote control 1x 12V/2A DC Power Supply 1x CD User manual

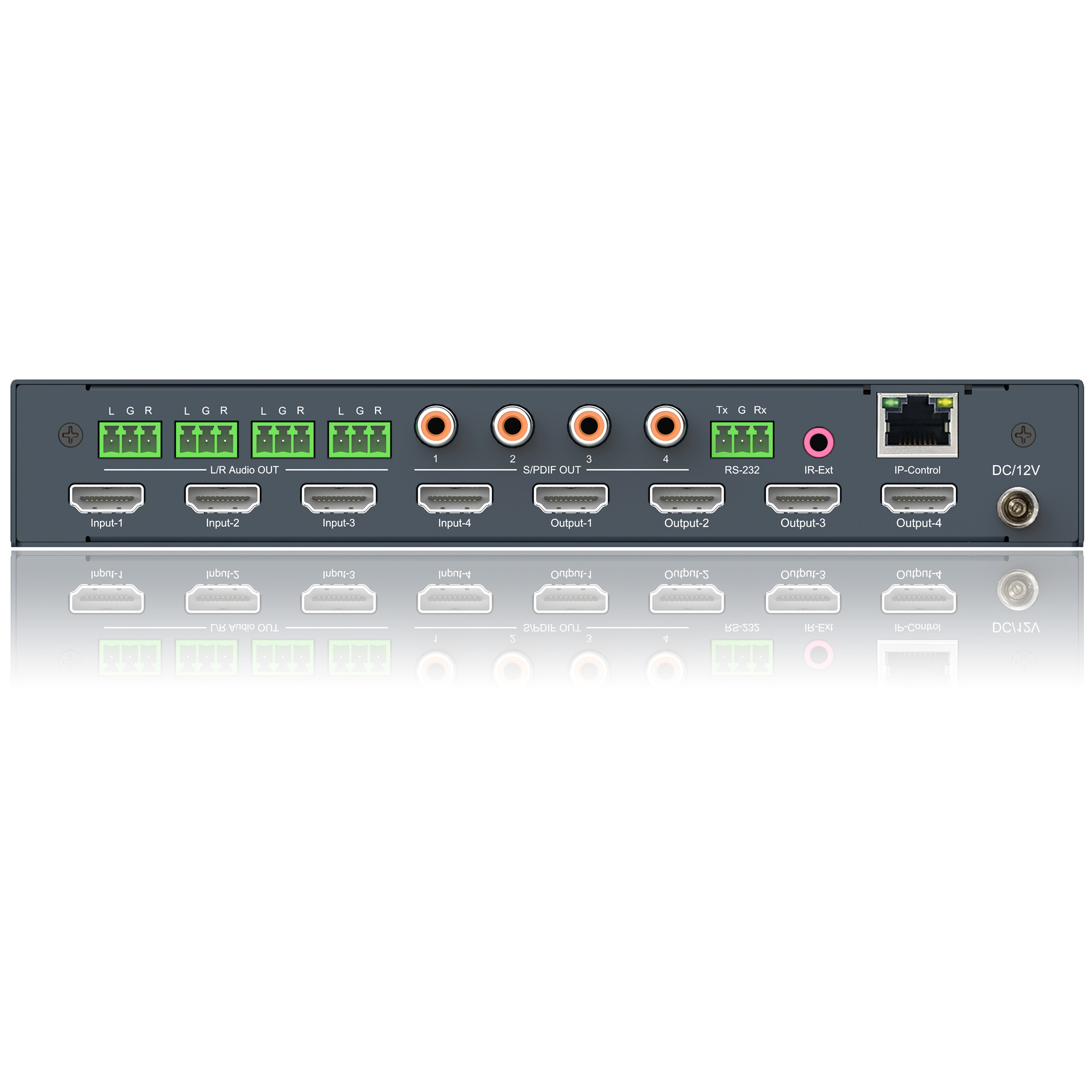

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 4 x HDMI Type A, 19-pin, female
IR extension: 1 x 3.5mm stereo jack
Audio Output Connectors: 4 x SPDIF; 4x 3-pin phoenix connector
RS-232 Serial Port: 1 x 3-pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
Dimensions: 216.2X128.5X34mm
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 12V2A
Casing Materia: Iron
