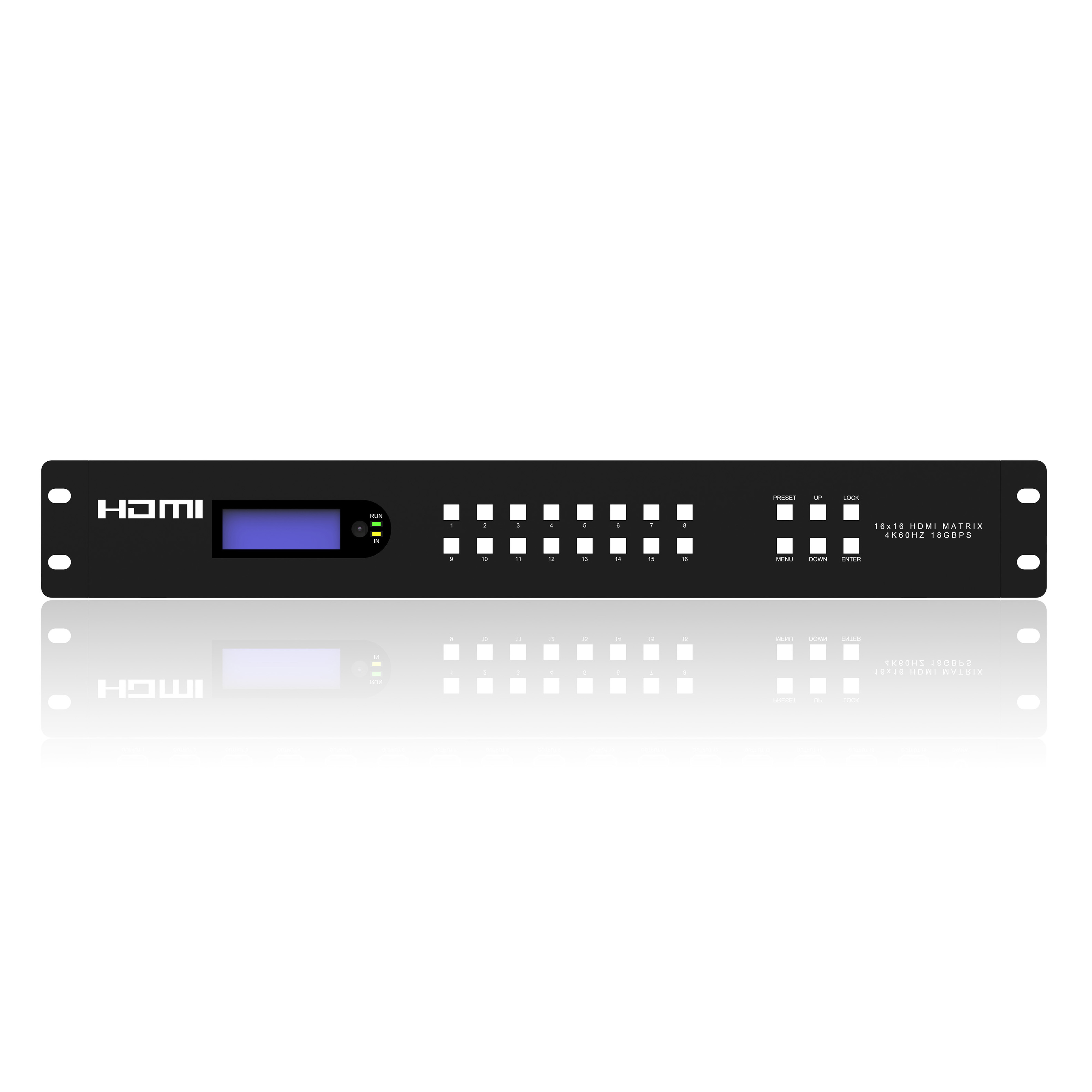

SX-MX16B is HDMI Matrix 16x16 to connect up to sixteen HDMI Sources and independently route and distribute any source to any of the sixteen TVs. This HDMI matrix transmits all HDMI resolutions up to 4K 60Hz 4:4:4 with HDCP2.2/HDR. It also supports audio out, Audio in, EDID management
1.16 x HDMI inputs which can be independently routed to 16 x HDMI outputs 2.Supports HDMI 2.0 Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 3.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions 4.16x Audio extraction to S/PDIF Coaxial audio and 16x L/R audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays 5.Control via Push buttons, IR remote, RS-232 control, IP control, Web GUI 6.A 4K video source device can simultaneously display 4K content to 4K monitor and 1080p content to 1080p via downscaling
7.Advanced EDID management & HDCP 2.2 compliant
Box Contents 1x SX-MX16B 2x Mounting ear 1x IR extention 1x Remote control 1x 24V/4A Power Supply 1x CD user manual
1x 3-pin phoenix terminal plug
1x USB2.0 to RS232 upgrade cable

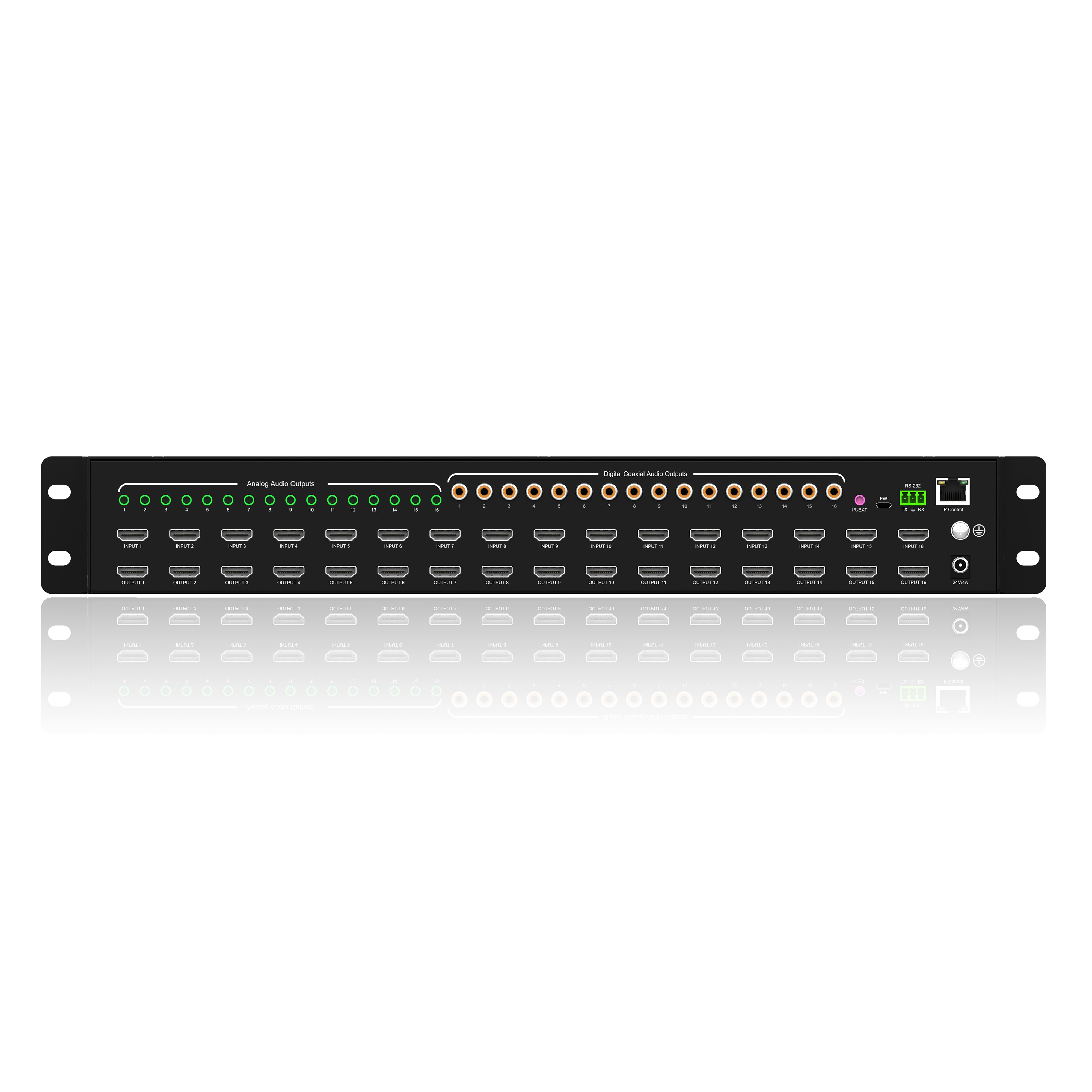

Video Input Connectors: 16 x HDMI Type A, 19-pin, female
Video Output Connectors: 16 x HDMI Type A, 19-pin, female
IR extension: 1 x 3.5mm stereo jack
Audio Output Connectors: 16x SPDIF; 16x 3.5mm stereo jack
RS-232 Serial Port: 1 x 3-pin phoenix connector
TCP/IP Control: 1 x RJ45, female
Dimensions: 438X310X66mm
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 24V4A
Casing Materia: Iron
