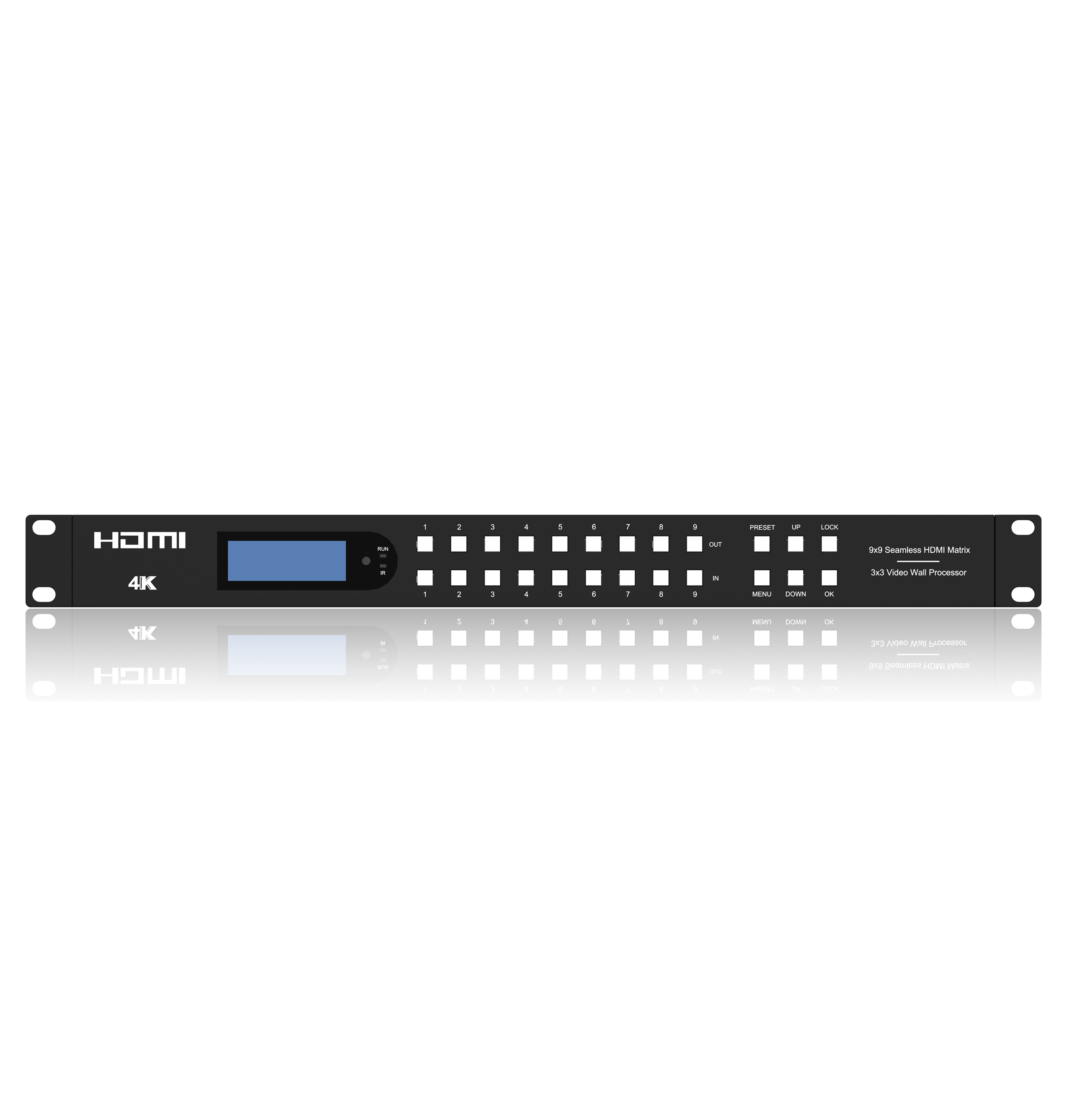

SX-SMX99B is 4K@30HZ 4:4:4 Seamless 9x9 HDMI Matrix with 3x3 video wall which can distributes any nine sources to any of HDMI displays simultaneously with Zero delay and picture loss. It supports videowall upto 3 vertical and 3 horizontal monitors; It can display 9 pictures on the same screen and has multiple split display modes
1.9x HDMI Inputs which can be independently routed to 9 HDMI Outputs. No switching delay or picture loss during transitions 2.Support HDMI Out resolution upto 4K30HZ 4:4:4 3.Supports videowall upto 20 different modes with each monitor with 4K resolution 4.It can display 9 pictures on the same screen and has multiple split display modes
5. 1x balance audio out can extract audio from HDMI ports
6.Control via panel button, Remote Control, RS232 Control, TCP/IP Control
7.Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
8.Advanced EDID management & HDCP 2.2 compliant
Box Contents 1x SX-SMX99B 1x Remote Control 1x 24V/4A Power Supply

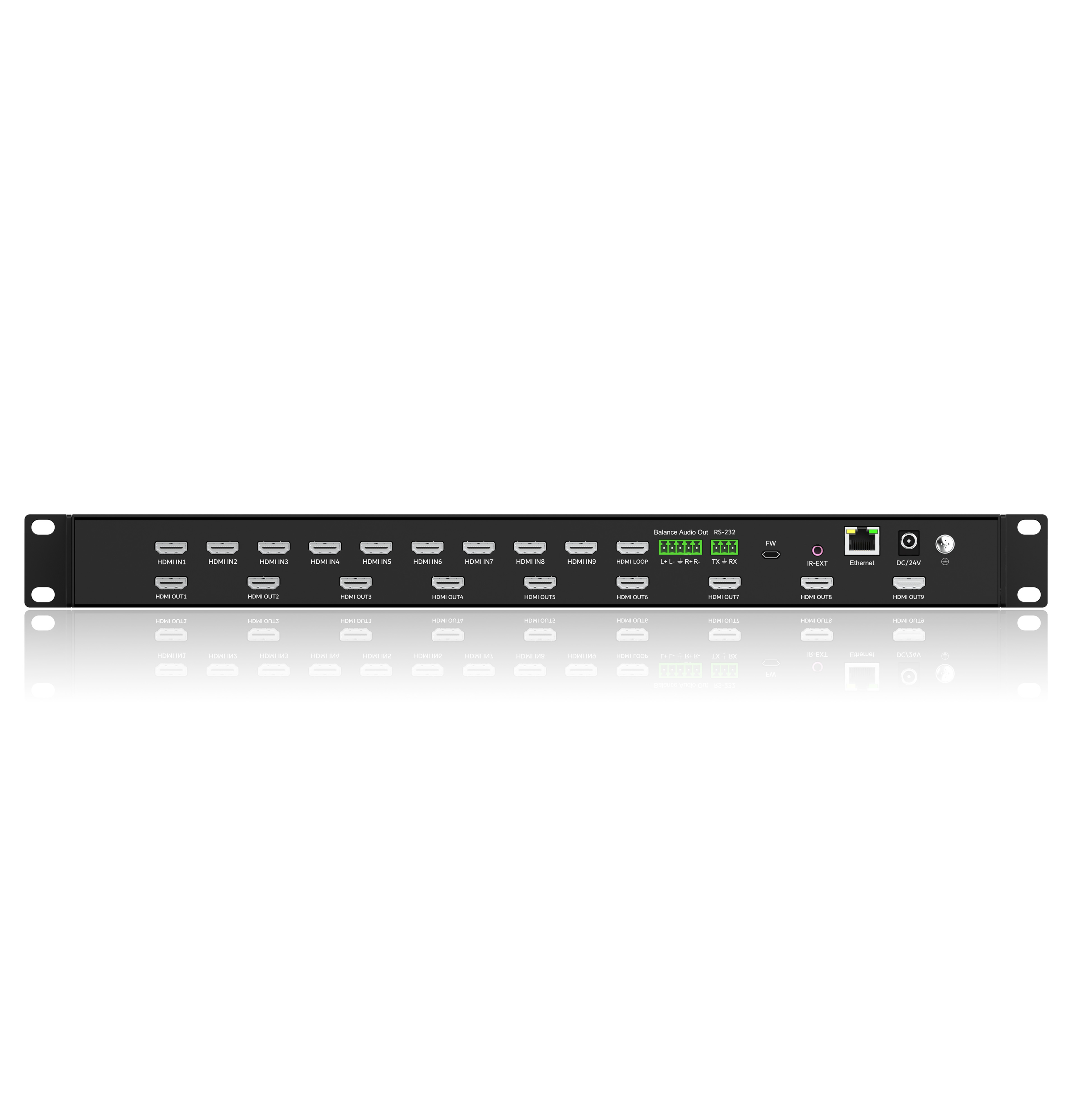

Video Input Connectors: 9 x HDMI Type A, 19-pin, female
Video Output Connectors: 10 x HDMI Type A, 19-pin, female
IR extension: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
Audio Output Connectors: 1x 5-Pin Phoenix connector
Dimensions: 273.7X438X44 mm
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 24V4A
Casing Materia: Iron
