SX-SMX49 is 4K@60HZ 4:4:4 Seamless 4x4 HDMI Matrix with 2x2 video wall which can distributes any four sources to any of HDMI displays simultaneously with Zero delay and picture loss. It supports videowall upto 2 vertical and 2 horizontal monitors ; It can display 4 pictures on the same screen and has multiple split display modes.
It can support Flexible Image Rotation angles (0°,45° 60°, 90°, 180°, 270° 360°) to meet complex installation demands.
1.4x4 HDMI 2.0 Seamless Matrix 3.Supports Resolution up to 4K@60Hz YUV 4:4:4 8bit, bandwidth 18Gbps 4.Seamless matrix mode: 4in 4out seamless switch with no delay and no signal loss 5.Video Wall Mode: 9 different buit-in modes in Preset (1x3/1x4/2x2 etc)
6.Multi-Viewr Mode: Display 4 videos on the same screen and support 12 different built-in modes in Preset
7.Support Analog audio in/Out, SPDIF/Coaxial audio extraction
8.Supports Audio matrix, to switch embedded/HDMI audio fro output independently
9. Supports EDID management
10.Supports videowall rotation from 0-360°
11.HDCP2.2/1.4 compliant

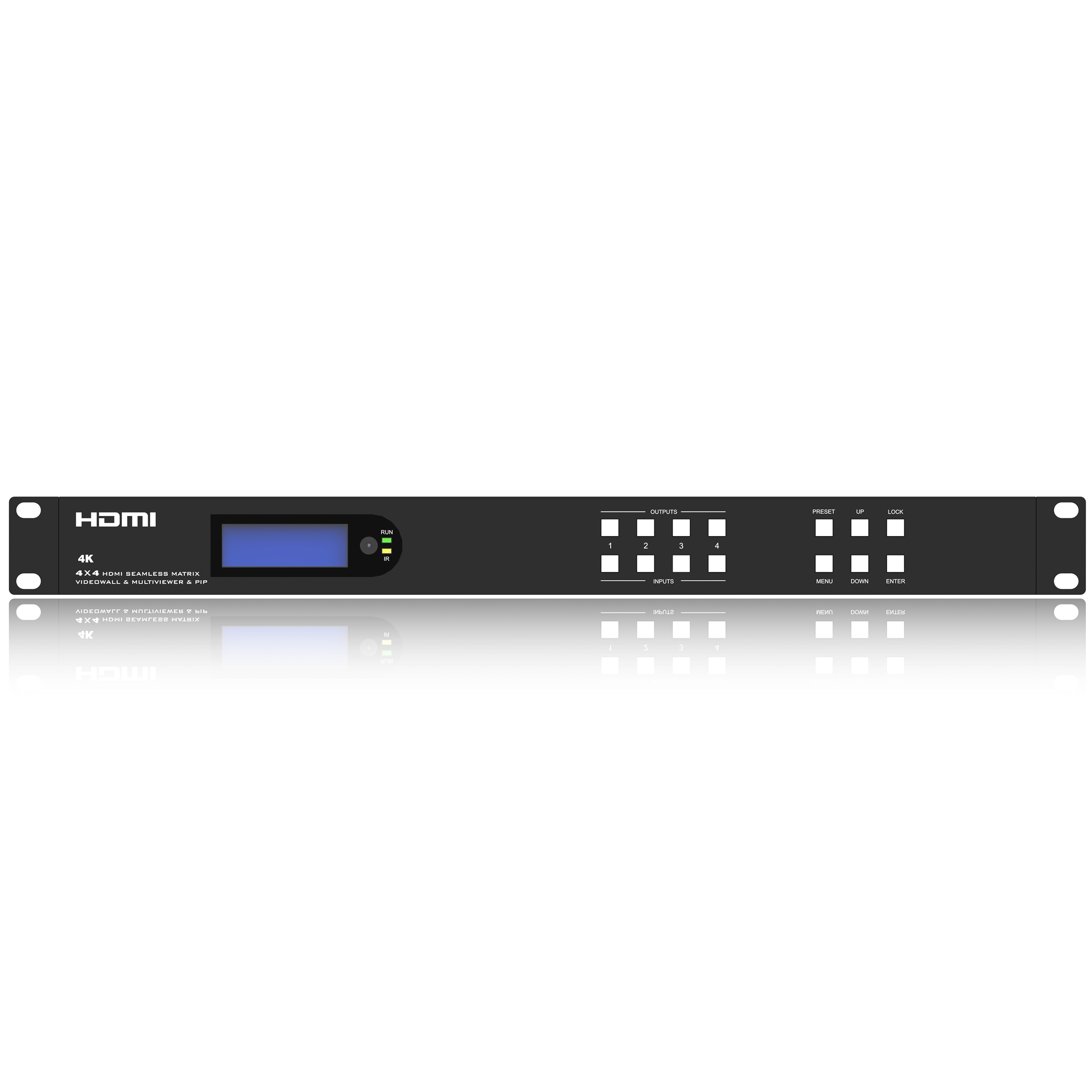

12.Control via Panel button, IR Remote, RS232,TCP/IP
Box Contents 1x SX-SMX49 1x Remote control 1x 12V/4A DC Power Supply
2x Mounting ear
1x3-Pin Phoenix terminal Plug
1x User Manual

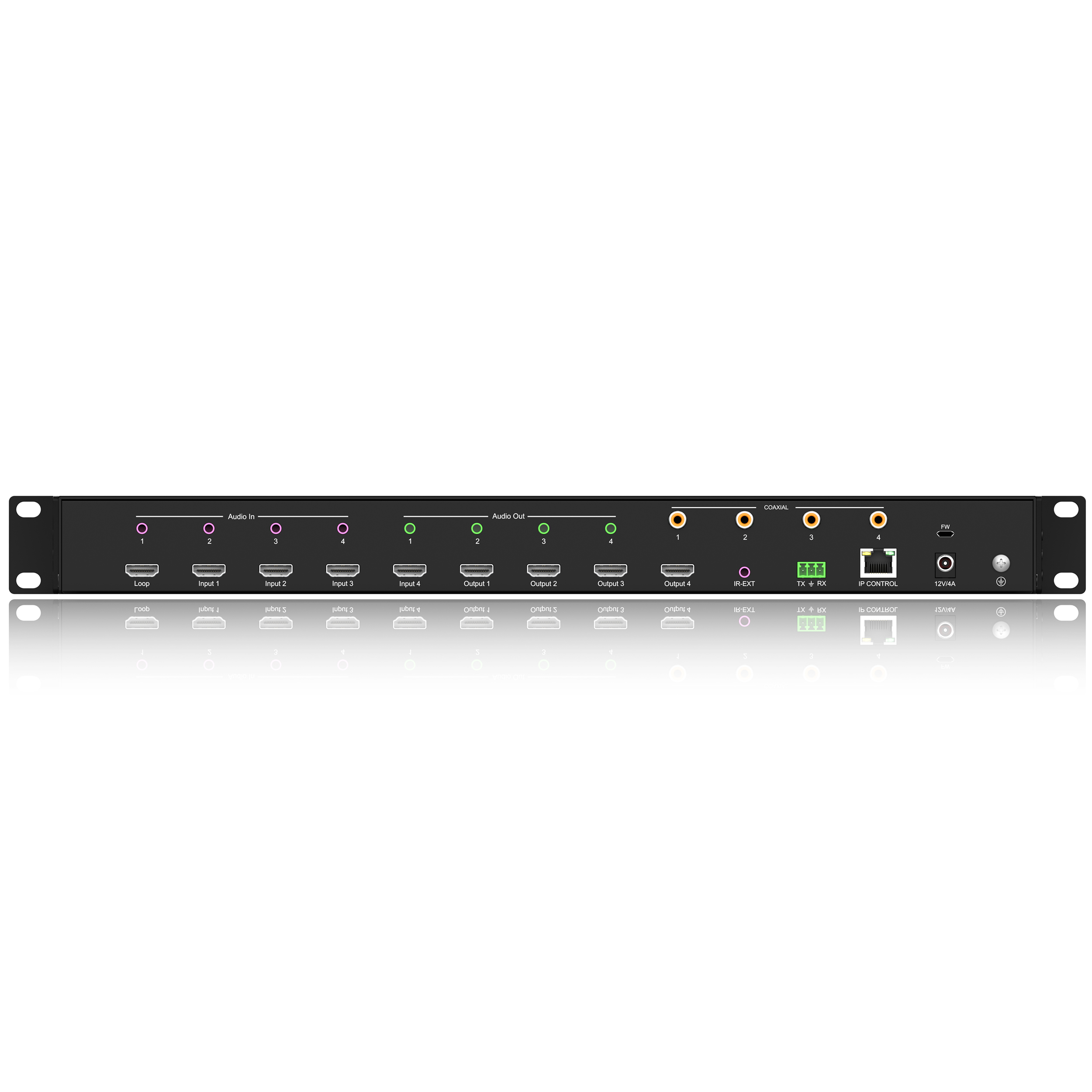

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 4 x HDMI Type A, 19-pin, female
IR extension: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
Audio Output Connectors:4x 3.5mm stereo jack
Audio input Connectors: 4x 3.5mm stereo jack
Dimensions: 438X220X44 mm
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V4A
Casing Materia: Iron
