SX-SPE108 is 8 ports HDMI Splitter with 8 extenders which extends and distributes one HDMI source to eight HDMI displays over CAT cable simultaneously. And it transmit HDMI, Bi-directional IR to lengths of 50m/164ft at 1080P over CAT cable.
1.Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 simultaneously 2.1xlooping HDMI output for cascading multiple device 3.Extends HDMI audio/video signals to synchronous output video display(s), is as fluent as direct connection;Supports up to 50m (164ft) at 1080p@60Hz with CAT5e/6/7 4.With Bi-Direction IR control (38 ~ 56 kHz) to remotely contol a midia palyer/device from TV side or control a TV from the device side 5.Supports Dolby TrueHD, DTS-HD Master Audio 6.Support HDCP1.4 compliant 7.Advance EDID management
8.Compatible with Foxun Receivers: SX-EX21B-RX
Box Contents 1x SX-SPE108 1x 12V/3A DC Power Supply 1x IR emitter 1x IR receiver 2x Mounting ear 1x User manual
Video Input Connectors: 1 x HDMI Type A, 19-pin, female

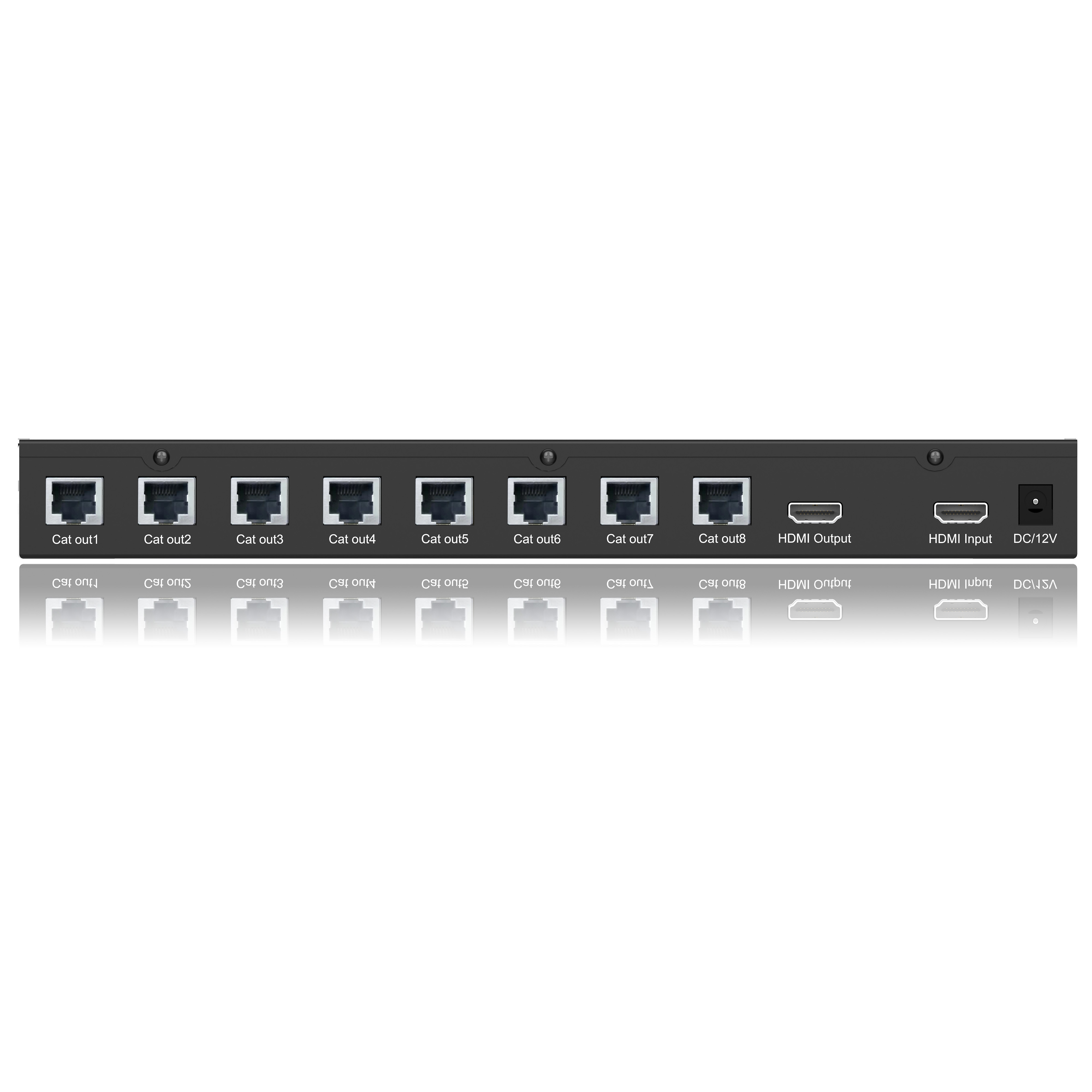

Video Output Connectors: 1 x HDMI Type A, 19-pin, female ; 8 x RJ45 connector

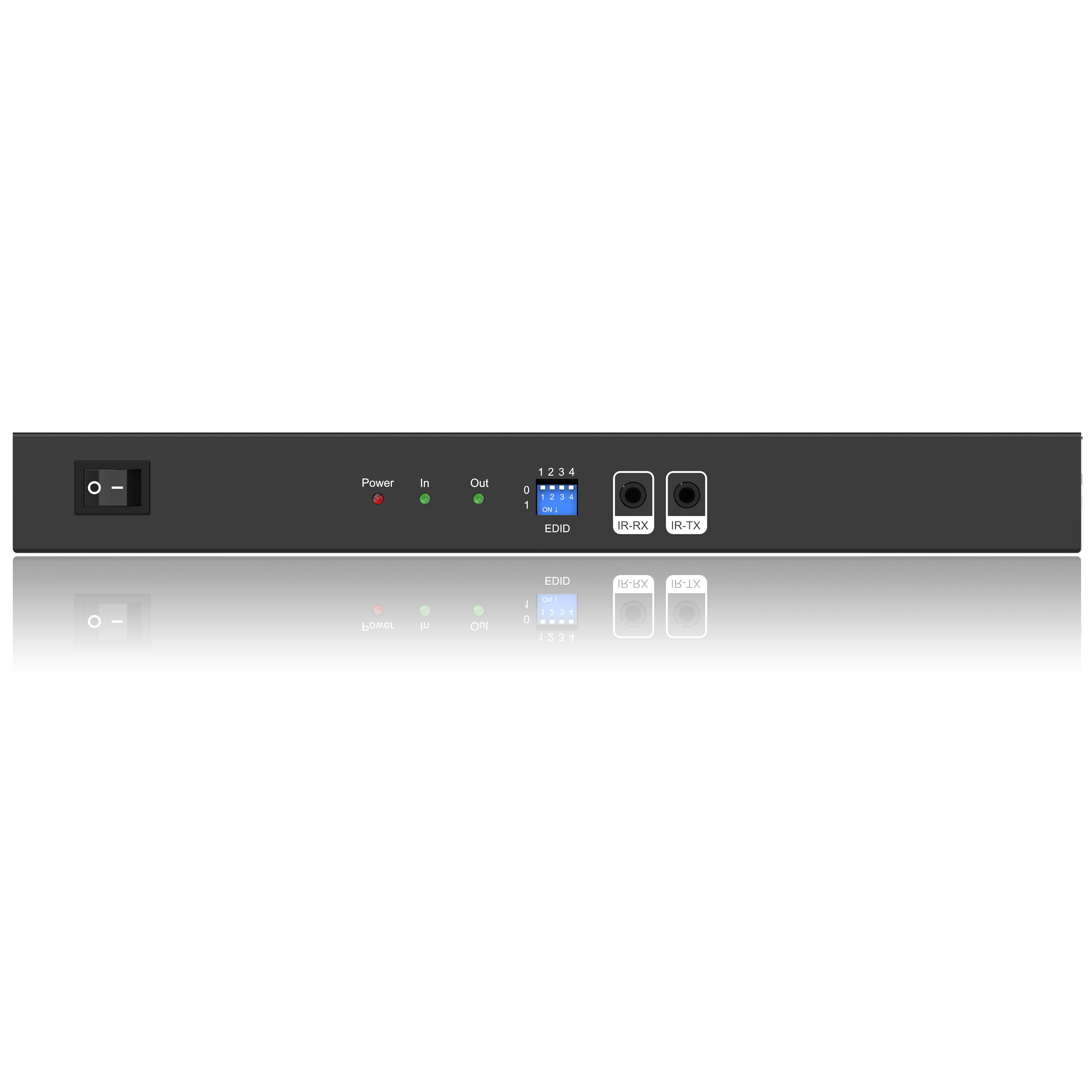

IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Dimensions: 297.4x135.2x33.7mm
Shipping weight: 2kg
Operating Temperature: -10℃-40℃(+14-140℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 12V3A
Casing Materia: Iron
