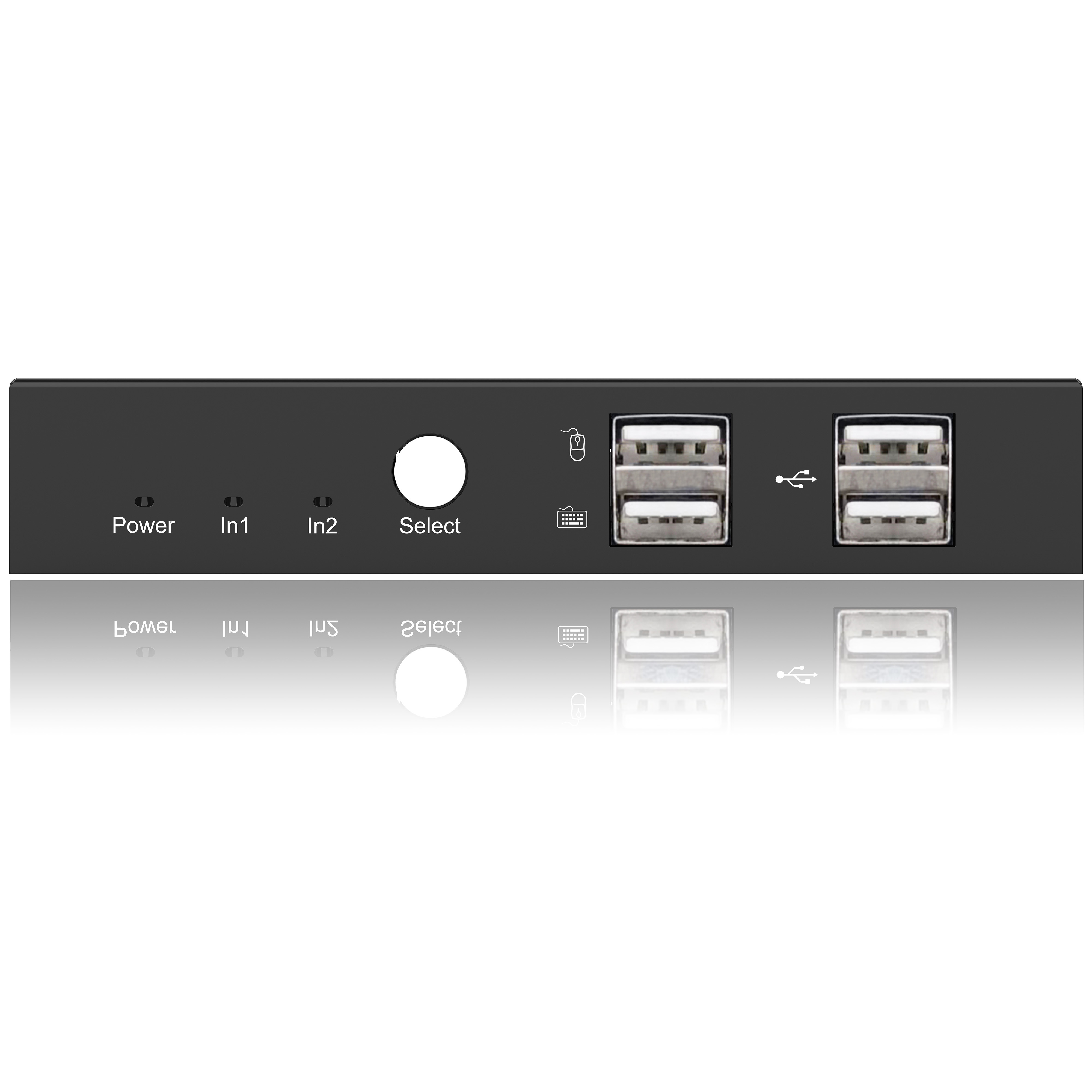

SX-KVM201 is HDMI KVM Switch 2x1 which switches between two computers using one set of keyboard, mouse and monitor console with the added benefit of supporting digital HD video. It has four USB2.0 interface for sharing devices such as printer, scanner, U disk and other USB devices between two computers
1.HDMI input maximum support 4K@30Hz RGB4:4:4, 8 Bit 2.The two USB-TYPE B interface pass through four USB interface to the corresponding host of HDMI signal channel 3.Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream 4.Operating system support WindowsXP/WIN7/WIN10/Apple/Ubuntu,etc 5.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices 6.Support auto switching (monitor the devices in a specified time interval)
7.Support keyboard’s hot keys to control the KVM switch 8.Available to use keyboard and mouse without any delay after switching the host devices 9.Power can be supplied by the USB Type B port 10.Supports HDCP2.2 and HDCP1.4
Box Contents 1x SX-KVM201 1x 5V/1A DC Power Supply 2x Mounting ear 1x User Manual

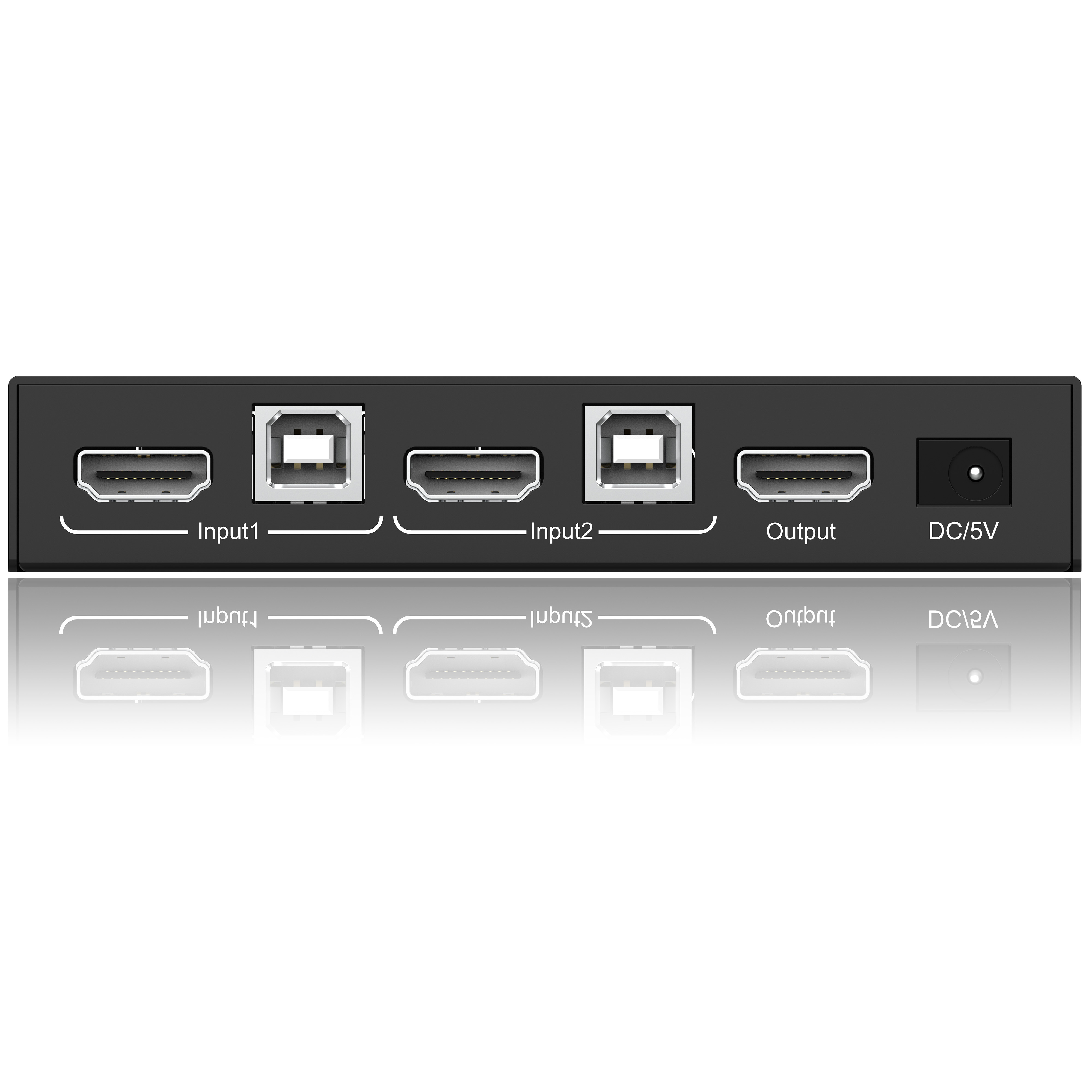

Video Input Connectors: 2 x HDMI Type A, 19-pin, female
Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Dimensions: 120.3*62.5*22mm
USB/KVM Port: 2 x USB Type-B (Host), 4x USB Type-A
Shipping weight: 0.6kg
Operating Temperature: -10 to +45℃(14 to +113℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 5V1A
Casing Materia: Iron
