SX-MVS02 4K seamless HDMI switch with multi-viewer is a device to switch between four sources to one display without signal loss and delay. It can display 4 pictures on the same screen and has multiple split display modes.

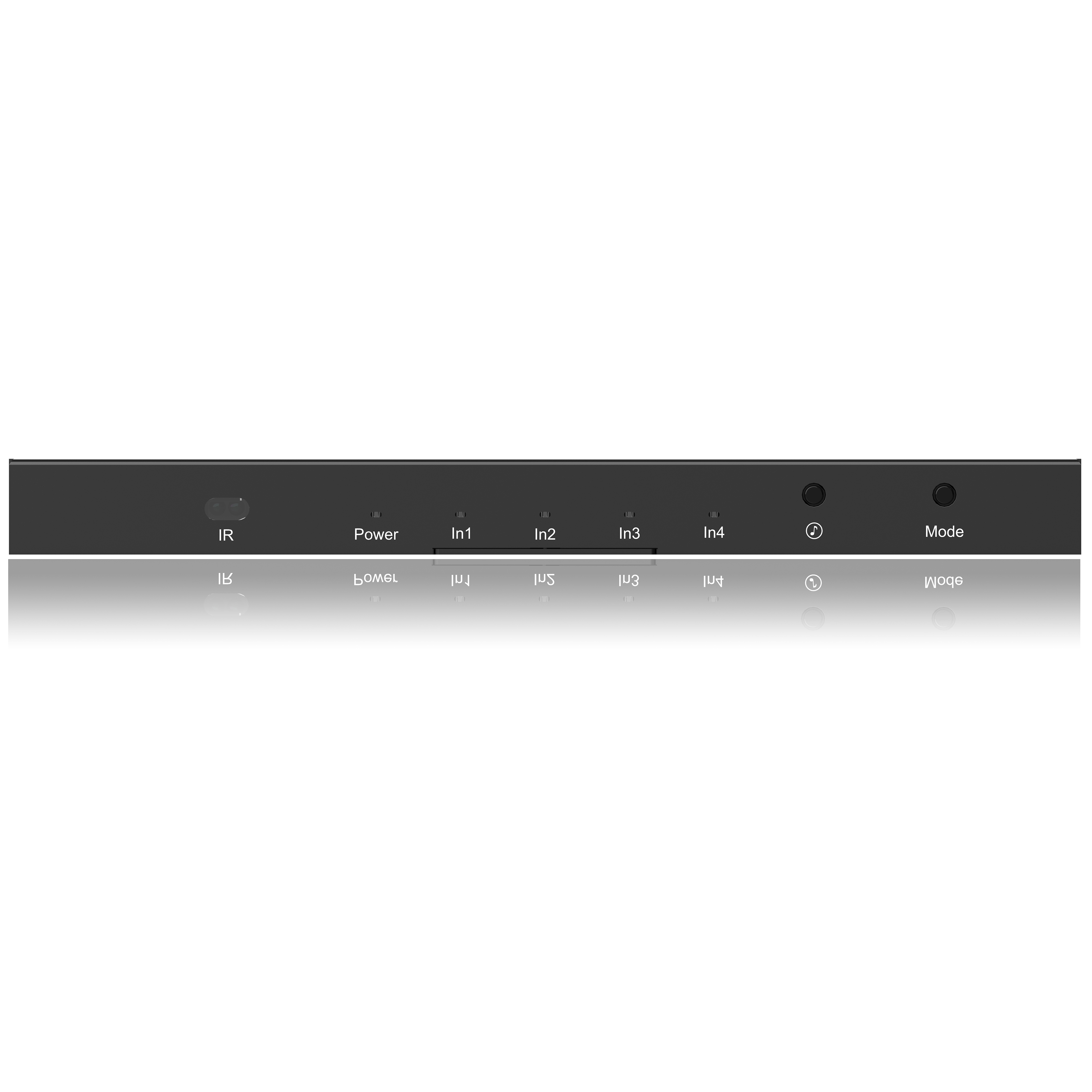

1.Support 4 channels HDMI signal screen segmentation; Four frames can be combined into more than ten modes 2.Support 4 channels HDMI signal seamless switching 3.Support Audio Switching 4.Resolution up to 4K30Hz YUV4:4:4 5.Support IR control and Panel Button Control
6.Supports maximum audio sampling rate of 48kHZ
Box Contents 1x SX-MVS02 2x Mounting ear 1x User manual 1x 12V/1A DC Power Supply

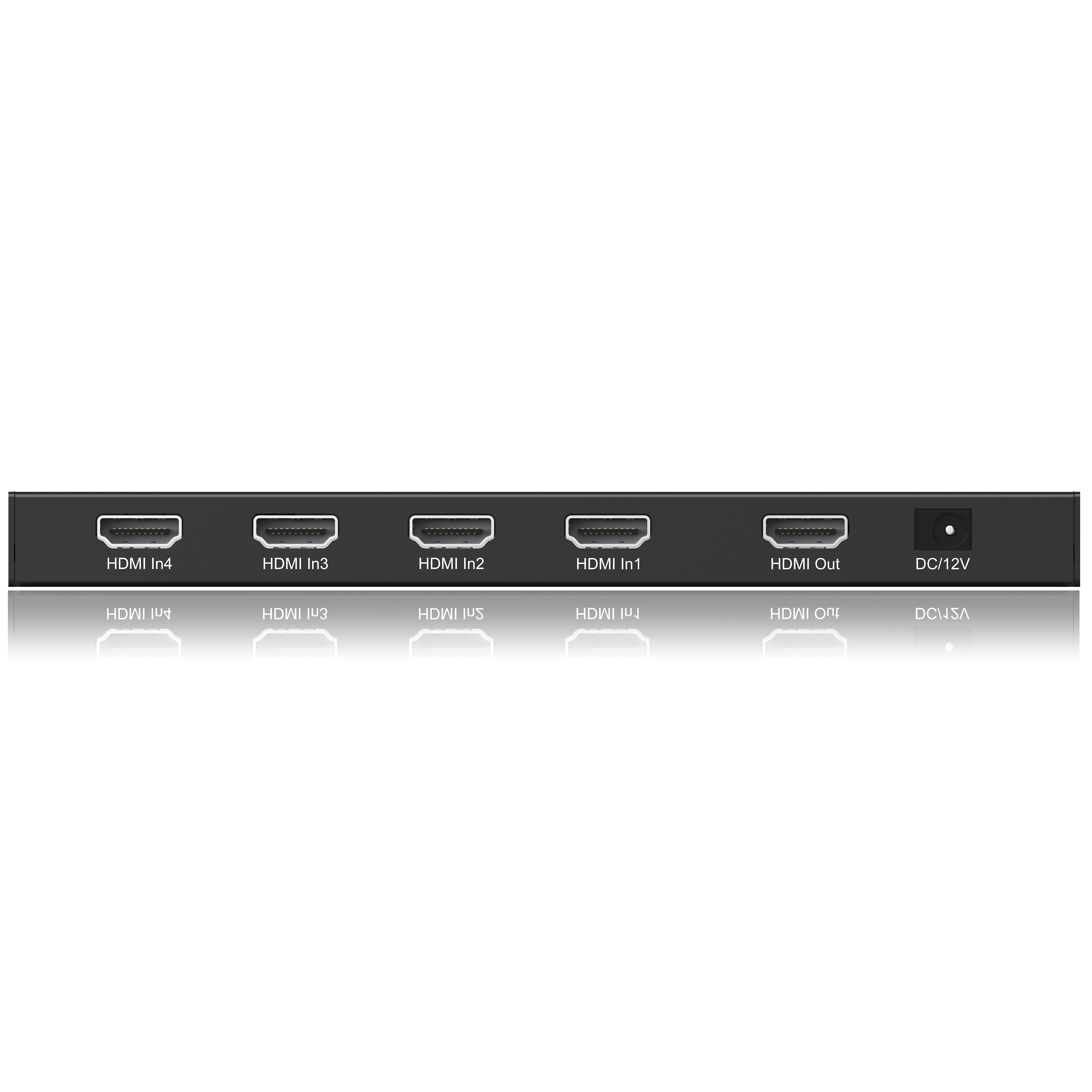

Video Input Connectors: 4 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Dimensions: 190.4x113x17mm
Shipping weight: 1kg
Operating Temperature: 0 to +40℃(32 to +104℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 12V1A
Casing Materia: Iron
