SX-SWE01B 4-Port HDBaseT Switch allows four sources (1x Type-C, 1x VGA, 2x HDMI) to be switched to HDMI/HDBaseT output simultaneously. Connected our model SX-EX53-RX to transmit the A/V signal to be 70m@1080P, 40M@4K60HZ 4:4:4. It supports Audio extraction and Audio Mixing
1.2 x HDMI ,1 x Type-c, 1x VGA inputs which can be switched to simultaneous HDBaseT and HDMI outputs 2.Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable 3.2x HDMI inputs support max 4K@60HZ 4:4:4; 1x Type-C input support max 4K@30HZ; 1xVGA input support max 1920X1080 4.1x HDBaseT output can extend HDMI signal up to 70M 1080P, 40M 4K@60Hz from HDBaseT Switch SX-SWE01B to HDBaseT receiver SX-EX53-RX 5.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission 6.Supports PoC when used with compatible HDBaseT receivers 7.Supports analog 3.5mm audio out and Toslink (S/PDIF) digital outputs. Note: One analog 3.5mm audio out is for extracting from VGA port only

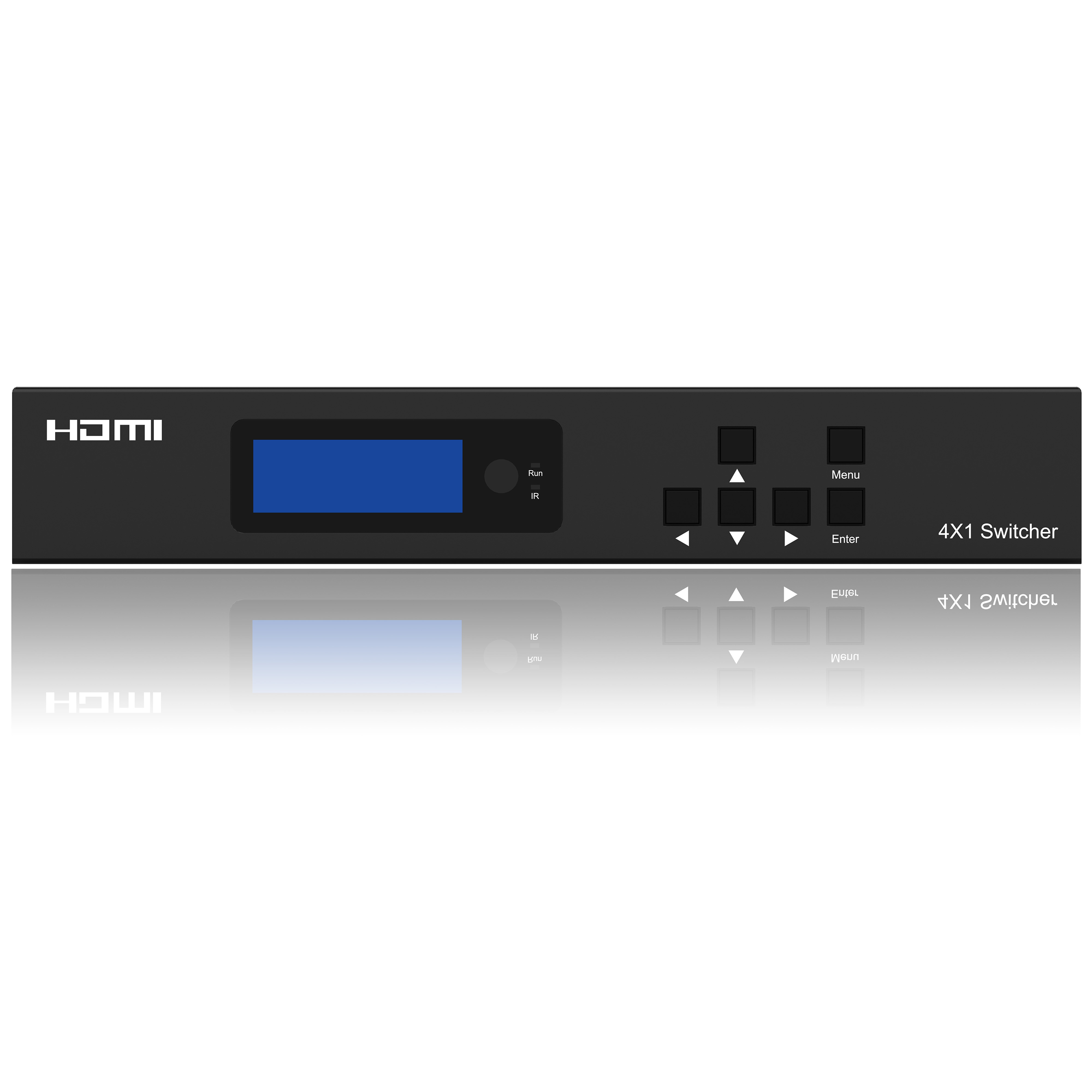

8.Support analog 3.5mm audio in and phoenix MIC In 9.Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC ToolControl 10.HDCP 2.2 compliant with advanced EDID management
Box Contents 1x SX-SWE01B 2x Mounting ear 1x 24V/1A DC Power Supply 2x IR Emitter 2x IR Receiver 1x Remote control 1x CD user manual

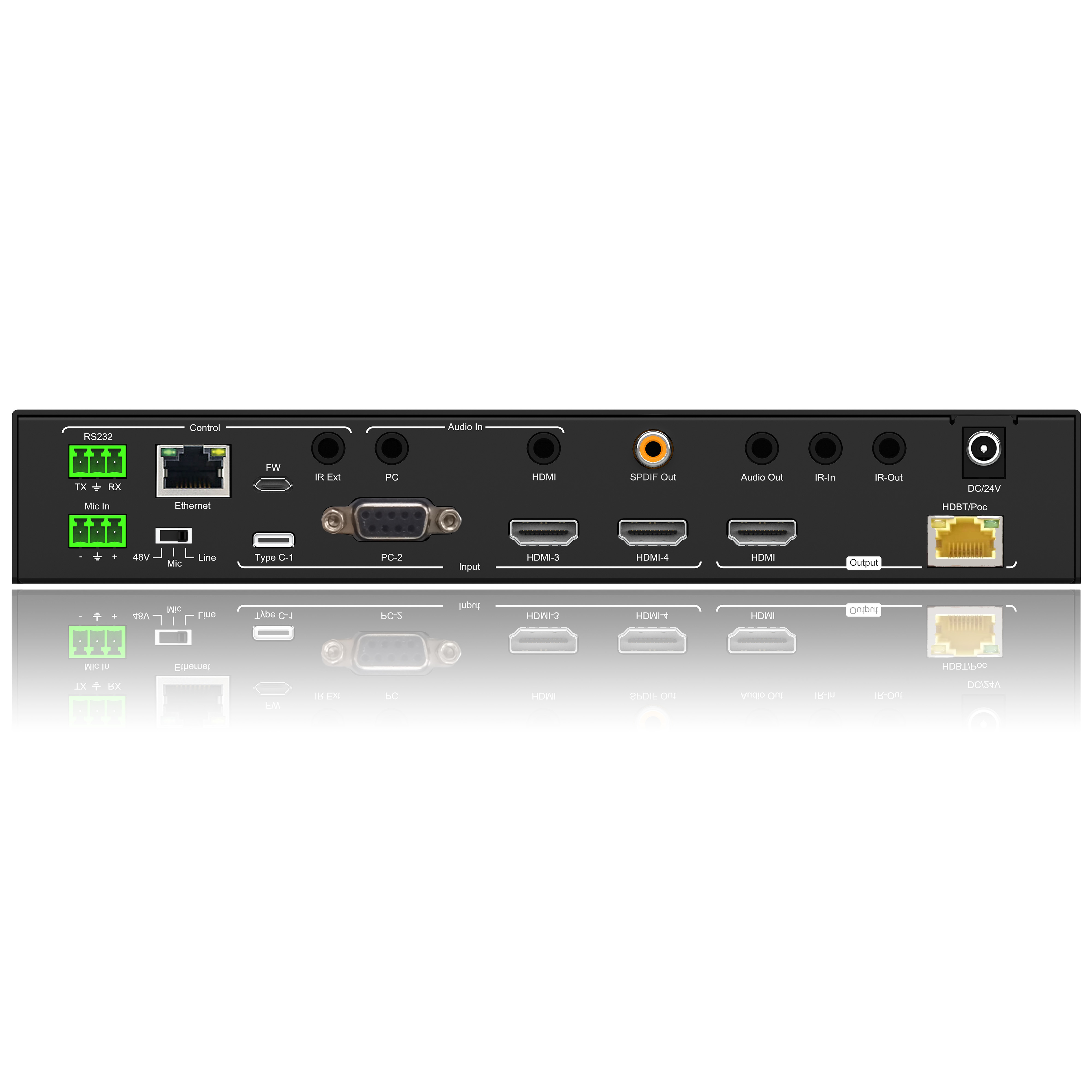

Video Input Connectors: 2 x HDMI Type A, 19-pin, female; 1x Type-c; 1x VGA
Video Output Connectors: 1 x HDMI Type A, 19-pin, female ; 1 x HDBaseT™ RJ45 connector
Audio Input Connectors: 2x Analogue 3.5mm stereo jack
Audio Output Connectors: 1 x Analogue 3.5mm stereo jack ; 1x SPDIF
RS-232 serial port: 2 x 3-pin Phoenix connector
TCP/IP Control: 1x RJ45
IR Input ports: 2 x 3.5mm stereo jack
IR Output ports: 2 x 3.5mm mono jack
Dimensions: 235 x137x39mm
Shipping weight: 2kg
Operating Temperature: -5 to +40°C(23 to +104 °F)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 24V1A
Casing Materia: Iron
