The SX-EX78 can extend USB3.2 Gen1 signals upto 100m over a single CAT cable, data transfer upto 5Gbps,USB2.0/1.1 compatibility. It Supports various operation systems: MAC OS V8.6 and above version, Windows 7/8/10, Linux system.
It also supports HDMI output 4K@60Hz 4:4:4 for displaylink technology.
Apllication of DisplayLink technology in meeting rooms, on the laptop side, the screen video is converted to USB3.2 using a pre-installed software driver. On the remote side, the video stream is converter back from USB3.2 to HDMI, using a DisplayLink ASIC component, which is transmitted to the video screen. At the same time, a camera with a USB3.2 interface transmits video towards the laptop, which also acts as a USB host over the USB3.2 extension link. Video is transferred in both directions.
1.USB3.2 Gen1 upto 5Gbps 2.Transmission distance upto 100m(328ft) with Cat6 cable
3. 1x USB Type-C on Host
4. 2x USB-A and 1x USB Type-C on device,
5. 1x HDMI Output on device for DisplayLink Technology, resolution upto 4K@60Hz 4:4:4 6.Compatible with USB2.0/1.1 7.Support RS232 transmission
Box Contents 1x SX-EX78 1x 12V/3A DC Power Supply 1x User Manual

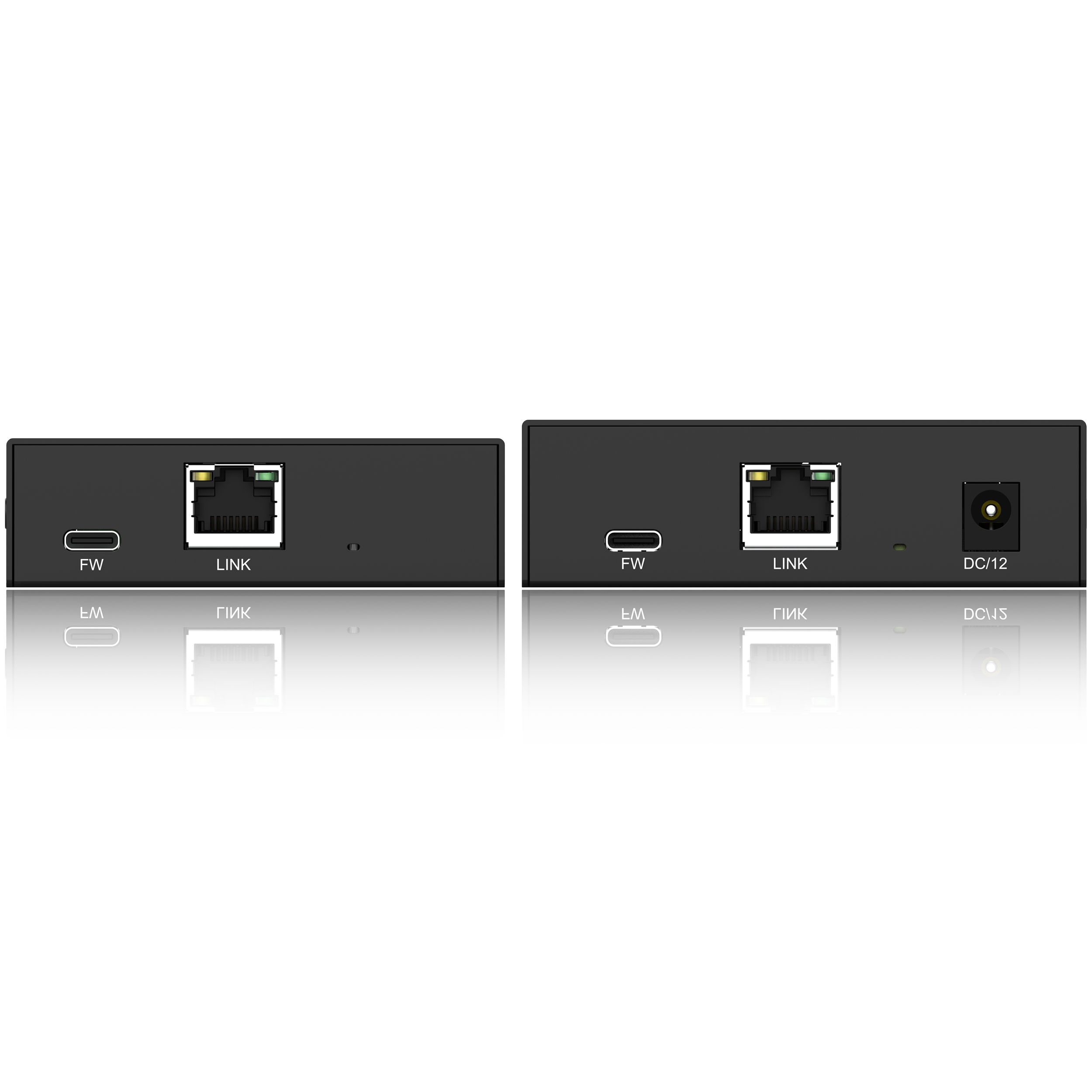

Input Connectors: 1 xUSB Type-C; 1x RJ45 connector

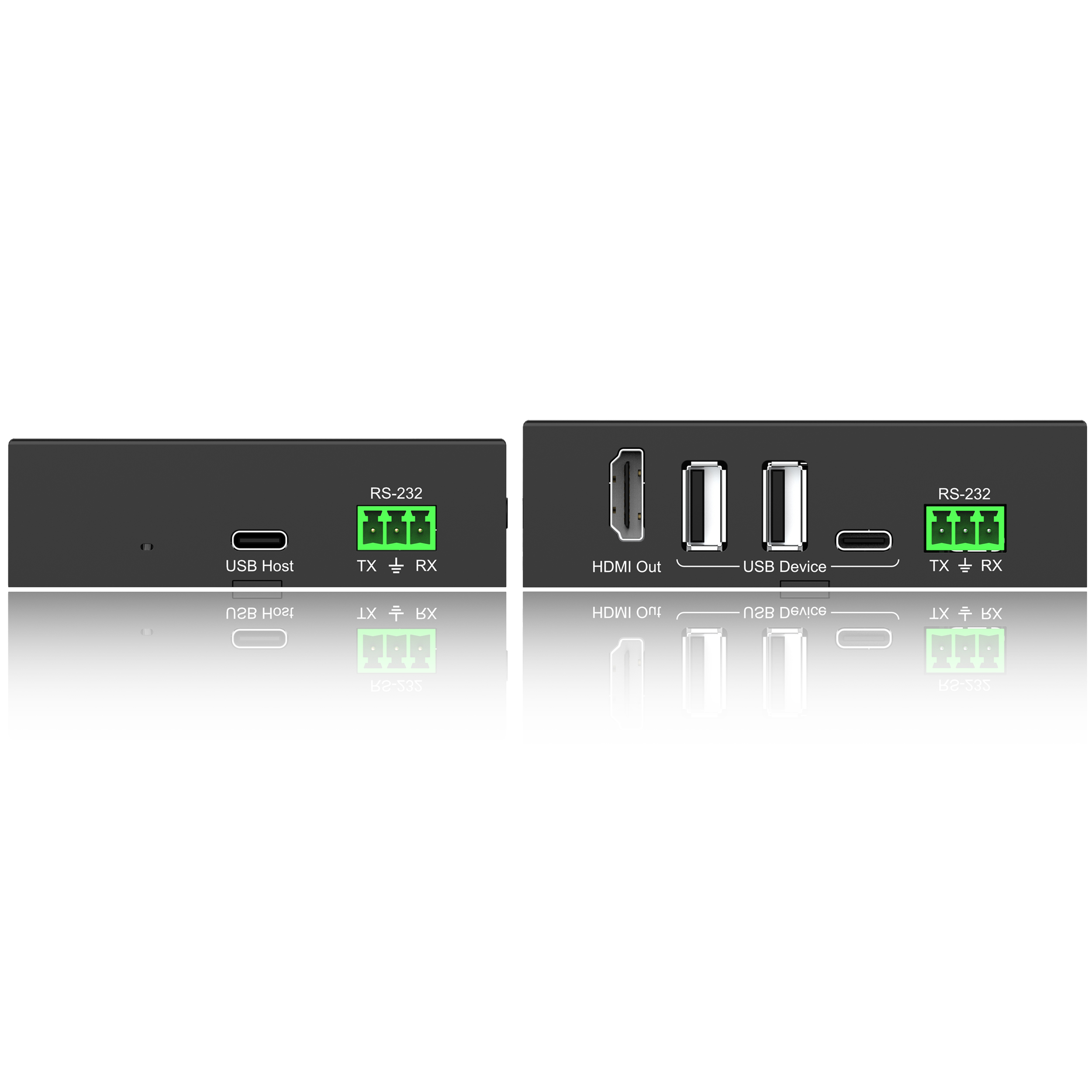

Output Connectors: 2 x USB3.0 TypeA; 1x USB Type-C;1 x RJ45 connector; 1 x HDMI Type A, 19-pin, female
RS-232 serial port: 2 x 3-pin Phoenix connector
Power Supply: DC 12V/3A
Casing Materia: Iron
