SX-EX22 is HDMI via Ethernet/IP extender that uses MJPEG techonlogy to deliver HDMI, Bi-directional IR to lengths of 120m over 100Mbps network. It supports one to one(Unitcast) / one to many (multicast) / many to many (multicast)
1.Can be connected through a network IP switch or point-to-point 2.Apply M-JPEG technique to process image compressing, and with no image quality loss 3.Extends HDMI up to a distance of 120m over a single CAT cable 4.Supports unicast transmission over unmanaged networks 5.Supports multicast transmission for large managed networks 6.Supports up to 1080p 60Hz 7.HDCP 1.4 compliant with advanced EDID management
8.Supports managed VLAN switches
Box Contents 1x SX-EX22-TX 1x SX-EX22-RX 1x IR Extension 1x IR Extension 1x 5V/1A DC Power Supply 1x 5V/1A DC Power Supply 1x User manual 1x User manual

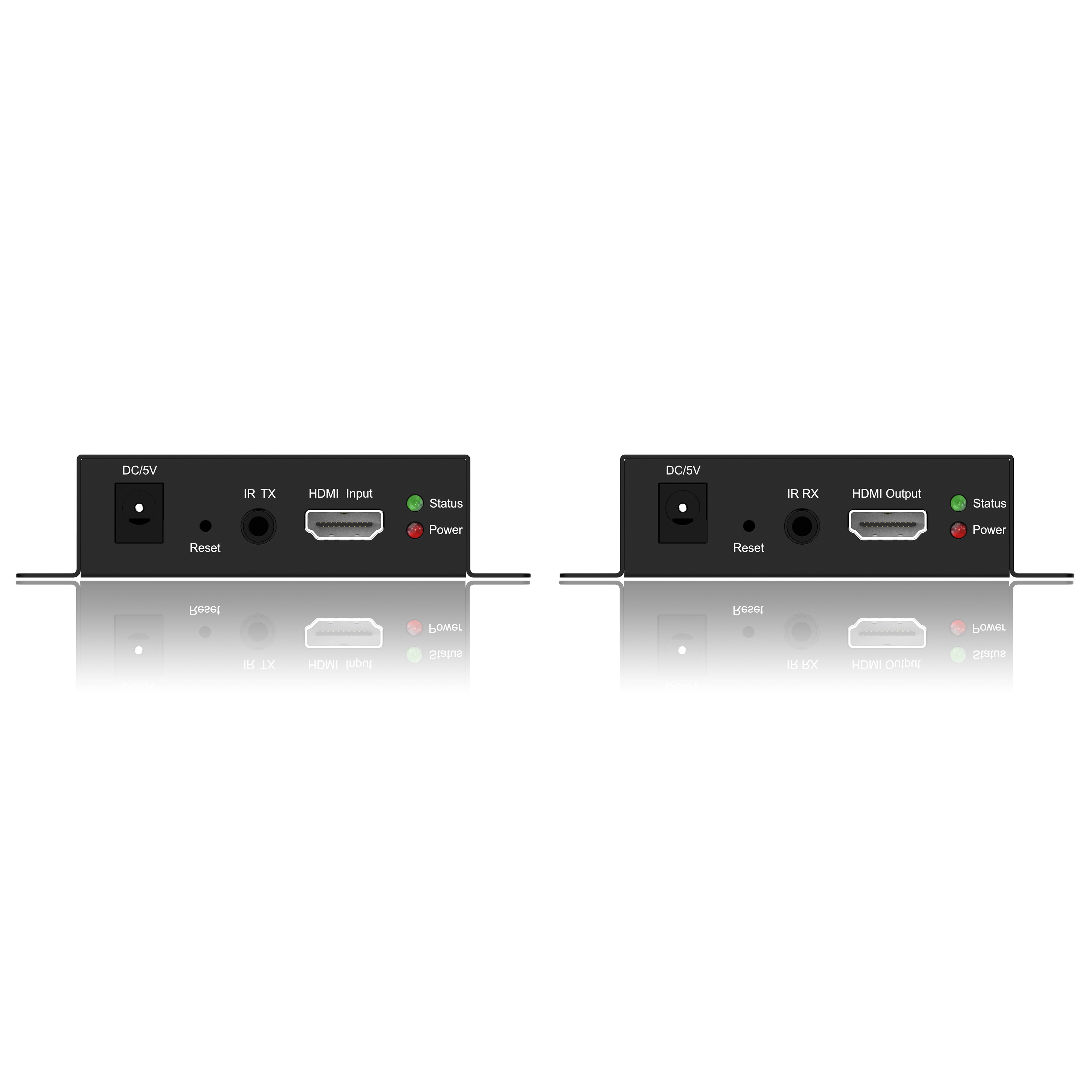

Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45

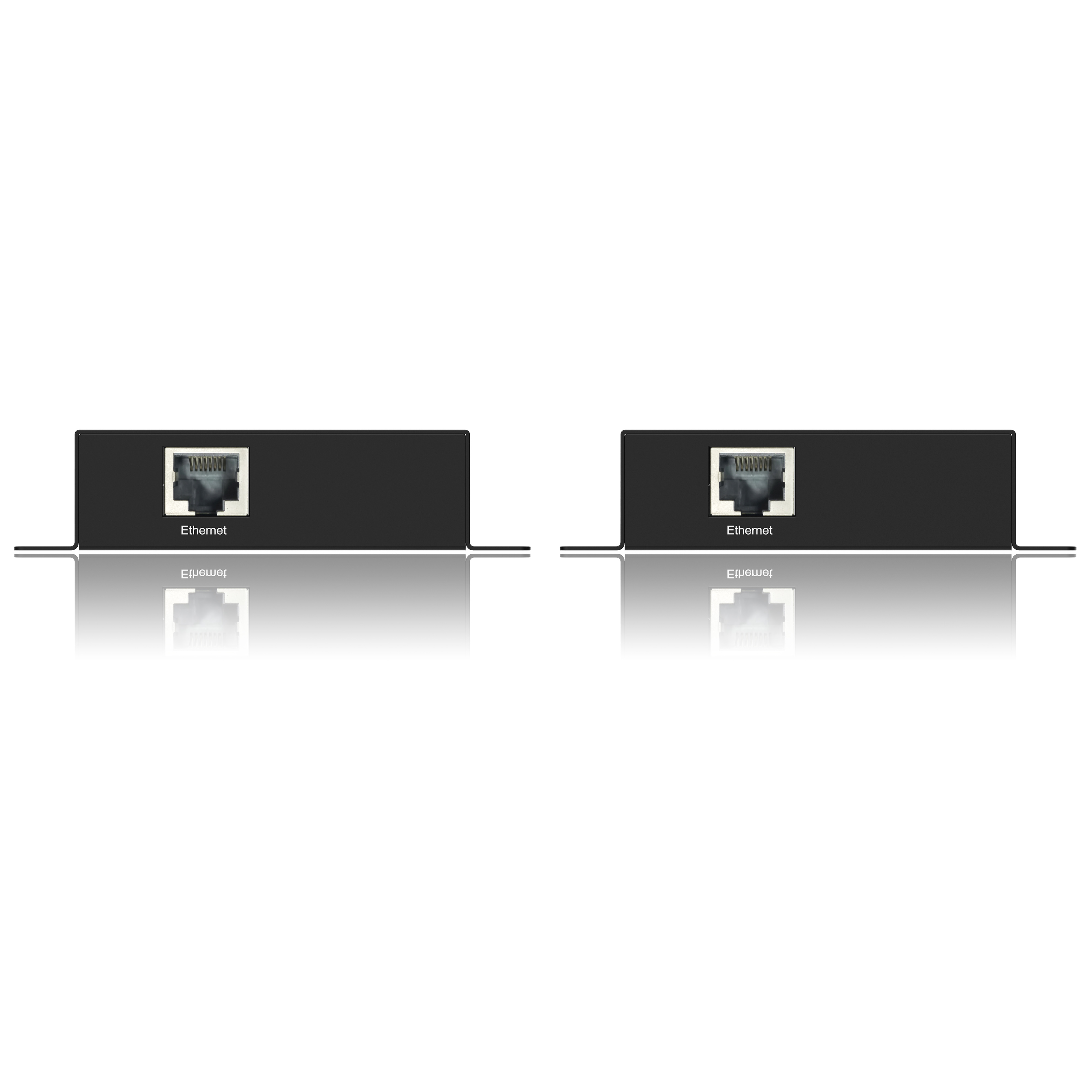

Video Output Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Dimensions: 103.5x93.5x24.6mm
Shipping weight(kit): 1kg
Operating Temperature: -5 to +35℃(+23 to +95℉)
Operating Humidity: 5 to 90%RH (No Condensation)
Power Supply: 5V1A
Casing Materia: Iron
