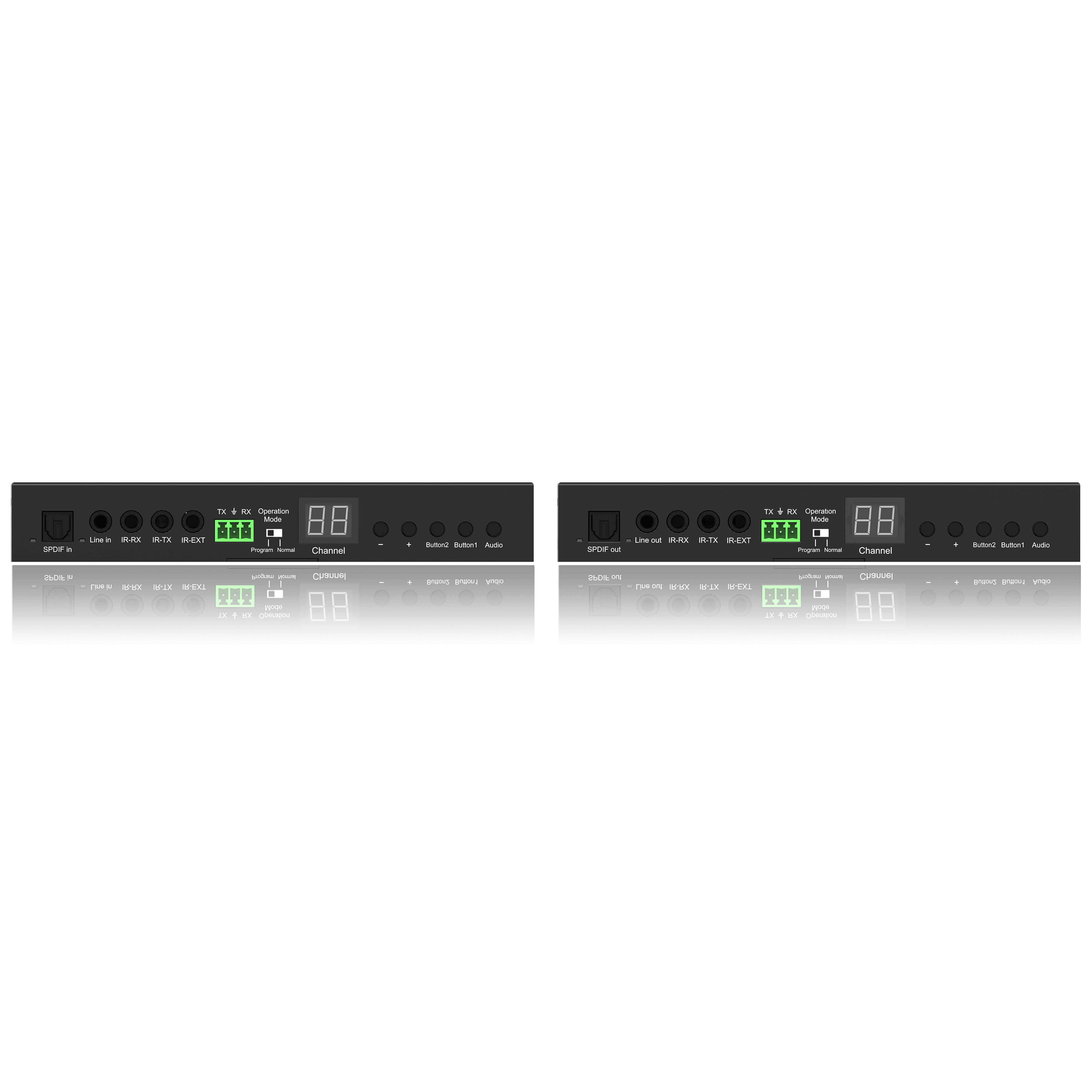

SX-EX57 is a 4K HDMI over IP extender that uses visually lossloss compression techonlogy delivers HDMI,Bi-directional IR, RS232, USB/KVM, Audio up to lengths of 120m over 1GB network. It supports one to one(Unitcast) / one to many (multicast) / many to many (multicast) /Videowall
1.Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension 2.Extends HDMI up to a distance of 120m over a single CAT cable 3.Extends HDMI up to a distance of 300m-60KM over fiber module 4.Supports HDMI Input 4K@60Hz; HDMI output 4K@30Hz 5.Input audio with SPDIF 5.1 and L/R Stereo analog Line mixed 6.Output audio with SPDIF 5.1 and L/R Stereo Analog audio extraction 7.Supports audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission 8.Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
9.HDCP 2.2 compliant with advanced EDID management 10.Support videowall with up to 8 vertical and 16 horizontal monitors 11.Supports IR, RS-232, Webgui, PC Tool control
Box Contents 1x SX-EX57-TX 1x SX-EX57-RX 2x Mounting ear 2x Mounting ear 2x IR Emitter 2x IR receiver 1x IR Extension 1x IR Extension 1x 5V/2A DC Power Supply 1x 5V/2A DC Power Supply 1x 3-pin Phoenix connector 1x 3-pin Phoenix connector 1x CD User Manual 1x CD User manual
Video Input Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45 ; 1x Fiber
Video Output Connectors: 1 x HDMI Type A, 19-pin, female; 1 x LAN RJ45; 1x Fiber
RS-232 Serial Port: 2 x 3-pin Phoenix connector
IR Input ports: 3x 3.5mm stereo jack
IR Output ports: 3x 3.5mm mono jack
USB/KVM Port: 1 x USB Type-B (Host), 2x USB Type-A
Audio Input Connectors: 1x TOSLINK; 1x 3.5mm L/R Stereo analog Line mixed
Audio Output Connectors: 1x TOSLINK1x 3.5mm L/R Stereo analog Line mixed
Dimensions: 170x109x26mm
Shipping weight: 2.5kg
Operating Temperature: -5 to +35 ℃ (+23 to +95℉)
Operating Humidity: 5 to 90 % RH (no condensation)
Power Supply: 5V2A
Casing Materia: Iron
