SX-HC04 is HDMI Audio extractor & Embedder which extracts the audio signal from HDMI signal and sent to a 2-channel stereo analog audio & digital S/PDIF audio. and also inserts external stereo analog audio into HDMI signal
1.Can be configured to work as either a HDMI audio extractor or audio embedder 2.Extracts high quality Stereo Analog audio & Digital S/PDIF (Toslink) audio from the incoming HDMI signal without losing any active audio *Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio 3.Inserts external stereo analog audio into HDMI signal 4.Supports HDMI Input & Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps 5.Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
6.Supports CEC bypass (Consumer Electronics Control) 7.Advanced EDID management & HDCP2.2/1.4 Compliant
Box Contents 1x SX-HC04 1x 5V/1A DC Power Supply 1x User manual
Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female

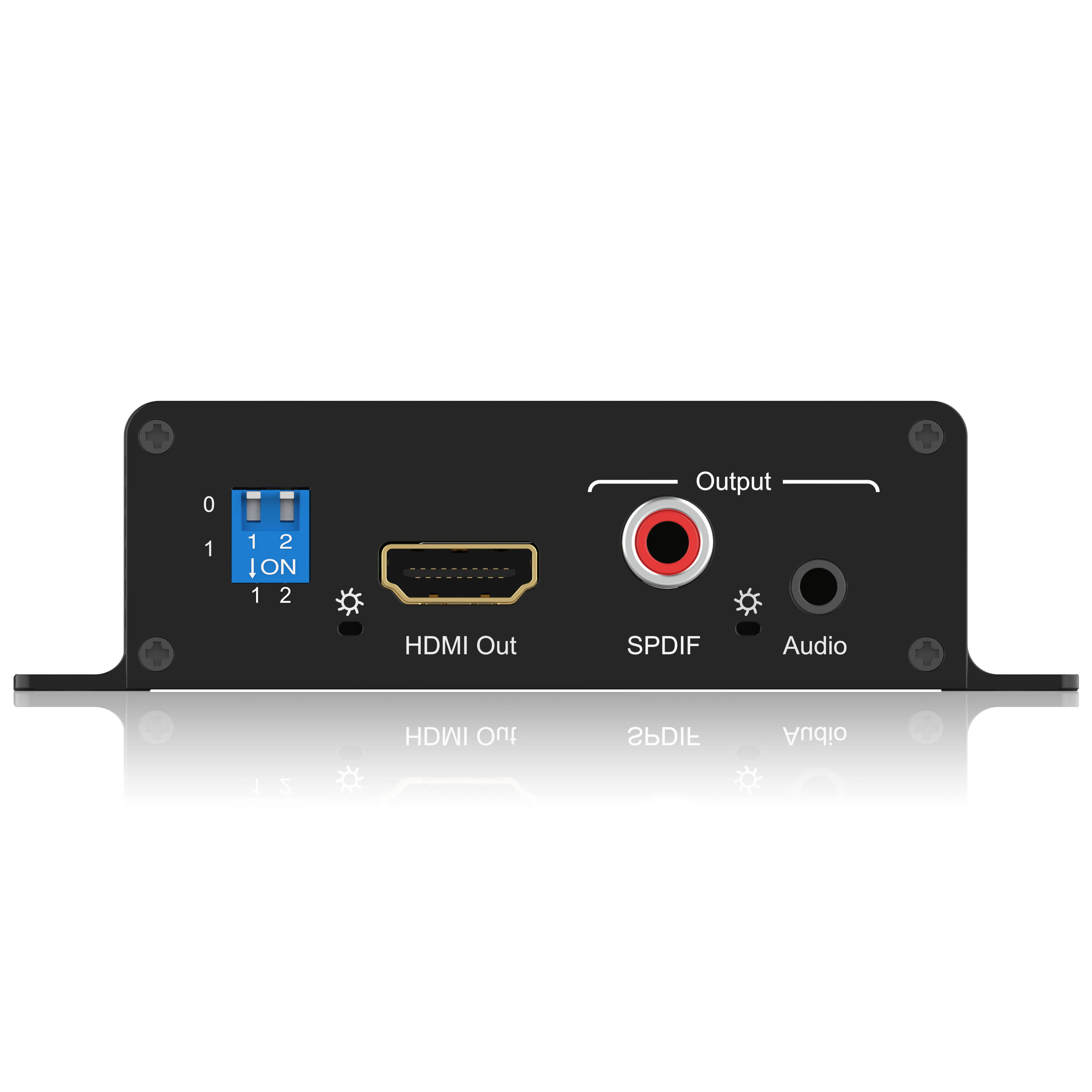

Audio Output Connectors: 1 x Analogue 3.5mm stereo jack ; 1x SPDIF

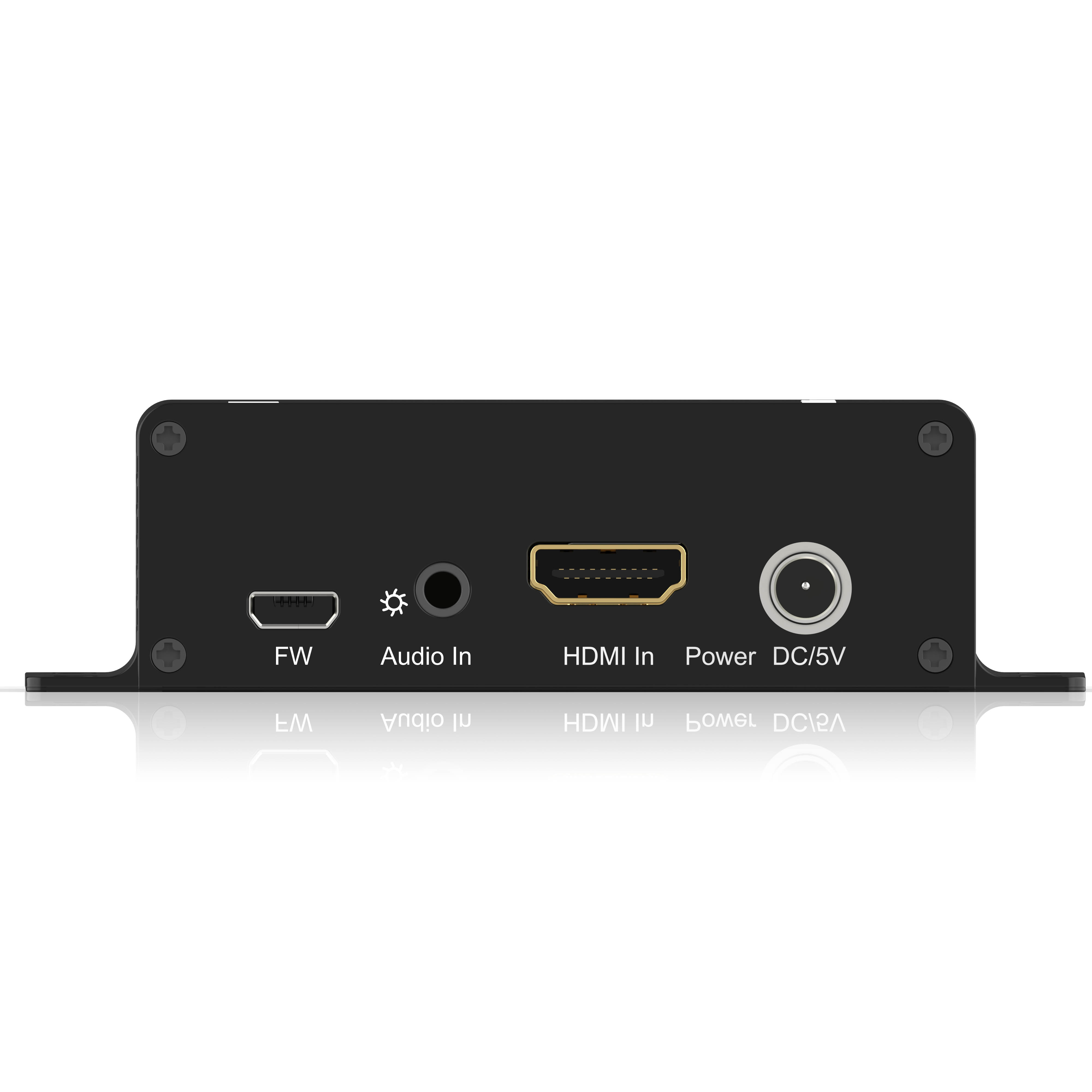

Audio Input Connectors: 1 x Analogue 3.5mm stereo jack
Dimensions: 104.4x89x28.3mm
Shipping weight: 0.5kg
Power Supply: 5V1A
Operating Temperature: -5 to +40°C (23 to +104 °F)
Operating Humidity: 5 to 90 % RH (no condensation)
Casing Materia: Aluminium
